Parts Diagrams |

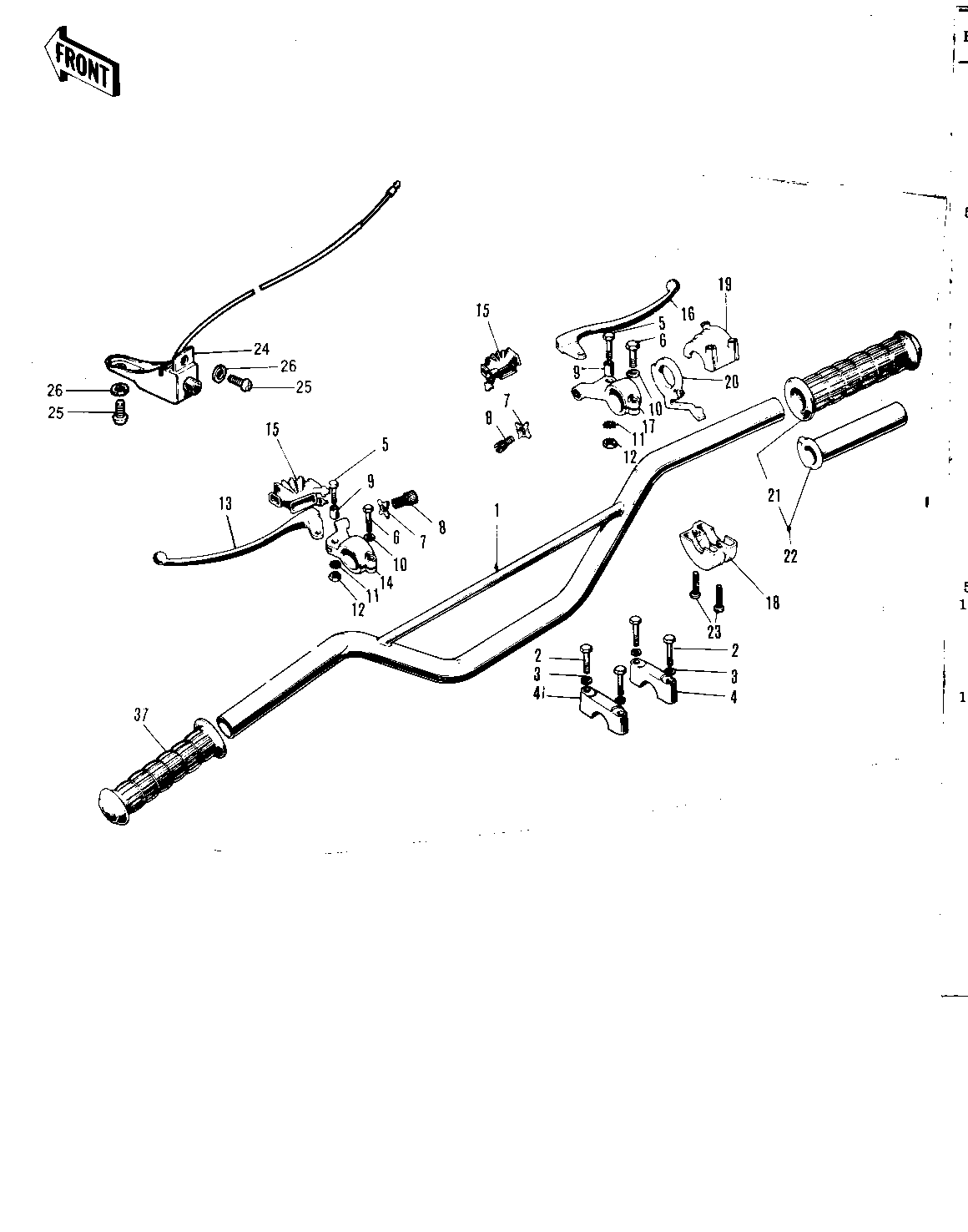

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HANDLEBAR | 1 | 46004-017 | 1 | ||
| BOLT HEX HEAD 8X35 | 2 | 110N0835 | 4 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 4 | ||
| HOLDER-HANDLEBAR | 4 | 46012-008 | 2 | ||
| LEVER ASSY-CLUTCH | 5~15 | 46076-014 | 1 | ||
| BOLT HEX HEAD 5X20 | 5 | 92007-020 | 2 | ||
| BOLT-UPSET | 6 | 112N0620 | 2 | ||
| NUT LOCK ADJUST SCREW | 7 | 46056-001 | 2 | ||
| SCREW CABLE ADJUST | 8 | 46055-003 | 2 | ||
| COLLAR LEVER | 9 | 46059-011 | 2 | ||
| WASHER PLAIN 6MM | 10 | 410B0600 | 2 | ||
| WASHER LOCK 5MM | 11 | 464H0500 | 2 | ||
| NUT 5MM | 12 | 312B0500 | 2 | ||
| LEVER-CLUTCH | 13 | 46092-015 | 1 | ||
| HOLDER,CLUTCH LEVER | 14 | 46094-010 | 1 | ||
| DUST COVER | 15 | 46071-001 | 2 | ||
| LEVER ASSY-FRNT BRAKE | 5~12 | 46021-010 | 1 | ||
| LEVER FRONT BRAKE | 16 | 46058-004 | 1 | ||
| HOLDER-FR BRAKE LEVER | 17 | 46060-006 | 1 | ||
| CASE ASSY-R.H | 18~23 | 46018-019 | 1 | ||
| CASE-R.H LOWER | 18 | 46023-005 | 1 | ||
| CASE-R.H.UPPER | 19 | 46041-005 | 1 | ||
| LEVER-STARTER | 20 | 46096-006 | 1 | ||
| RUBBER-R.H GRIP | 21 | 46061-012 | 1 | ||
| GRIP ASSY-THROTTLE | 22 | 46019-013 | 1 | ||
| SCREW PAN HEAD 5X22 | 23 | 220B0522 | 2 | ||
| SWITCH ASSY-ENG STOP | 24 | 46027-006 | 1 | ||
| SCREW-PAN-HEAD 3X6 | 25 | 220B0306 | 2 | ||
| WASHER SPRING 3MM | 26 | 461F0300 | 2 |
| HANDLEBAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X35 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLEBAR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY-CLUTCH | |
| REF # | 5~15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 5X20 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT LOCK ADJUST SCREW | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW CABLE ADJUST | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR LEVER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 5MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 5MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER-CLUTCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH LEVER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY-FRNT BRAKE | |
| REF # | 5~12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER FRONT BRAKE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-FR BRAKE LEVER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE ASSY-R.H | |
| REF # | 18~23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-R.H LOWER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-R.H.UPPER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-STARTER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER-R.H GRIP | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP ASSY-THROTTLE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X22 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH ASSY-ENG STOP | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-HEAD 3X6 | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 3MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
