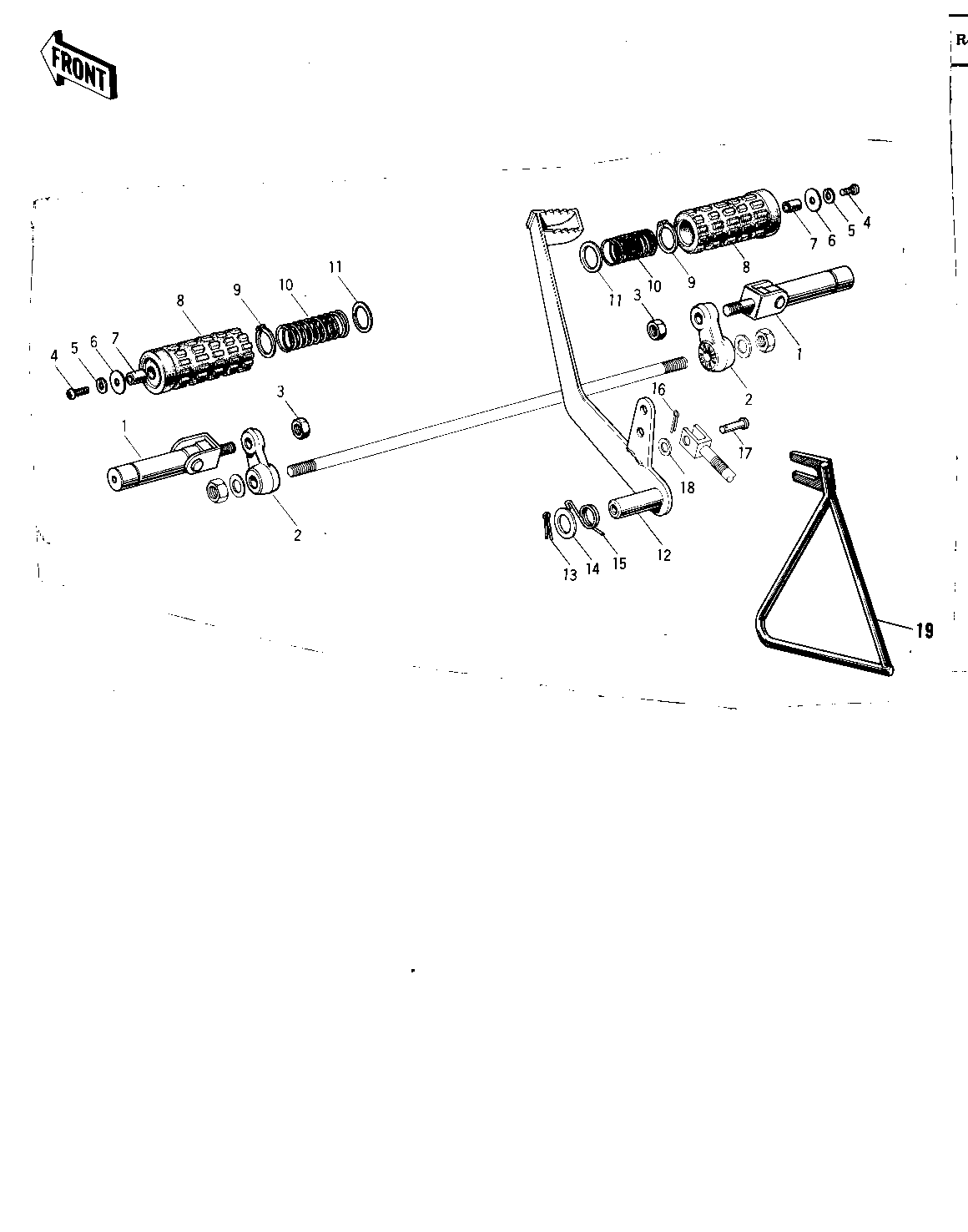

1972 F8-A - FOOTRESTS/STAND/BRAKE PEDAL ('71 F81M)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAR ASSY,FOOTREST | 1 | 34002-051 | 2 | ||
| BRACKET-FOOTREST BAR | 2 | 34007-009 | 2 | ||
| NUT-LOCK,12MM | 3 | 92019-009 | 2 | ||
| BOLT-UPSET | 4 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
| WASHER 6.5X20X1.6T | 6 | 92022-125 | 2 | ||
| COLLAR | 7 | 92027-103 | 2 | ||
| RUBBER-FOOTREST | 8 | 92076-023 | 2 | ||
| CIRCLIP 16MM | 9 | 480J1600 | 2 | ||
| SPRING FOOTREST PEG | 10 | 34006-002 | 2 | ||
| WASHER FOLDING PEG | 11 | 92022-049 | 2 | ||
| PEDAL-BRAKE,BLACK | 12 | 43001-036-10 | 1 | ||
| PIN COTTER 3.0X30 | 13 | 550D3030 | 1 | ||
| WASHER BRAKE PEDAL | 14 | 92022-085 | 1 | ||
| SPRING-BRAKE PEDAL | 15 | 43005-013 | 1 | ||
| PIN COTTER 2.0X15 | 16 | 550D2015 | 1 | ||
| PIN R BRK CABLE JOINT | 17 | 92043-034 | 1 | ||
| WASHER PLAIN 6MM | 18 | 410B0600 | 1 | ||
| STAND-PORTABLE | 19 | 34033-011 | 1 |
