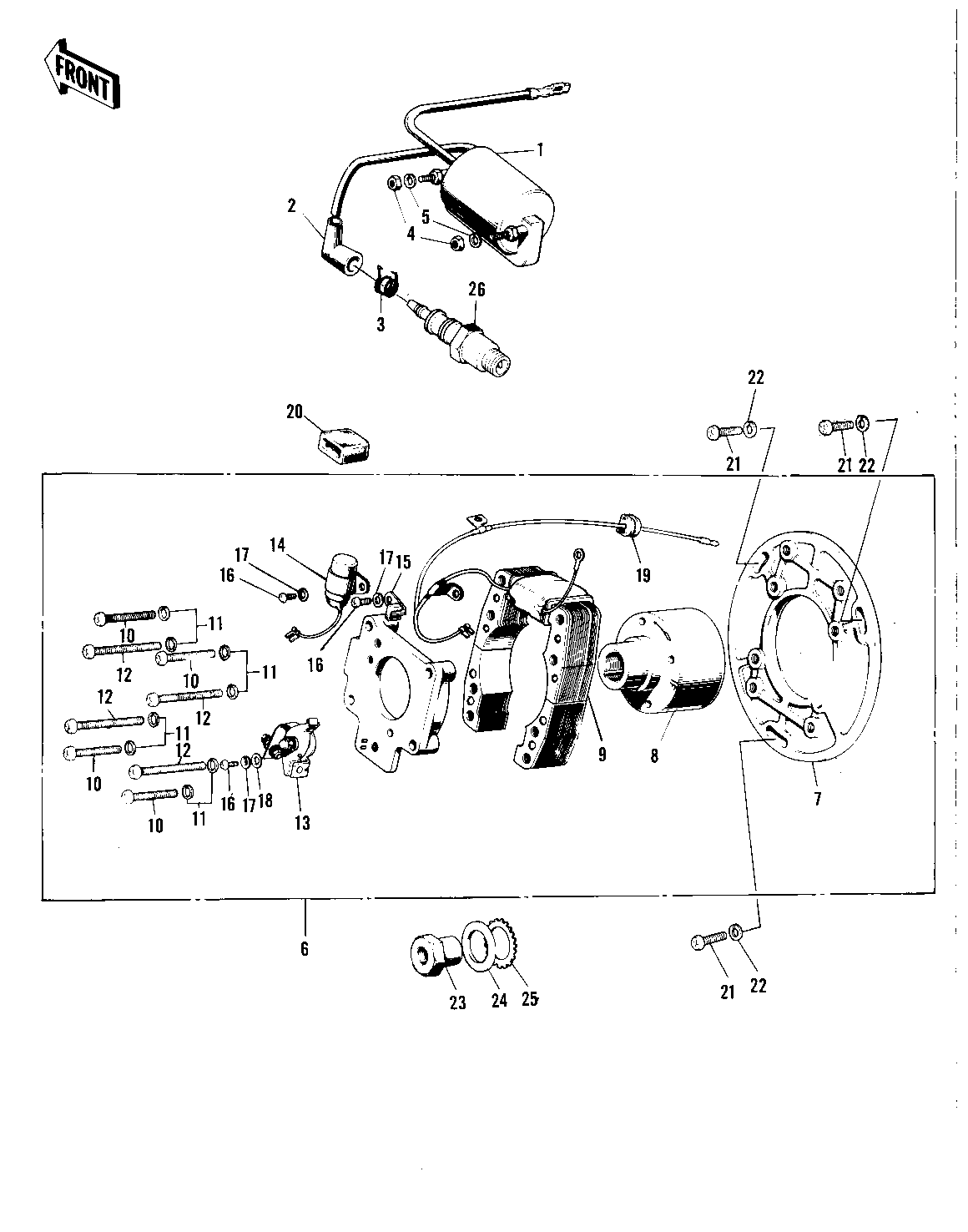

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL-IGNITION | 1 | 21121-042 | 1 | ||
| CAP SPARK PLUG | 2 | 21130-009 | 1 | ||
| SPRING-SPARK PLUG CAP | 3 | 92101-001 | 1 | ||
| NUT 6MM | 4 | 311B0600 | 2 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
| MAGNETO ASSY | 6 | 21002-024 | 1 | ||
| .BASE-MAGNETO | 7 | 21048-012 | 1 | ||
| .ROTOR | 8 | 21007-019 | 1 | ||
| .COIL-PRIMARY | 9 | 21049-014 | 1 | ||
| .SCREW-PAN-CROS | 10 | 220B0535 | 4 | ||
| .WASHER SPRING 5MM | 11 | 461F0500 | 8 | ||
| .SCREW PAN HEAD 5X55 | 12 | 220B0555A | 4 | ||
| .BREAKER-CONTACT | 13 | 21008-019 | 1 | ||
| .CONDENSER | 14 | 21013-024 | 1 | ||
| .FELT OIL | 15 | 21019-005 | 1 | ||
| FELT OIL | 15 | 21019-005 | 1 | ||
| .SCREW PAN HEAD 4X8 | 16 | 21085-004 | 3 | ||
| SCREW PAN HEAD 4X8 | 16 | 220B0408 | 3 | ||
| .WASHER SPRING 4MM | 17 | 461F0400 | 3 | ||
| .WASHER PLAIN 4MM | 18 | 410B0400 | 1 | ||
| .GROMMET WIRING HARN C | 19 | 21017-005 | 1 | ||
| GROMMET | 20 | 92071-048 | 1 | ||
| SCREW PAN HEAD 5X20 | 21 | 220B0520 | 3 | ||
| WASHER PLAIN 5MM | 22 | 410B0500 | 3 | ||
| NUT, 14MM | 23 | 92015-048 | 1 | ||
| WASHER-PLAIN,18MM | 24 | 92022-184 | 1 | ||
| WASHER LOCK 18MM | 25 | 463G1800 | 1 | ||
| SPARK PLUG B9HS | 26 | B9HS | 1 | ||
| SPARK PLUG B9HS | 26 | B9HS | 1 | ||
| SPARK PLUG B9HS | 26 | B9HS | AL | ||
| SPARK PLUG B9HS | 26 | B9HS | 1 |
