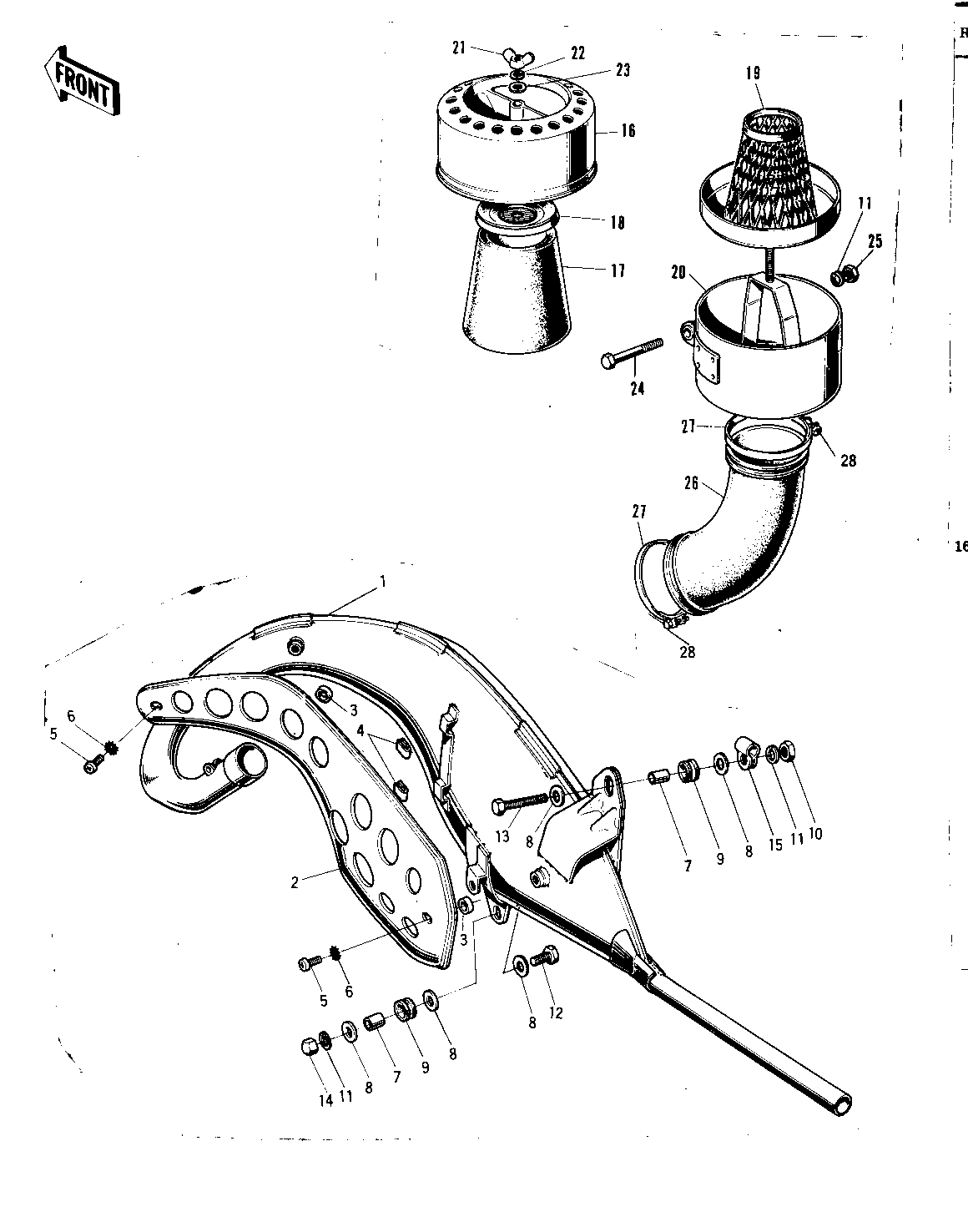

1972 F8-A - AIR CLEANER/MUFFLER ('71 F81M)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MUFFLER ASSY | 1 | 18002-068 | 1 | ||
| COVER-MUFFLER | 2 | 18064-004 | 1 | ||
| INSULATOR HEAT | 3 | 18065-002 | 2 | ||
| INSULATOR | 4 | 18065-007 | 2 | ||
| SCREW PAN HEAD 6X10 | 5 | 220E0610 | 2 | ||
| WASHER LOCK 6MM | 6 | 463H0600 | 2 | ||
| COLLAR | 7 | 92027-102 | 2 | ||
| WASHER,8X26X2.3 | 8 | 92022-1564 | 4 | ||
| DAMPER RUBBER-MUFFLER | 9 | 18063-005 | 2 | ||
| NUT 8MM | 10 | 312B0800 | 1 | ||
| WASHER SPRING 8MM | 11 | 461F0800 | 3 | ||
| BOLT HEX HEAD 8X28 | 12 | 114G0828 | 1 | ||
| BOLT,FLANGED,8X35 | 13 | 92001-1577 | 1 | ||
| NUT FUEL TANK FRONT | 14 | 92020-007 | 1 | ||
| BRACKET,UPPER MUFFLER | 15 | 32069-039 | 1 | ||
| AIR CLEANER ASSY | 16~23 | 11010-038 | 1 | ||
| CAP-AIR CLEANER | 16 | 11012-014 | 1 | ||
| ELEMENT,AIR CLNR,MAIN | 17 | 11013-021 | 1 | ||
| ELEMENT,AIR CLNR,TOP | 18 | 11013-022 | 1 | ||
| WIRE NET-AIR CLEANER | 19 | 11014-002 | 1 | ||
| BODY-AIR CLEANER | 20 | 11011-011 | 1 | ||
| NUT-WING,6MM | 21 | 92015-030 | 1 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 23 | 411B0600 | 1 | ||
| BOLT,EXCLUSIVE | 24 | 92001-1456 | 1 | ||
| NUT 6MM | 25 | 311B0600 | 1 | ||
| CONNECTOR | 26 | 11026-002 | 1 | ||
| CLAMP,AIR CLEANER | 27 | 92037-129 | 2 | ||
| SCREW PAN HEAD 6X30 | 28 | 220B0630 | 2 |
