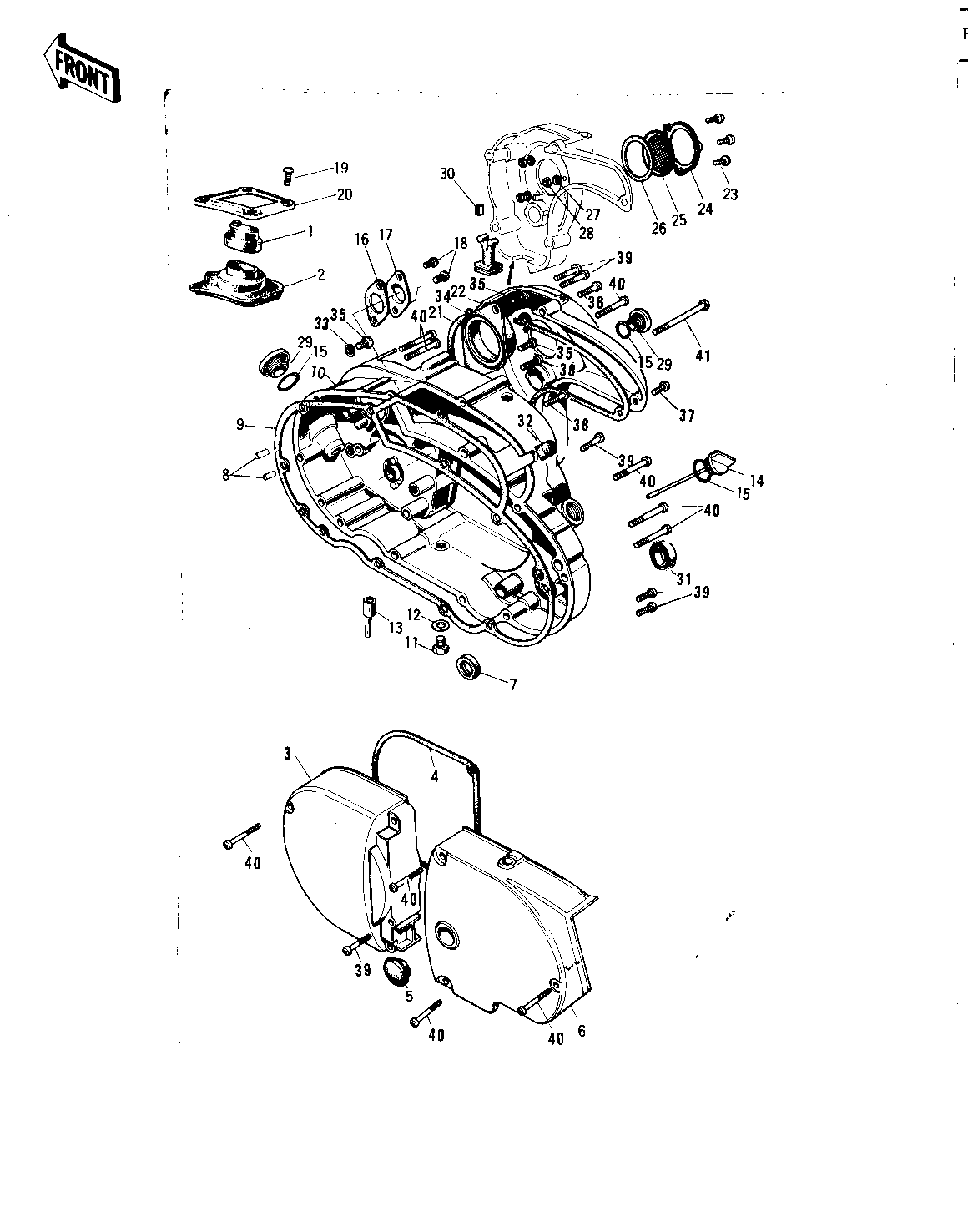

1972 F8-A - ENGINE COVERS ('71 F81M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GROMMET-CARB CAP 1 14038-031 1
CAP-CARBURETOR 2 14038-029 1
COVER,L.H ENGINE,BUFF 3 14031-038-80 1
GASKET-L.H ENG COVER 4 14045-008 1
CAP-CLUTCH HOLE 5 14040-003 1
COVER,CHAIN-CASE 6 14026-005-E8 1
OIL SEAL SB20285 7 92049-012 1
PIN DOWEL 5X12 8 610A0512 2
GASKET-R.H-ENG.CVR 9 14046-020 1
COVER-R.H ENGINE 10 14032-065 1
PLUG OIL DRAIN 11 92067-001 1
GASKET CHECK VALVE 12 92065-058 1
PIPE FUEL OVERFLOW 13 16116-001 1
PLUG-OIL FILLER 14 16115-017 1
"0" RING,20MM 15 670B2020 3
GASKET,OIL PUMP 16 11060-1160 1
PLUG-OIL PUMP-HOLE 17 92084-004 1
SCREW PAN HEAD 5X8 18 220B0508 2
SCREW PAN HEAD 5X12 19 220B0512 4
HOLDER-CARBURETOR CAP 20 14065-001 1
GASKET-CARBURETOR COV 21 14048-002 1
COVER-CARBURETOR 22 14030-031 1
SCREW PAN HEAD 4X16 23 220B0416 3
HOLDER-AIR FILTER 24 14065-003 1
FILTER AIR 25 14063-002 1
GASKET-AIR FILTER 26 92065-074 1
WASHER SPRING 4MM 27 461F0400 3
NUT,4MM 28 311B0400 3
PLUG-CARBURETOR COVER 29 92067-006 2
STOPPER-CARBURETOR 30 14064-001 1
OIL SEAL SB12205 31 92049-004 1
GROMMET 32 92071-047 1
WASHER OIL PUMP BANJO 33 92022-077 1
HOLDER-CARBURETOR 34 16065-005 1
SCREW PAN HEAD 6X12 35 220B0612 3
SCREW PAN HEAD 6X20 36 220B0620 2
SCREW PAN HEAD 6X25 37 220B0625 3
SCREW PAN HEAD 6X30 38 220B0630 2
SCREW PAN HEAD 6X35 39 220B0635 7
SCREW PAN HEAD 6X55 40 220B0655 10
SCREW PAN HEAD 6X70 41 220B0670 1
