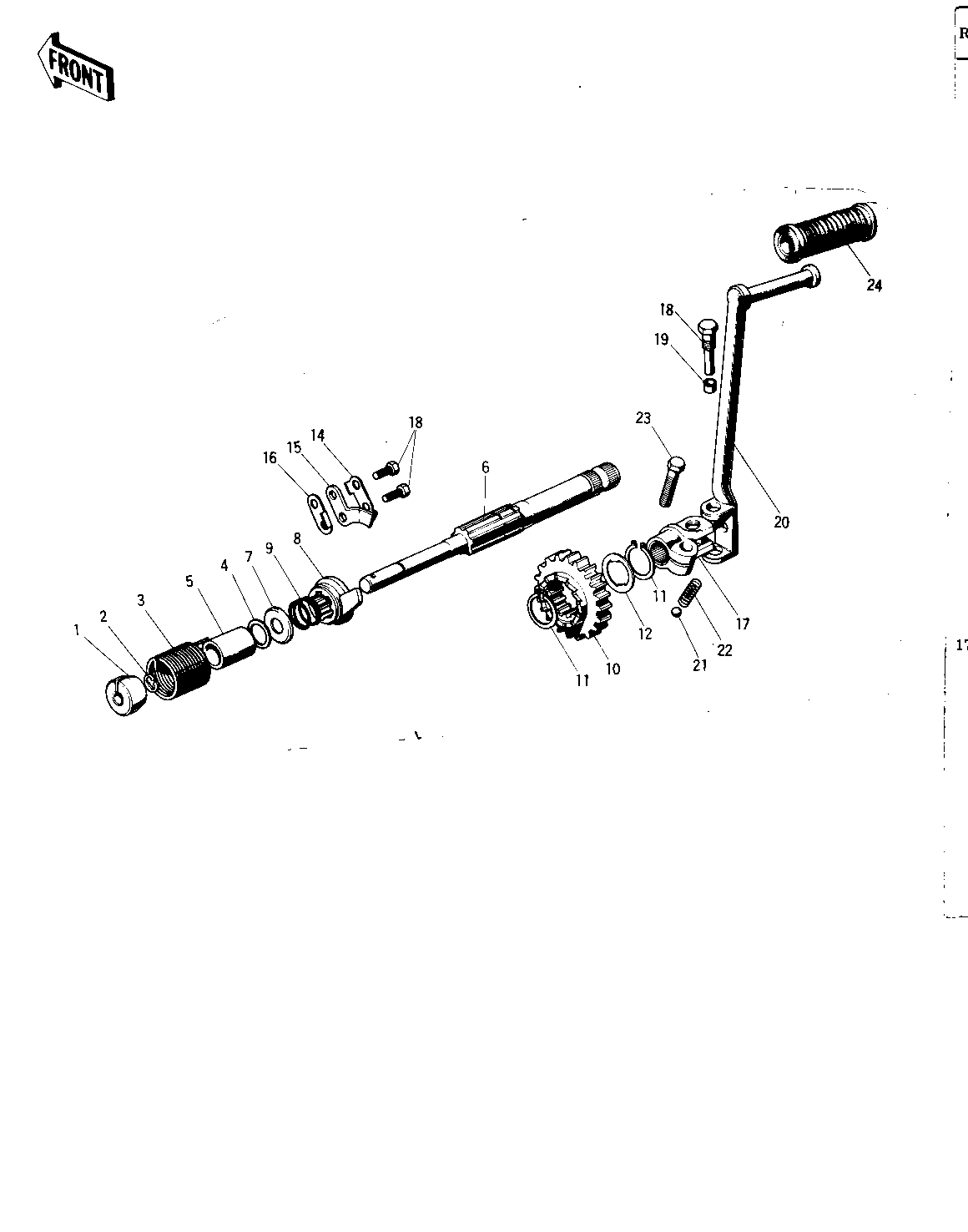

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE KICK SPRING | 1 | 13070-001 | 1 | ||
| CIRCLIP 10MM | 2 | 482J0100 | 2 | ||
| SPRING KICKSTARTER | 3 | 92082-002 | 1 | ||
| SHIM-KICK SHAFT,0.3T | 4 | 92022-149 | AR | 0.3T | |
| SHIM-KICK SHAFT,0.5T | 4 | 92022-150 | AR | 0.5T | |
| SHIM-KICK SHAFT,0.7T | 4 | 92022-151 | AR | 0.7T | |
| COLLAR | 5 | 92027-126 | 1 | ||
| SHAFT-KICKSTARTER | 6 | 13066-026 | 1 | ||
| HOLDER-KICK GEAR | 7 | 13077-003 | 1 | ||
| RATCHET | 8 | 13078-004 | 1 | ||
| SPRING | 9 | 92081-093 | 1 | ||
| GEAR-KICKSTARTER | 10 | 13068-022 | 1 | ||
| CIRCLIP | 11 | 92033-026 | 2 | ||
| WASHER-LOCK | 12 | 92024-033 | 1 | ||
| BOLT-UPSET,6X16 | 13 | 112G0616 | 2 | ||
| WASHER-KICK STOPPER | 14 | 92031-006 | 1 | ||
| GUIDE-KICKSTARTER | 15 | 13206-006 | 1 | ||
| STOPPER-KICKSTARTER | 16 | 13072-010 | 1 | ||
| PEDAL-KICKSTARTER | 17~22 | 13058-027 | 1 | ||
| BOSS-KICK PEDAL | 17 | 13061-008 | 1 | ||
| BOLT-HEX HEAD,10MM | 18 | 92001-085 | 1 | ||
| COLLAR | 19 | 92027-101 | 1 | ||
| BALL STEEL 1/4' | 21 | 600A0800 | 1 | ||
| SPRING KICK PEDAL | 22 | 92081-020 | 1 | ||
| BOLT-HEX HEAD,10X25 | 23 | 114B1025 | 1 | ||
| RUBBER KICK PEDAL | 24 | 13063-004 | 1 |
