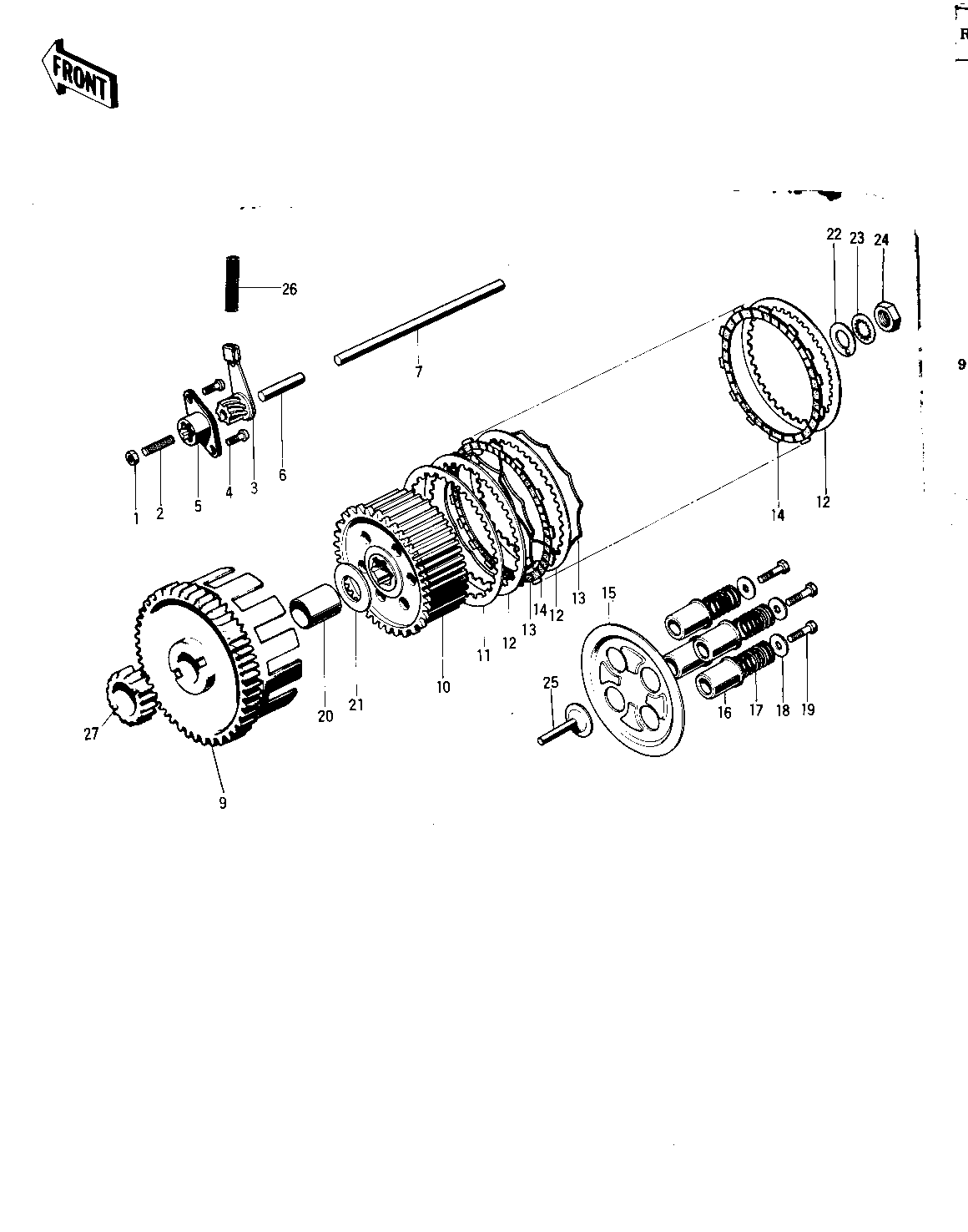

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 6MM | 1 | 311B0600 | 1 | ||
| NUT 6MM | 1 | 311B0600 | AL | ||
| SCREW-CLUTCH ADJUST | 2 | 92014-011 | 1 | ||
| RELEASE INNER-CLUTCH | 3 | 13102-010 | 1 | ||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | 2 | ||
| RELEASE OUTER-CLUTCH | 5 | 13118-005 | 1 | ||
| PUSH ROD-CLUTCH,SHORT | 6 | 13116-013 | 1 | L=79 M/M | |
| PUSH ROD-CLUTCH,LONG | 7 | 13116-012 | 1 | L=152 M/M | |
| WASHER TH 25.5X38X1T | 8 | 92022-145 | 1 | ||
| CLUTCH-ASSY | 9~19 | 13081-034 | 1 | ||
| HOUSING-CLUTCH | 9 | 13095-027 | 1 | ||
| HUB-CLUTCH | 10 | 13087-030 | 1 | ||
| WHEEL-CLUTCH | 11 | 13086-013 | 1 | ||
| PLATE CLUTCH STEEL | 12 | 13089-013 | 7 | ||
| RING-CLUTCH STEEL | 13 | 13229-003 | 6 | ||
| PLATE-CLUTCH FRICTION | 14 | 13088-021 | 6 | ||
| PLATE-CLUTCH SPRING | 15 | 13187-005 | 1 | ||
| GUIDE CLUTCH SPRING | 16 | 13092-005 | 5 | ||
| SPRING CLUTCH | 17 | 92081-042 | 5 | ||
| HOLDER CL SPG6.5X20X2 | 18 | 13091-009 | 5 | ||
| BOLT-UPSET | 19 | 112G0618 | 5 | ||
| UNAVAILABLE IN PRICE BOOK | 20 | 92028-096 | 1 | ||
| WASHER TH 25.5X47X2.5 | 21 | 92026-022 | 1 | ||
| WASHER PL 19X36.5X0.8 | 22 | 92022-074 | 1 | ||
| WASHER LOCK 18MM | 23 | 463G1800 | 1 | ||
| NUT 18MM | 24 | 92015-019 | 1 | ||
| PUSHER-CLTCH SPRG PLT | 25 | 13116-011 | 1 | ||
| SPRING-CLUTCH RELEASE | 26 | 92081-069 | 1 | ||
| PINION-KICKSTARTER | 27 | 13075-007 | 1 | 207 |
