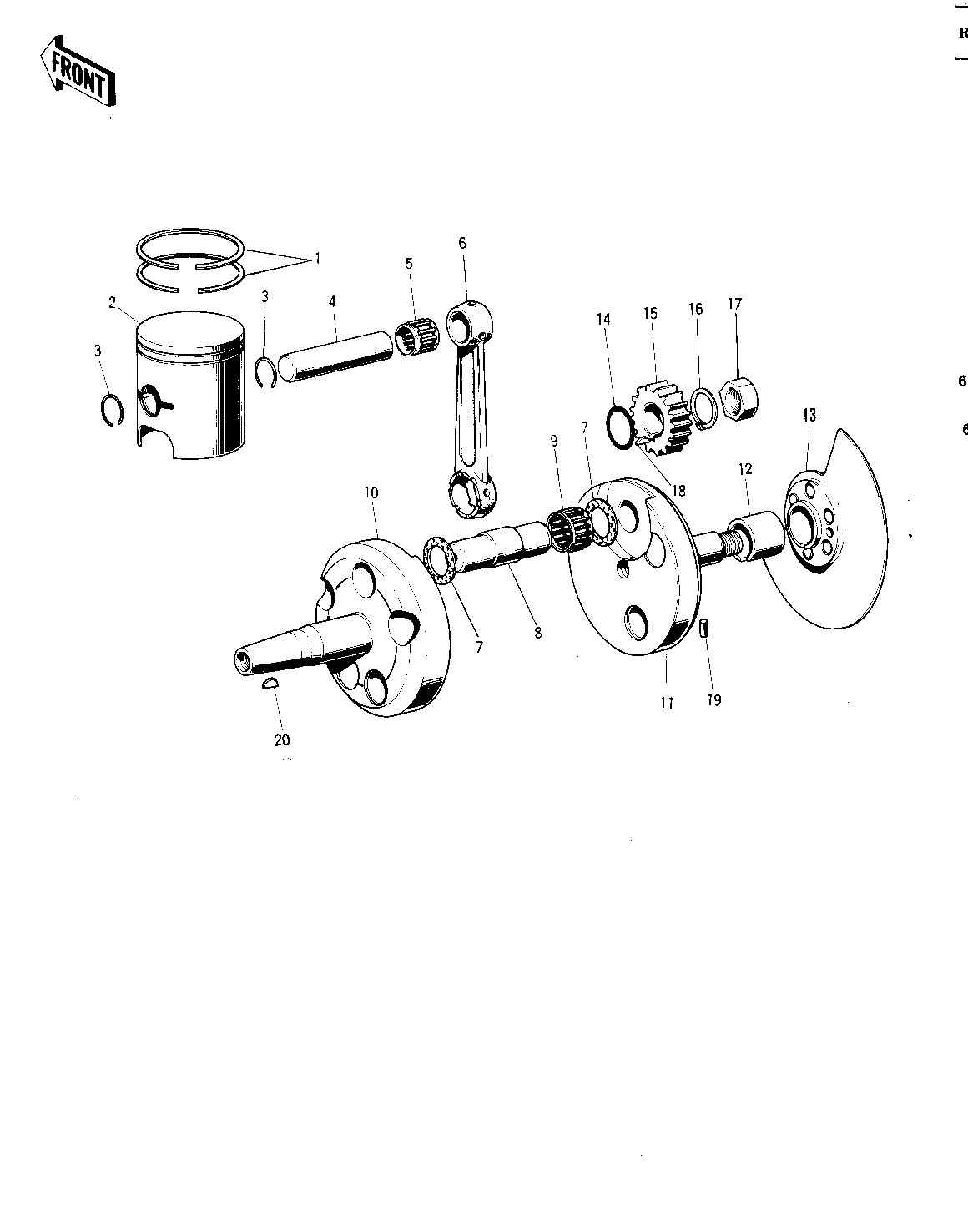

1972 F8-A - CRANKSHAFT/PISTON/ROTARY VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-030 | 1 | ||
| PISTON,STD | 2 | 13001-046 | 1 | ||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | 2 | ||
| PIN-PISTON | 4 | 13002-017 | 1 | ||
| BEARING-SMALL END | 5 | 13033-1010 | 1 | KDK | |
| CRANK-CONROD ASSY | 6~13 | 13036-029 | 1 | ||
| CONNECTING ROD SET | 6~9 | 13044-016 | 1 | ||
| WASHER-CONROD SIDE | 7 | 92026-069 | 2 | ||
| CRANK PIN | 8 | 13035-026 | 1 | ||
| NEEDLE BRG-BIG END | 9 | 13034-032 | 1 | PK293817.8X | |
| CRANKSHAFT,L.H | 1 | 13037-041 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 11 | 13038-088 | 1 | ||
| CALLAR-CRANKSHAFT | 12 | 92027-097 | 1 | ||
| VALVE-ROTARY DISC | 13 | 12001-021 | 1 | ||
| "0" RING,22MM | 14 | 670B3022 | 1 | ||
| PINION,PRIMARY 24T | 15 | 13121-028 | 1 | ||
| WASHER-LOCK,18MM | 16 | 92024-029 | 1 | ||
| NUT 18MM | 17 | 92015-019 | 1 | ||
| WOODRUFF KEY | 18 | 510A5100 | 1 | ||
| PIN DOWEL 4X12 | 19 | 610A0412 | 1 | ||
| WOODRUFF KEY | 20 | 92038-001 | 1 |
| RING SET,STD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,STD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-PISTON PIN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-SMALL END | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KDK |
| CRANK-CONROD ASSY | |
| REF # | 6~13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 6~9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-CONROD SIDE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CRANK PIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE BRG-BIG END | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | PK293817.8X |
| CRANKSHAFT,L.H | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALLAR-CRANKSHAFT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ROTARY DISC | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,22MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PINION,PRIMARY 24T | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK,18MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 4X12 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
