Parts Diagrams |

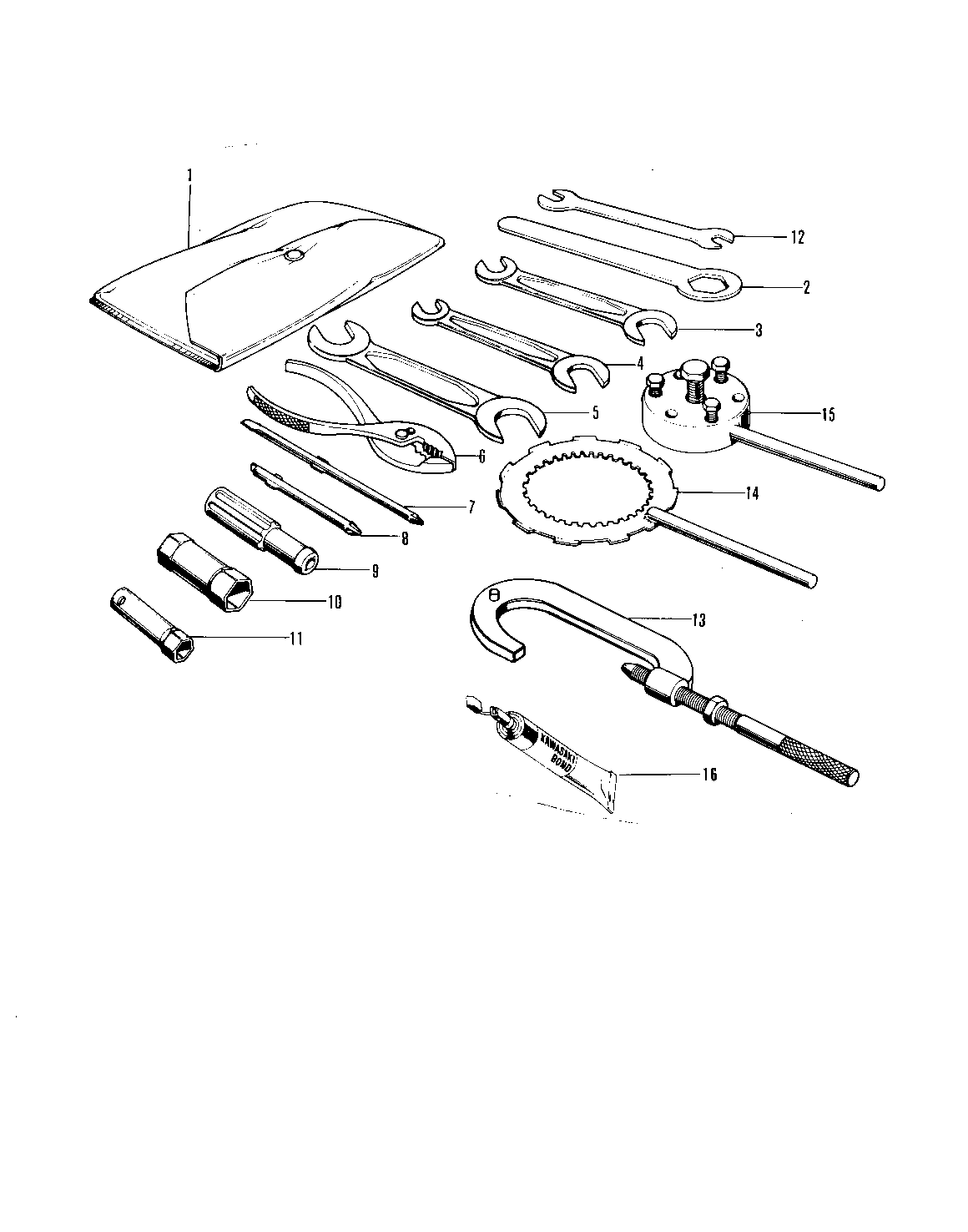

1971 Bison - OWNER TOOLS/SPECIAL SERVICE TOOLS ('71-'
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1-12 | 56007-020 | 1 | ||
| BAG,TOOL | 1 | 56008-008 | 1 | ||
| 92110-1150 (Canada) | 2 | 92109-003 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 3 | 960B1013 | 1 | ||
| *** N.L.A.*** (Canada) | 4 | 960B1014 | 1 | ||
| *** N.L.A.*** (Canada) | 5 | 960B1719 | 1 | ||
| 92112-003 (Canada) | 6 | 92112-001 | 1 | ||
| TOOL-DRIVER | 7 | 92107-1052 | 1 | ||
| SCREW DRIVER #3 PHLIP | 8 | 92107-005 | 1 | ||
| 92106-1001 (Canada) | 9 | 92106-002 | 1 | ||
| 92110-012 (Canada) | 10 | 92110-009 | 1 | ||
| WRENCH BOX 10MM | 11 | 92110-007 | 1 | ||
| 92108-011 (Canada) | 12 | 92108-004 | 1 | ||
| 57001-1243 (Canada) | 13 | 56019-040 | 1 | ||
| 57001-1243 (Canada) | 14 | 56019-067 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 15 | 56019-068 | 1 | ||
| LIQUID GASKET | 16 | 92104-002 | 1 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 1-12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAG,TOOL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92110-1150 (Canada) | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92112-003 (Canada) | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-DRIVER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW DRIVER #3 PHLIP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92106-1001 (Canada) | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92110-012 (Canada) | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH BOX 10MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92108-011 (Canada) | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1243 (Canada) | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1243 (Canada) | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LIQUID GASKET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
