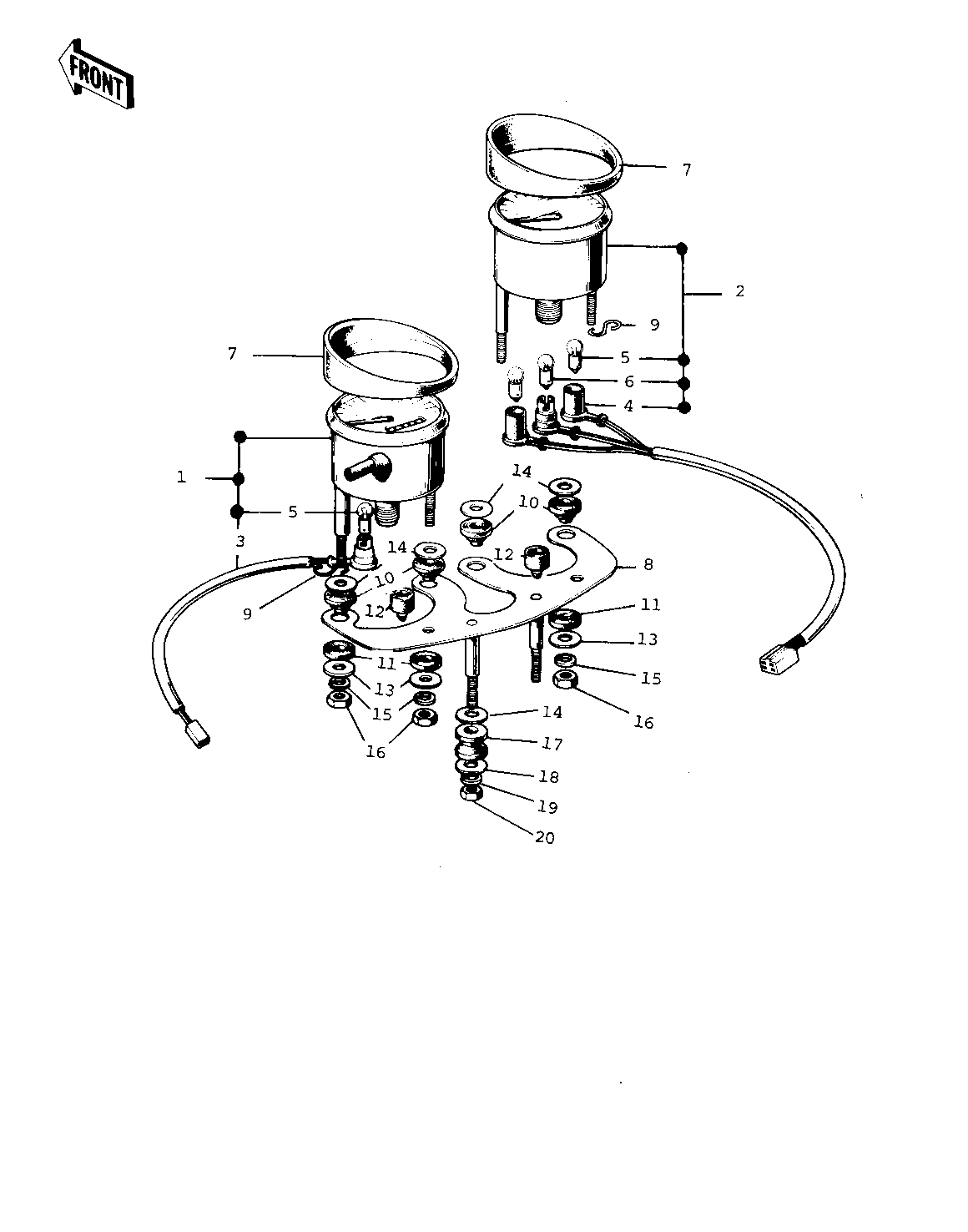

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPEEDOMETER ASSY,MPH | 1 | 25001-045 | 1 | MILE/H INDICATOR | |
| TACHOMETER ASSY | 2 | 25015-009 | 1 | ||
| SOCKET-SPEEDOMETER | 3 | 25011-015 | 1 | ||
| SOCKET-TACHOMETER | 4 | 25011-016 | 1 | ||
| BULB-6V 3W | 5 | 92069-053 | 3 | ||
| BULB 6V 1.5W | 6 | 92069-024 | 1 | ||
| COVER-SPEEDOMETER | 7 | 25012-003 | 2 | ||
| BRACKET SPEEDOMETER | 8 | 25008-009 | 1 | ||
| CLAMP CABLE | 9 | 25022-002 | 2 | ||
| DAMPER RUBBER | 10 | 92075-065 | 4 | ||
| DAMPER RUBBER | 11 | 92075-066 | 4 | ||
| DAMPER RUBB SPEEDMETR | 12 | 92075-035 | 2 | ||
| WASHER PL 5.5X20X1.2 | 13 | 92022-104 | 4 | I.D=5.5 | |
| WASHER PLAIN 8MM | 14 | 411B0800 | 6 | ||
| WASHER SPRING 5MM | 15 | 461F0500 | 4 | ||
| NUT,5MM | 16 | 311B0500 | 4 | ||
| DAMPER RUBB SPEEDMETR | 17 | 92075-024 | 2 | ||
| WASHER 6.5X20X1.6T | 18 | 92022-125 | 2 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 2 | ||
| NUT 6MM | 20 | 311B0600 | 2 |
| SPEEDOMETER ASSY,MPH | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | MILE/H INDICATOR |
| TACHOMETER ASSY | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-SPEEDOMETER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-TACHOMETER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB-6V 3W | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB 6V 1.5W | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SPEEDOMETER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET SPEEDOMETER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP CABLE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB SPEEDMETR | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PL 5.5X20X1.2 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | I.D=5.5 |
| WASHER PLAIN 8MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB SPEEDMETR | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
