Parts Diagrams |

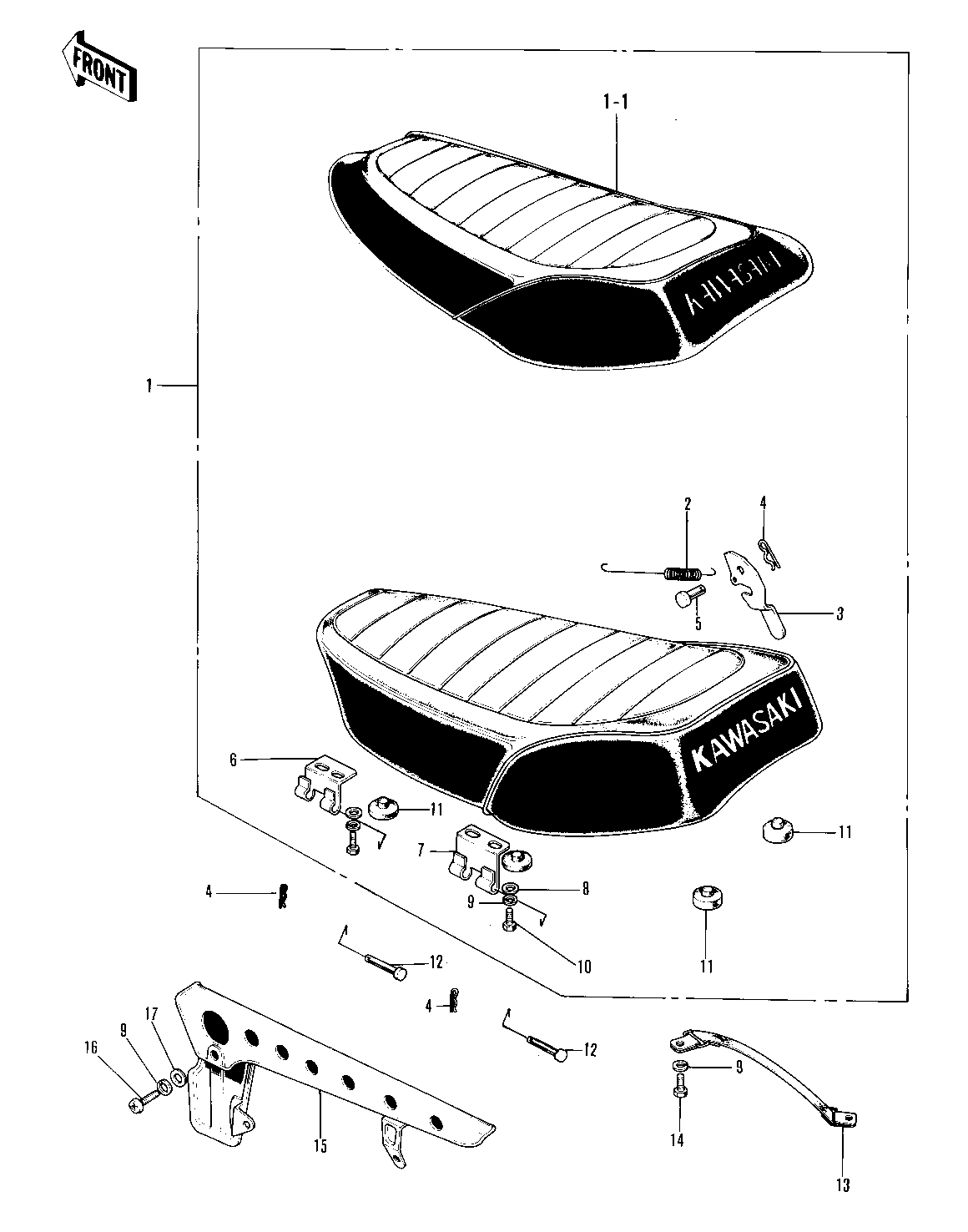

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT ASSY-DUAL | 1 | 53002-033 | 1 | ||
| .COVER-DUAL SEAT | 1-1 | 53003-003 | 1 | ||
| .SPRING,HOOK | 2 | 53012-013 | 1 | ||
| SPRING,HOOK | 2 | 53012-013 | 1 | ||
| .HOOK | 3 | 53008-008 | 1 | ||
| .COTTER PIN | 4 | 92041-003 | 3 | ||
| .PIN DUAL SEAT PIVOT | 5 | 53011-001 | 1 | ||
| .HINGE | 6 | 53009-015 | 1 | L=.32 MM | |
| .HINGE | 7 | 53009-016 | 1 | L=38 MM | |
| .WASHER PLAIN 6MM | 8 | 411B0600 | 4 | ||
| .WASHER SPRING 6MM | 9 | 461F0600 | 6 | ||
| .BOLT-UPSET 6X14 | 10 | 112B0614 | 4 | ||
| .DAMPER RUBB DUAL SEAT | 11 | 92075-023 | 6 | ||
| PIN | 12 | 53011-002 | 2 | ||
| BAND-SEAT | 13 | 92072-028 | 1 | ||
| BOLT,6X10 | 14 | 112G0610 | 1 | ||
| CASE-CHAIN | 15 | 36014-030-21 | 1 | ||
| SCREW PAN HEAD 6X14 | 16 | 220B0614 | 1 | ||
| WASHER 6.5X20X1.6T | 17 | 92022-125 | 1 |
