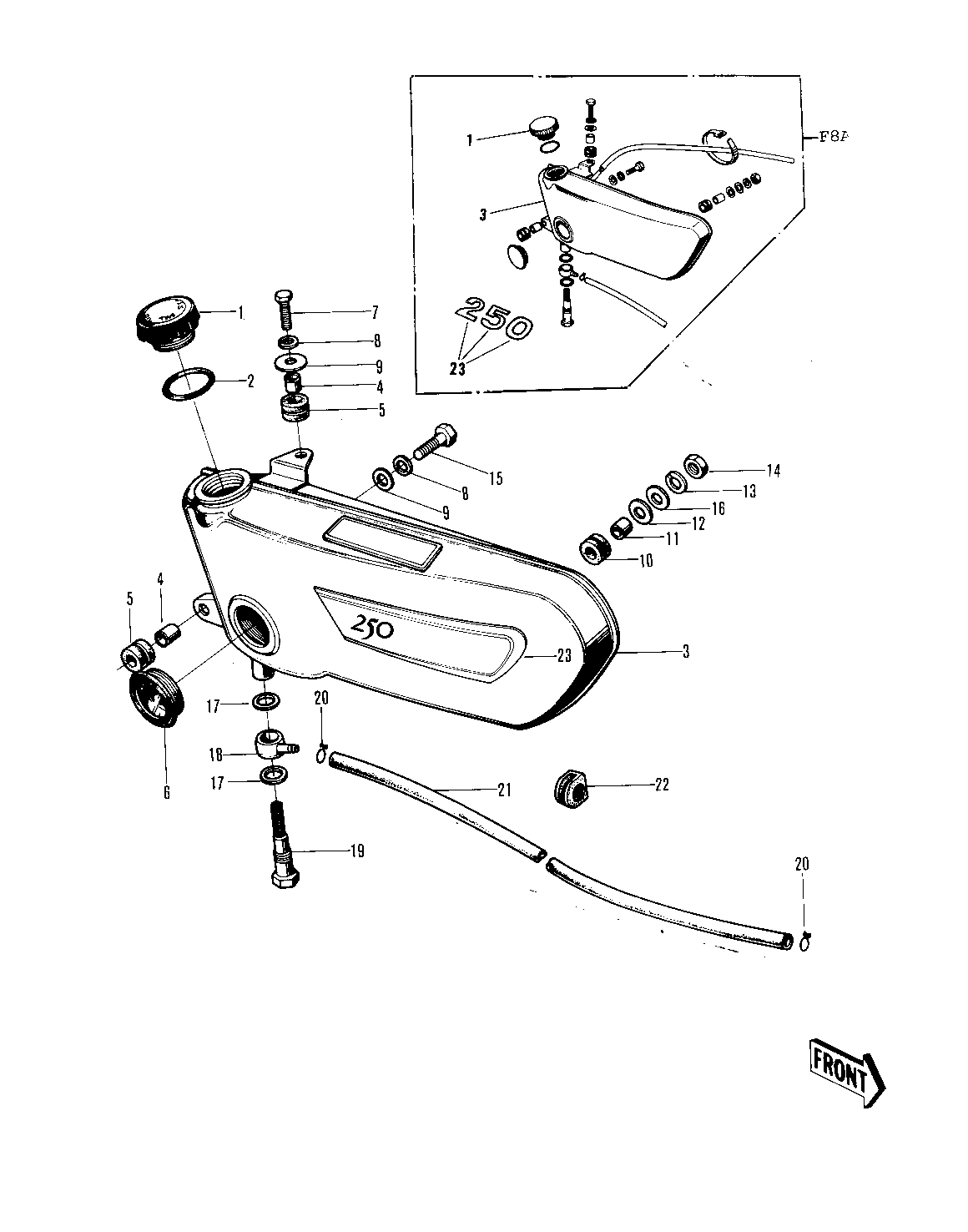

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP OIL TANK | 1 | 52003-009 | 1 | F8A | |
| "0" RING,36MM | 2 | 670B3036 | 1 | ||
| TANK-OIL,ORANGE | 3 | 52001-020-55 | 1 | ||
| COLLAR | 4 | 92027-103 | 2 | ||
| DAMPER RUBBER | 5 | 92075-051 | 2 | ||
| GAUGE OIL LEVEL | 6 | 52015-001 | 1 | ||
| BOLT-UPSET | 7 | 112G0625 | 1 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 2 | ||
| WASHER 6.5X20X1.6T | 9 | 92022-125 | 2 | I.D=6.5 | |
| DAMPER RUBBER-MUFFLER | 10 | 18063-005 | 1 | ||
| COLLAR | 11 | 92027-102 | 1 | ||
| WASHER,8X26X2.3 | 12 | 92022-1564 | 1 | I.D=8 | |
| WASHER SPRING 8MM | 13 | 461F0800 | 1 | ||
| NUT,8MM | 14 | 311B0800 | 1 | ||
| BOLT-UPSET | 15 | 112G0618 | 1 | ||
| WASHER PLAIN 8MM | 16 | 411B0800 | 1 | I.D=8.5 | |
| GASKET,10,2X15X1.5T | 17 | 11009-1146 | 2 | ||
| CONNECTOR BANJO | 18 | 92061-003 | 1 | ||
| BOLT OIL TANK BANJO | 19 | 92060-001 | 1 | ||
| CLAMP FUEL PIPE | 20 | 92037-010 | 2 | ||
| PIPE | 21 | 92059-064 | 1 | L=580M/M | |
| GROMMET-OIL PIPE | 22 | 92071-041 | 1 | ||
| EMBLEM,PURPLE | 23 | 56018-075-61 | 1 | ||
| EMBLEM-OIL TANK | 23 | 56018-115 | 1 | F8A |
| CAP OIL TANK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F8A |
| "0" RING,36MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL,ORANGE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GAUGE OIL LEVEL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | I.D=6.5 |
| DAMPER RUBBER-MUFFLER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8X26X2.3 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | I.D=8 |
| WASHER SPRING 8MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | I.D=8.5 |
| GASKET,10,2X15X1.5T | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR BANJO | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT OIL TANK BANJO | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP FUEL PIPE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | L=580M/M |
| GROMMET-OIL PIPE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,PURPLE | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM-OIL TANK | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F8A |
