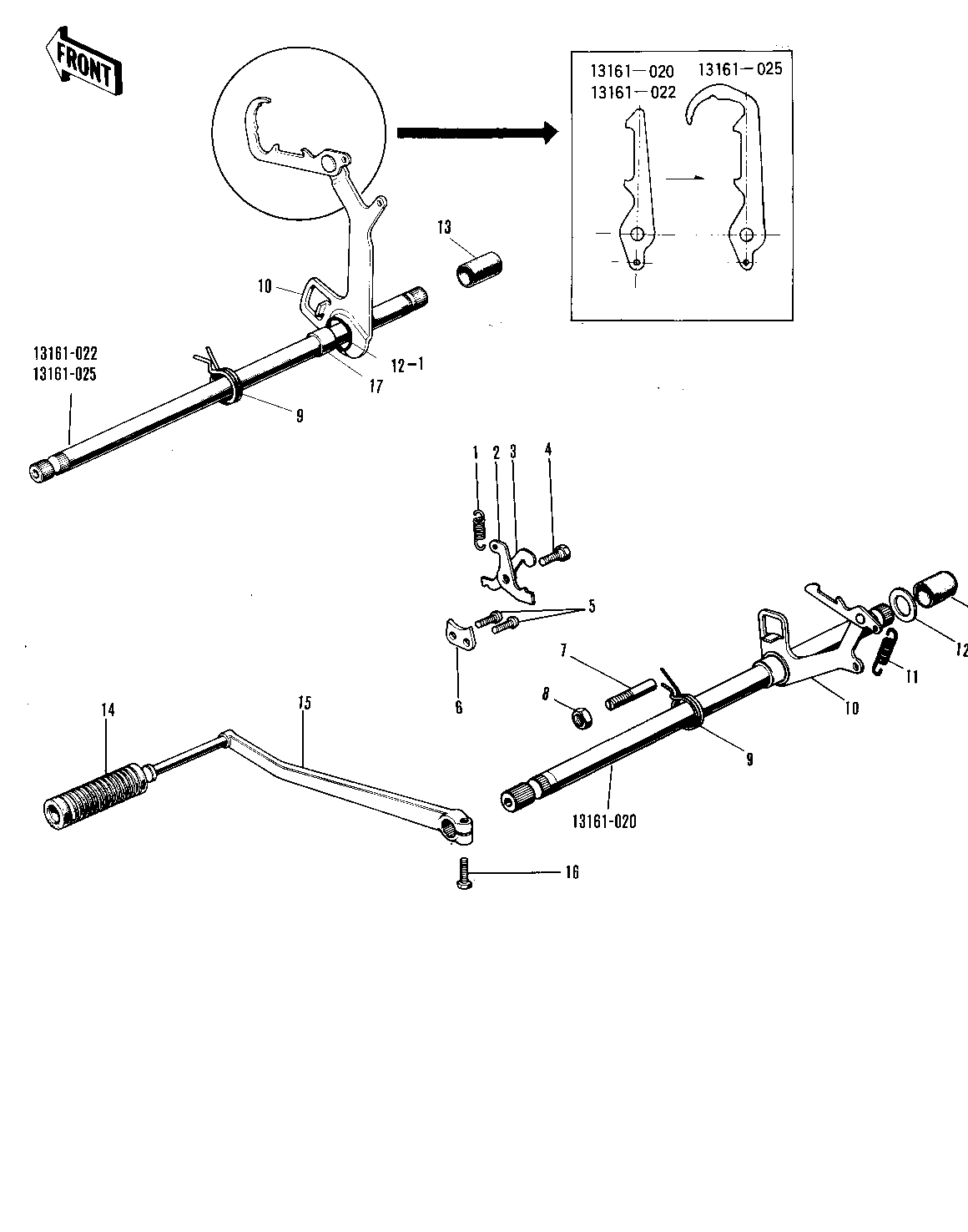

1971 Bison - GEAR CHANGE MECHANISM ('71-'72 F8/F8-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPRING-COIL | 1 | 92081-091 | 1 | ||
| LEVER-CHANGE DRUM,B | 2 | 13168-017 | 1 | ||
| LEVER-CHANGE DRUM,A | 3 | 13168-016 | 1 | ||
| SCREW-PAN HEAD | 4 | 92011-023 | 1 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 2 | ||
| PLATE CHNG DRUM PSTN | 6 | 13169-002 | 1 | ||
| PIN CHANGE PEDAL SPRG | 7 | 92043-057 | 1 | ||
| NUT 8MM | 8 | 312B0800 | 1 | ||
| SPRING,TENTION | 9 | 92081-1129 | 1 | ||
| LEVER ASSY GEAR CHNG | 10 | 13161-028 | (1 | ||
| LEVER ASSY GEAR CHNG | 10 | 13161-025 | (1 | ||
| LEVER ASSY GEAR CHNG | 10 | 13161-025 | 1 | E/NO. 07002 | |
| SPRING,CHANGE LEVER | 11 | 92144-1720 | 1 | ||
| WASHER-PLAIN | 12 | 92022-164 | 1 | USE 13161-020 | |
| SPACER | 12-1 | 92026-068 | 1 | USE 13161-022 | |
| RUBBER CAP | 13 | 13080-004 | 1 | USE 13161-022 | |
| RUBBER CHANGE PEDAL | 14 | 13157-004 | 1 | ||
| PEDAL GEAR CHANGE | 15 | 13156-032 | 1 | ||
| BOLT-UPSET | 16 | 112G0618 | 1 | ||
| COLLAR | 17 | 92027-121 | 1 | USE 13161-022 |
