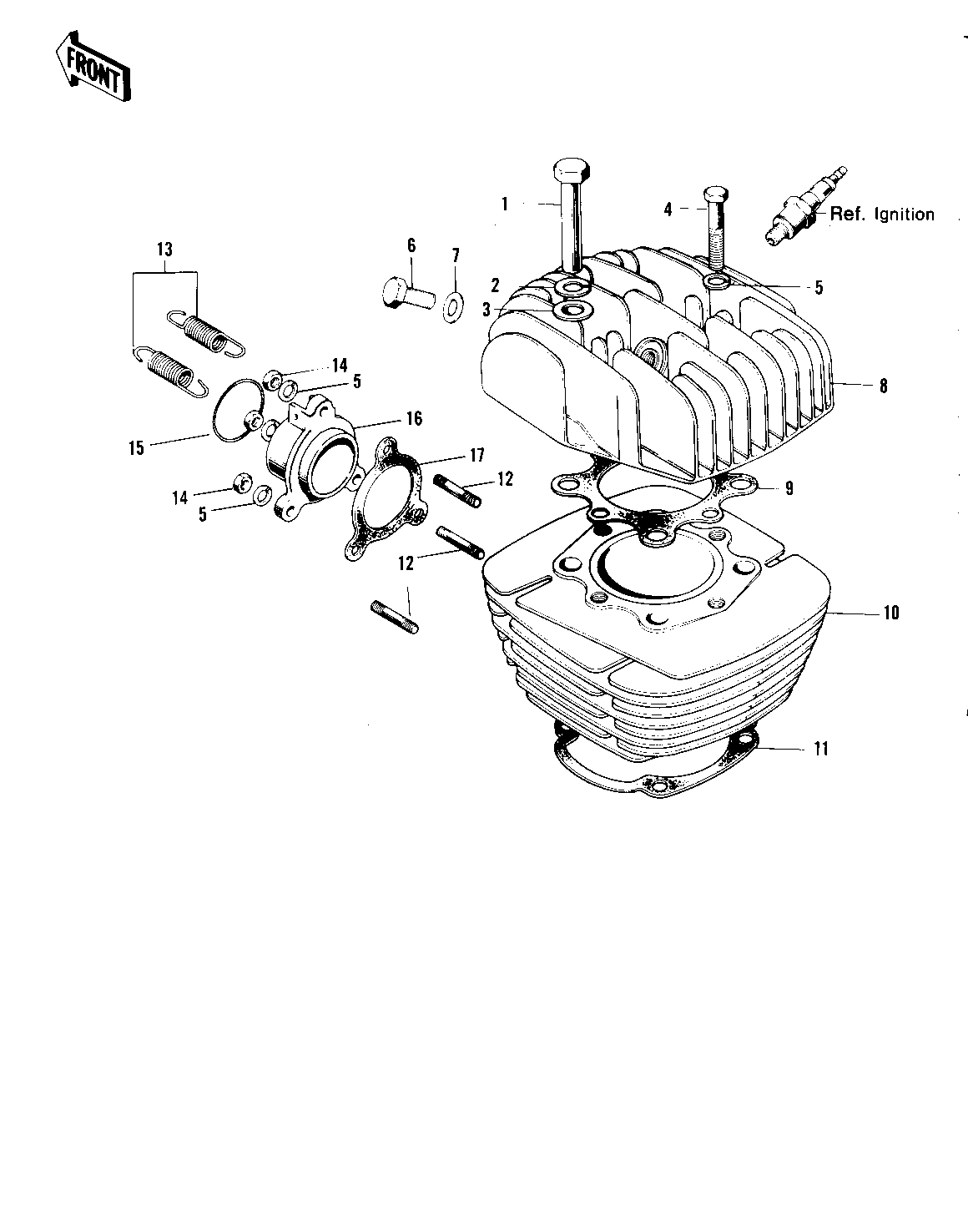

1971 Bison - CYLINDER HEAD/CYLINDER ('71-'72 F8/F8-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 10MM | 1 | 92015-022 | 4 | ||
| WASHER SPRING 14MM | 2 | 461F1400 | 4 | ||
| WASHER PLAIN 14MM | 3 | 410B1400 | 4 | ||
| BOLT,10X45 | 4 | 92001-1182 | 4 | ||
| BOLT,10X45 | 4 | 92001-1182 | 4 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
| PLUG-CYLINDER HEAD | 6 | 92067-005 | 1 | ||
| GASKET-CYL HEAD PLUG | 7 | 92065-068 | 1 | ||
| CYLINDER HEAD | 8 | 11001-051 | 1 | ||
| GASKET HEAD | 9 | 11004-041 | 1 | ||
| CYLINDER | 10 | 11005-076 | 1 | ||
| GASKET-CYLINDER BASE | 11 | 11009-024 | 1 | ||
| STUD 8X20 | 12 | 172G0820 | 3 | ||
| SPRING CONNECTOR | 13 | 18071-001 | 2 | ||
| NUT 8MM | 14 | 318B0800 | 3 | ||
| UNAVAILABLE IN PRICE BOOK | 15 | 56019-102 | AR | ||
| HOLDER-EXHAUST PIPE | 16 | 18062-004 | 1 | ||
| GASKET-EXHAUST PIPE | 17 | 18050-004 | 1 |
