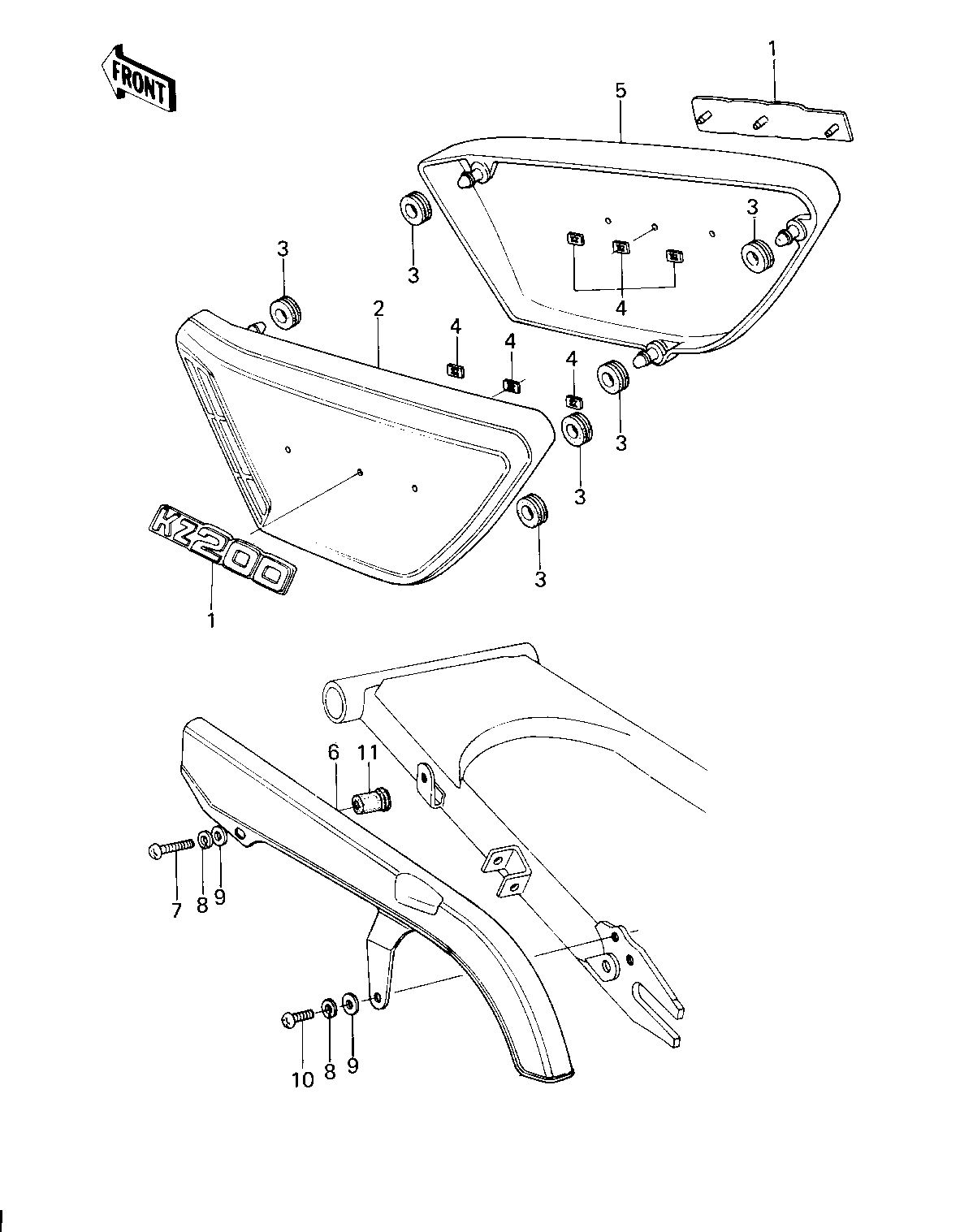

1978 KZ200-A1 - SIDE COVERS/CHAIN COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,SIDE COVER | 1 | 56018-264 | 2 | ||
| EMBLEM,SIDE COVER | 1 | 56018-1070 | 2 | ||
| COVER, LH SIDE | 2 | 36001-1047-4M | 1 | KZ200-A1/A1A | |
| COVER-SIDE,LH.BROW | 2 | 36001-1047-4Z | 1 | KZ200-A1/A1A | |
| COVER,L.H SIDE,F.RED | 2 | 36001-1047-B1 | 1 | KZ200-A2 | |
| GROMMET | 3 | 92071-056 | 6 | ||
| NUT,LOCK,3MM | 4 | 92018-005 | 6 | ||
| COVER,R.H.SIDE C.BLUE | 5 | 36001-1048-4M | 1 | KZ200-A1/A1A | |
| COVER-SIDE | 5 | 36001-1048-4Z | 1 | KZ200-A1/A1A | |
| COVER,R.H SIDE,F.RED | 5 | 36001-1048-B1 | 1 | KZ200-A2 | |
| CASE-CHAIN | 6 | 36014-070 | 1 | ||
| SCREW PAN HEAD 6X50 | 7 | 220B0650 | 1 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 9 | 411B0600 | 2 | ||
| SCREW PAN HEAD 6X12 | 10 | 220B0612 | 1 | ||
| DAMPER,RUBBER | 11 | 92075-1030 | 1 |
