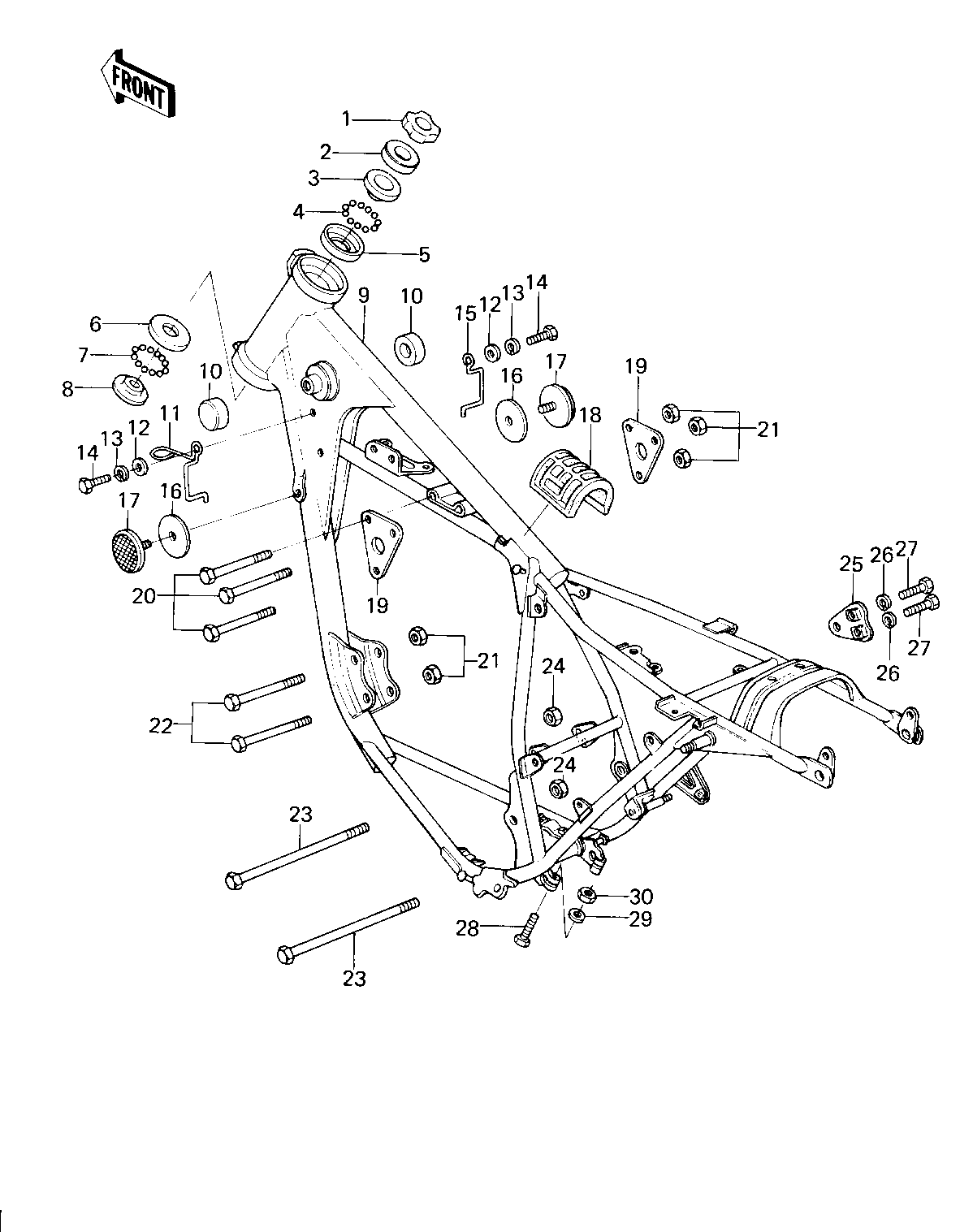

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,STEERING STEM | 1 | 92090-022 | 1 | ||
| CAP,STEERING STEM | 2 | 46098-012 | 1 | ||
| CONE,STRG STM BRG,UP | 3 | 92047-014 | 1 | UPPER | |
| BALL STEEL 3/16' | 4 | 600A0600 | 23 | ||
| RACE,STRG STM BEARING | 5 | 92048-009 | 1 | UPPER | |
| RACE STEERING BEARING | 6 | 92048-005 | 1 | LOWER | |
| BALL STEEL 1/4' | 7 | 600A0800 | 19 | ||
| CONE STERNG BERG LOW | 8 | 92047-010 | 1 | ||
| FRAME | 9 | 32002-165 | 1 | ||
| DAMPER RUBBER-FL TANK | 10 | 92075-101 | 2 | ||
| CLAMP | 11 | 92037-202 | 1 | ||
| WASHER PLAIN 6MM | 12 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 13 | 461F0600 | 2 | ||
| BOLT-UPSET,6X12 | 14 | 112G0612 | 1 | ||
| CLAMP | 15 | 92037-203 | 1 | ||
| DAMPER RUBBER,REFLECT | 16 | 92094-011 | 2 | ||
| REFLECTOR,REFLEX | 17 | 28012-016 | 2 | ||
| DAMPER RUBBER | 18 | 92075-284 | 1 | ||
| PLATE,ENGINE HEAD | 19 | 32030-069 | 2 | ||
| BOLT,FLANGED,8X60 | 20 | 92001-1581 | 3 | ||
| NUT,LOCK,8MM | 21 | 92017-013 | 5 | ||
| BOLT,HEX HEAD,8X65 | 22 | 110B0865 | 2 | ||
| BOLT, FLANGED, 10X110 | 23 | 92001-1602 | 2 | ||
| NUT,LOCK,10MM | 24 | 92019-021 | 2 | ||
| BRACKET,ENGINE | 25 | 32029-1008 | 2 | ||
| WASHER SPRING 8MM | 26 | 461F0800 | 4 | ||
| BOLT-SMALL-UPSET,8X16 | 27 | 115G0816 | 4 | ||
| BOLT 6X35 | 28 | 110R0635 | 2 | ||
| WASHER PLAIN 6MM | 29 | 410B0600 | 2 | ||
| NUT,LOCK 6MM | 30 | 92017-014 | 2 |
| NUT,STEERING STEM | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | UPPER |
| BALL STEEL 3/16' | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | UPPER |
| RACE STEERING BEARING | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | LOWER |
| BALL STEEL 1/4' | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| CONE STERNG BERG LOW | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-FL TANK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,REFLECT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REFLEX | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENGINE HEAD | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X60 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X65 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT, FLANGED, 10X110 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ENGINE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X35 | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK 6MM | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
