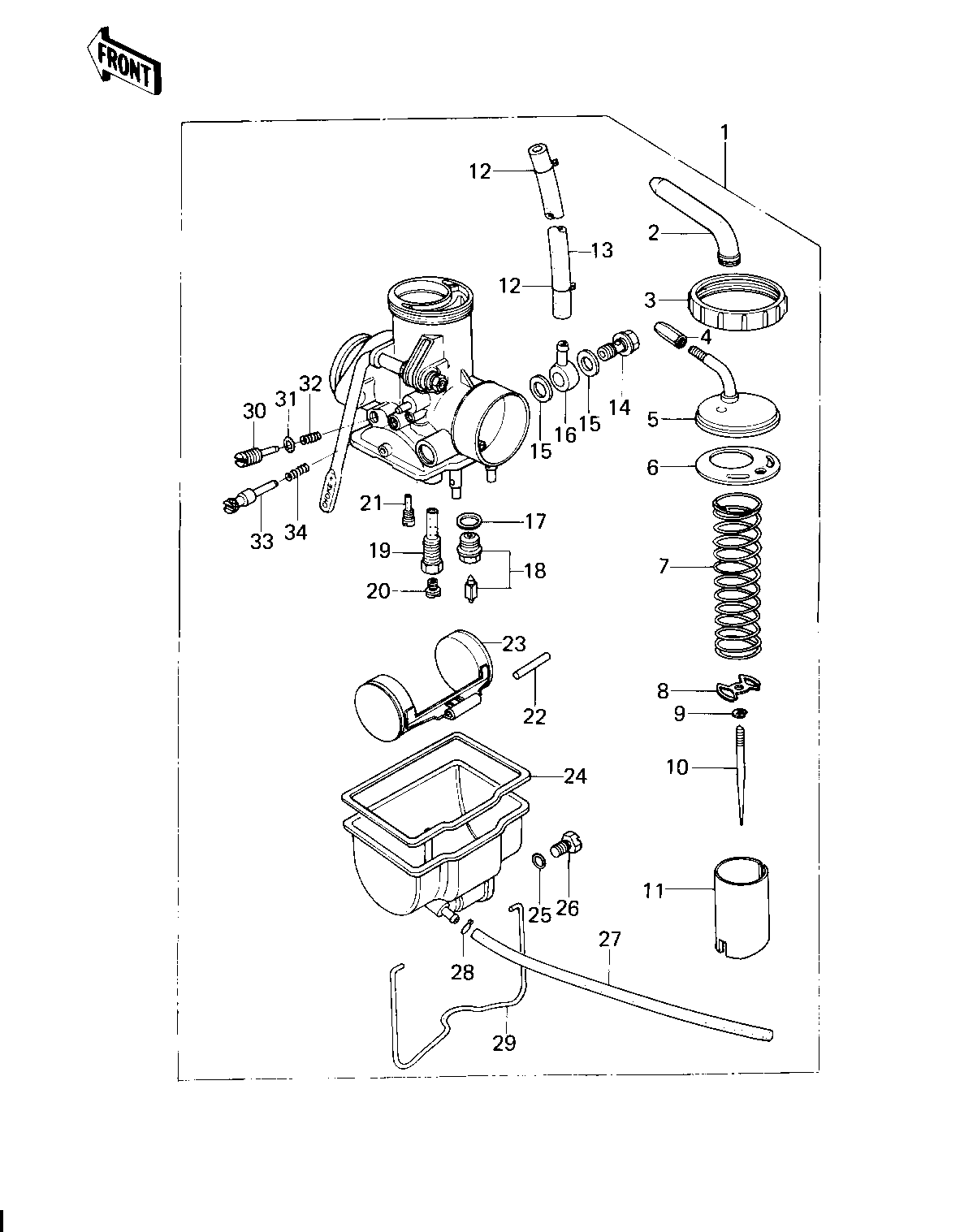

1978 KZ200-A1 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1068 1 KZ200-A1
CARBURETOR ASSY 1 16001-1068 1 KZ200-A1
CARBURETOR ASSY 1 16001-1068 1 KZ200-A2
CARBURETOR ASSY 1 16001-1027 1 KZ200-A1A/A2
CAP,CABLE ADJUSTER 2 49006-1007 1
CAP,MIXING CHAMBER 3 16004-1001 1
ADJUSTER,CABLE 4 16002-1002 1
TOP,MIXING CHAMBER 5 16005-1002 1
GASKET,MIXING CHAMBER 6 11009-1026 1
SPRING,THROTTLE VALVE 7 92081-1034 1
SEAT,THROTTLE VAL SPR 8 16007-1003 1
CIRCLIP,JET NEEDLE 9 92037-1039 1
JET NEEDLE 10 16009-1005 1 USE FOR 16001-1028/-1068
JET NEEDLE 10 16009-1025 1 USE FOR 16001-1027
VALVE,THROTTLE 11 16025-1003 1 USE FOR 16001-1028/-1027
VALVE,THRR,0.6/1.2 11 16025-1015 1 USE FOR 16001-1068
CLAMP,FUEL HOSE 12 92037-1040 2
HOSE,FUEL 13 92059-1014 1
BOLT,BANJO 14 92001-1051 1
WASHER,PLAIN 15 92022-1021 2
CONNECTOR,BANJO 16 92005-1002 1
GASKET,FLOAT VAV SEAT 17 11009-1027 1
FLOAT VALVE ASSY 18 16030-1002 1
HOLDER,NEEDLE JET 19 16065-1006 1 USE FOR 16001-1028/-1068
HOLDER,NEEDLE JET 19 16065-1008 1 USE FOR 16001-1027
MAIN JET,#105 20 92063-1009 1 USE FOR 16001-1028/-1068
JET-MAIN #110 20 92063-1114 1 USE FOR 16001-1027
MAIN JET,#100 20 92063-1008 (1 RACING USE ONLY
JET-MAIN #115 20 92063-1118 (1 RACING USE ONLY
MAIN JET,#120 20 92063-1011 (1 RACING USE ONLY
PILOT JET,#38 21 92064-1002 1
PIN,FLOAT 22 92043-1011 1
FLOAT 23 16031-1003 1
GASKET,FLOAT CHAMBER 24 11009-1028 1
"O" RING,DRAIN SCREW 25 92055-1003 1
SCREW,DRAIN 26 92009-1003 1
HOSE,FUEL OVERFLOW 27 92059-111 1
HOSE,FUEL OVERFLOW 27 92059-1046 1
CLAMP,TUBE,OVERFLOW 28 92037-1142 1
CLIP,FLOAT CHAMB FITT 29 92037-1041 1
SCREW,PILOT AIR ADJUS 30 16014-1003 1
"O" RING 31 92055-1013 1
SPRING,PILOT AIR ADJ 32 92081-1035 1
SCREW,THROTTLE STOP 33 16021-1004 1
SPRING,THROT STOP SCR 34 92081-1036 1
