Parts Diagrams |

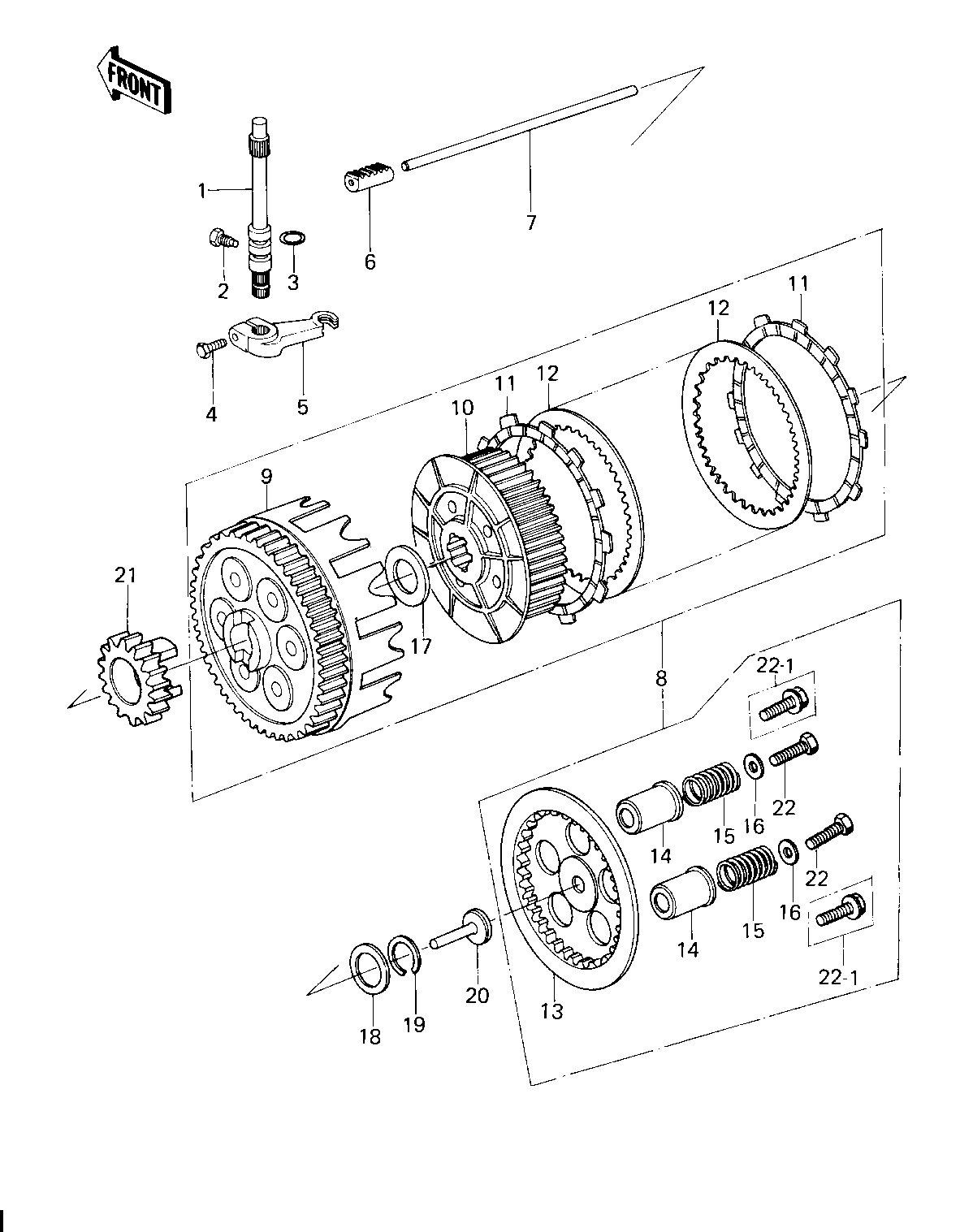

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,CLUTCH RELEASE | 1 | 13106-006 | 1 | ||
| BOLT,CLUTCH RELEASE | 2 | 92003-130 | 1 | ||
| "0" RING, 10MM | 3 | 670B2010 | 1 | ||
| BOLT-UPSET | 4 | 112G0618 | 1 | ||
| LEVER,CLUTCH RELEASE | 5 | 13103-028 | 1 | ||
| ROD,CLUTCH PUSH | 6 | 13116-1040 | 1 | ||
| ROD,PUSH | 7 | 13116-032 | 1 | ||
| ROD,CLUTCH PUSH,LONG | 7 | 13116-1002 | 1 | E/NO. 005063~ | |
| CLUTCH-ASSY | 8 | 13081-083 | 1 | ||
| CLUTCH-ASSY | 8 | 13081-1051 | 1 | E/NO. 005063~ | |
| HOUSING,CLUTCH | 9 | 13095-1006 | 1 | ||
| HOUSING,CLUTCH | 9 | 13095-1006 | 1 | ||
| HUB,CLUTCH | 10 | 13087-045 | 1 | ||
| HUB,CLUTCH | 10 | 13087-1001 | 1 | E/NO. 005063~ | |
| PLATE CLUTCH FRICTION | 11 | 13088-015 | 6 | ||
| PLATE CLUTCH FRICTION | 11 | 13088-015 | 7 | E/NO. 005063~ | |
| PLATE CLUTCH STEEL | 12 | 13089-013 | 5 | ||
| PLATE CLUTCH STEEL | 12 | 13089-013 | 6 | E/NO. 005063~ | |
| PLATE-CLUTCH SPRING | 13 | 13187-005 | 1 | ||
| GUIDE CLUTCH SPRING | 14 | 13092-005 | 5 | ||
| SPRING-CLUTCH | 15 | 92081-083 | 5 | ||
| SPRING-CLUTCH | 15 | 92081-083 | 5 | ||
| HOLDER,CLUTCH SPRING | 16 | 13091-011 | 5 | NOT USE FOR P/NO. 92001-1066 | |
| WASHER,PLAIN | 17 | 92022-321 | 1 | ||
| WASHER, PLAIN | 18 | 92022-112 | 1 | ||
| CIRCLIP,18MM | 19 | 92033-029 | 1 | ||
| PUSHER-CLTCH SPRG PLT | 20 | 13116-016 | 1 | ||
| PINION,KICKSTARTER | 21 | 13075-012 | 1 | ||
| BOLT-UPSET | 22 | 112G0618 | 5 | ||
| BOLT,CLUTCH SPR FITT | 22-1 | 92001-1066 | 5 |
| SHAFT,CLUTCH RELEASE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,PUSH | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH,LONG | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 005063~ |
| CLUTCH-ASSY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 005063~ |
| HOUSING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 005063~ |
| PLATE CLUTCH FRICTION | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE CLUTCH FRICTION | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | E/NO. 005063~ |
| PLATE CLUTCH STEEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE CLUTCH STEEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | E/NO. 005063~ |
| PLATE-CLUTCH SPRING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE CLUTCH SPRING | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SPRING-CLUTCH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SPRING-CLUTCH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH SPRING | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | NOT USE FOR P/NO. 92001-1066 |
| WASHER,PLAIN | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER, PLAIN | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER-CLTCH SPRG PLT | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PINION,KICKSTARTER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 22-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
