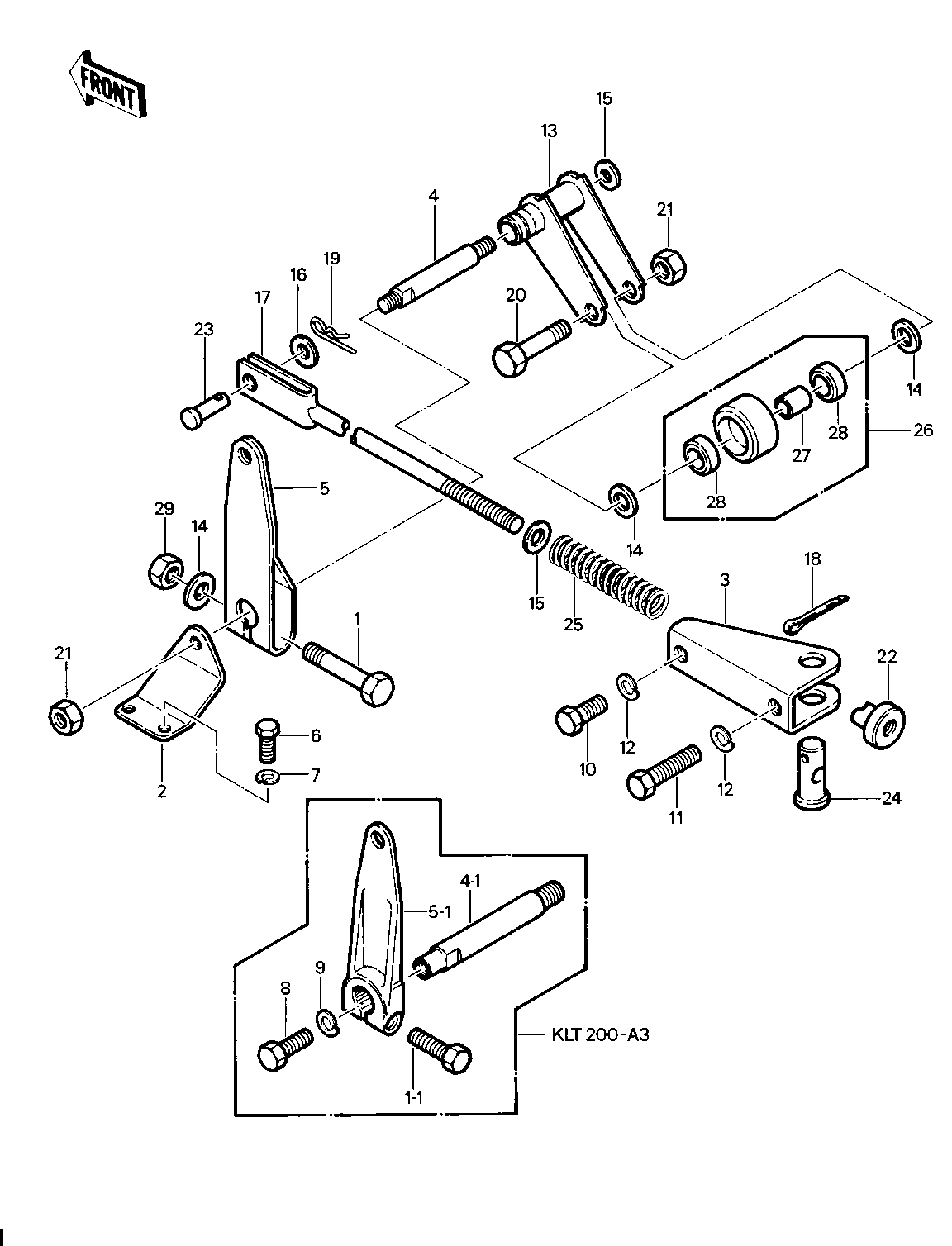

1981 KLT200 - CHAIN TENSIONER ('81-'82 KLT200-A1/A2/A3
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X50 | 1 | 130B0850 | 1 | ||
| BRACKET,LEVER TENSION | 2 | 11034-4060 | 1 | ||
| BRACKET,CHAIN ADJUST | 3 | 11034-4061 | 1 | ||
| SHAFT,CHAIN TENSIONER | 4 | 13107-4003 | 1 | ||
| LEVER-ARM-TENSIONER S | 5 | 13168-5002 | 1 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 10 | 115G0818 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 11 | 115G0825 | 1 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 2 | ||
| LEVER-ARM-TENSIONER S | 13 | 13168-5002 | 1 | ||
| WASHER PLAIN 8MM | 14 | 411B0800 | 3 | ||
| WASHER PLAIN 10MM | 15 | 411B1000 | 2 | ||
| WASHER PLAIN 12MM | 16 | 411B1200 | 1 | ||
| ROD,CHAIN TENSIONER | 17 | 46102-4001 | 1 | ||
| PIN,COTTER | 18 | 550D3230 | 1 | ||
| PIN,SNAP,12M/M | 19 | 554A1200 | 1 | ||
| BOLT,HEX HEAD,8X45 | 20 | 92001-4008 | 1 | ||
| NUT,LOCK,8MM | 21 | 92015-1124 | 2 | ||
| NUT,BRAKE ROD ADJUSTG | 22 | 92015-4008 | 1 | ||
| PIN,12X22 | 23 | 92043-4004 | 1 | ||
| PIN,18X33 | 24 | 92043-4005 | 1 | ||
| SPRING,14X20 | 25 | 92081-1287 | 1 | ||
| ROLLER,CHAIN ADJUST | 26 | 92122-4004 | 1 | ||
| SPACER,CHN GDE ROLLER | 27 | 92027-4007 | 1 | ||
| BEARING,BALL | 28 | 92045-1009 | 2 | ||
| NUT,8M/M | 29 | 317B0800 | 1 |
