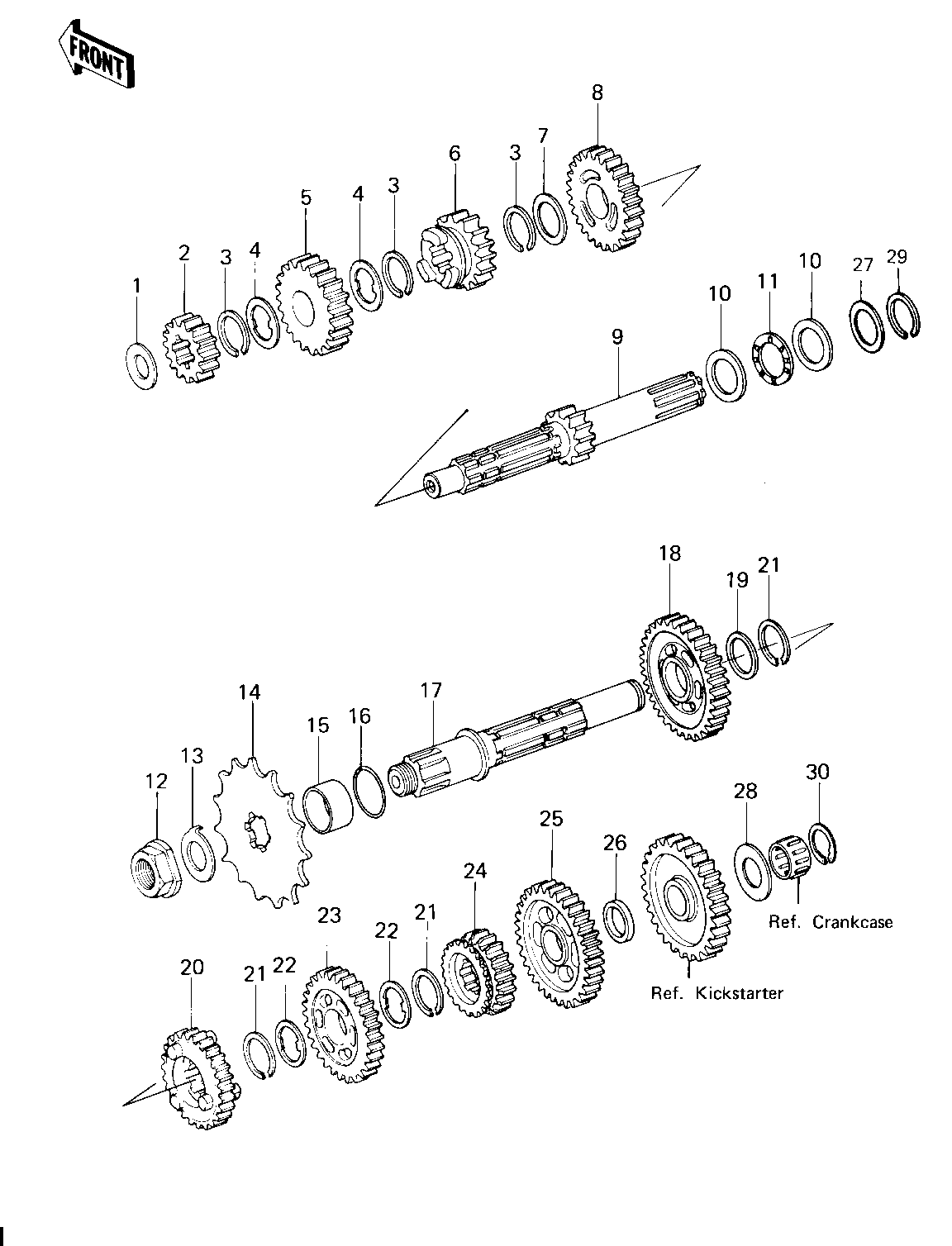

1981 KLT200 - TRANSMISSION ('81-'82 KLT200-A1/A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER,THRUST,15MM | 1 | 92022-279 | 1 | ||
| 2ND GEAR,DRIVE SHAFT | 2 | 13129-1022 | 1 | ||
| CIRCLIP,25MM | 3 | 92033-025 | 3 | ||
| WASHER-LOCK | 4 | 92024-039 | 2 | ||
| 4TH GEAR,DRIVE SHAFT | 5 | 13134-026 | 1 | ||
| GEAR,INPUT,3RD,20T | 6 | 13129-1284 | 1 | -E/NO. 052013 | |
| WASHER-PLAIN | 7 | 92022-198 | 1 | ||
| TOP GEAR,DRIVE SHAFT | 8 | 13136-057 | 1 | ||
| SHAFT,DRIVE | 9 | 13127-053 | 1 | ||
| WASHER,PLAIN | 10 | 92022-314 | 2 | ||
| BRG,NEEDLE,AXK1104 | 11 | 92046-052 | 1 | ||
| NUT,LOCK,16M/M | 12 | 92015-1013 | 1 | ||
| WASHER,LOCK | 13 | 92022-1017 | 1 | ||
| SPROCKET-OUTPUT,13T | 14 | 13144-1038 | 1 | ||
| SPROCKET-OUTPUT,12T | 14 | 13144-1039 | (1 | ||
| COLLAR,ENGINE SPROCKT | 15 | 92027-287 | 1 | ||
| "0" RING | 16 | 92055-022 | 1 | ||
| SHAFT,OUTPUT | 17 | 13128-1007 | 1 | ||
| 2ND GEAR,OUTPUT 26T | 18 | 13131-044 | 1 | ||
| WASHER-PLAIN | 19 | 92022-198 | 1 | ||
| GEAR,OUTPUT 4TH,21T | 20 | 13129-1285 | 1 | -E/NO. 052013 | |
| CIRCLIP,25MM | 21 | 92033-025 | 3 | ||
| WASHER-LOCK | 22 | 92024-039 | 2 | ||
| 3RD GEAR,OUTPUT SHAFT | 23 | 13133-044 | 1 | ||
| TOP GEAR,OUTPUT SHAFT | 24 | 13137-037 | 1 | ||
| LOW GEAR,OUTPUT SHAFT | 25 | 13129-058 | 1 | ||
| SPACER | 26 | 92026-114 | 1 | ||
| WASHER THRUST | 27 | 92022-112 | 1 | ||
| WASHER,PLAIN | 28 | 92022-270 | 1 | ||
| CIRCLIP,18MM | 29 | 92033-029 | 1 | ||
| CIRCLIP,16MM | 30 | 92033-032 | 1 |
