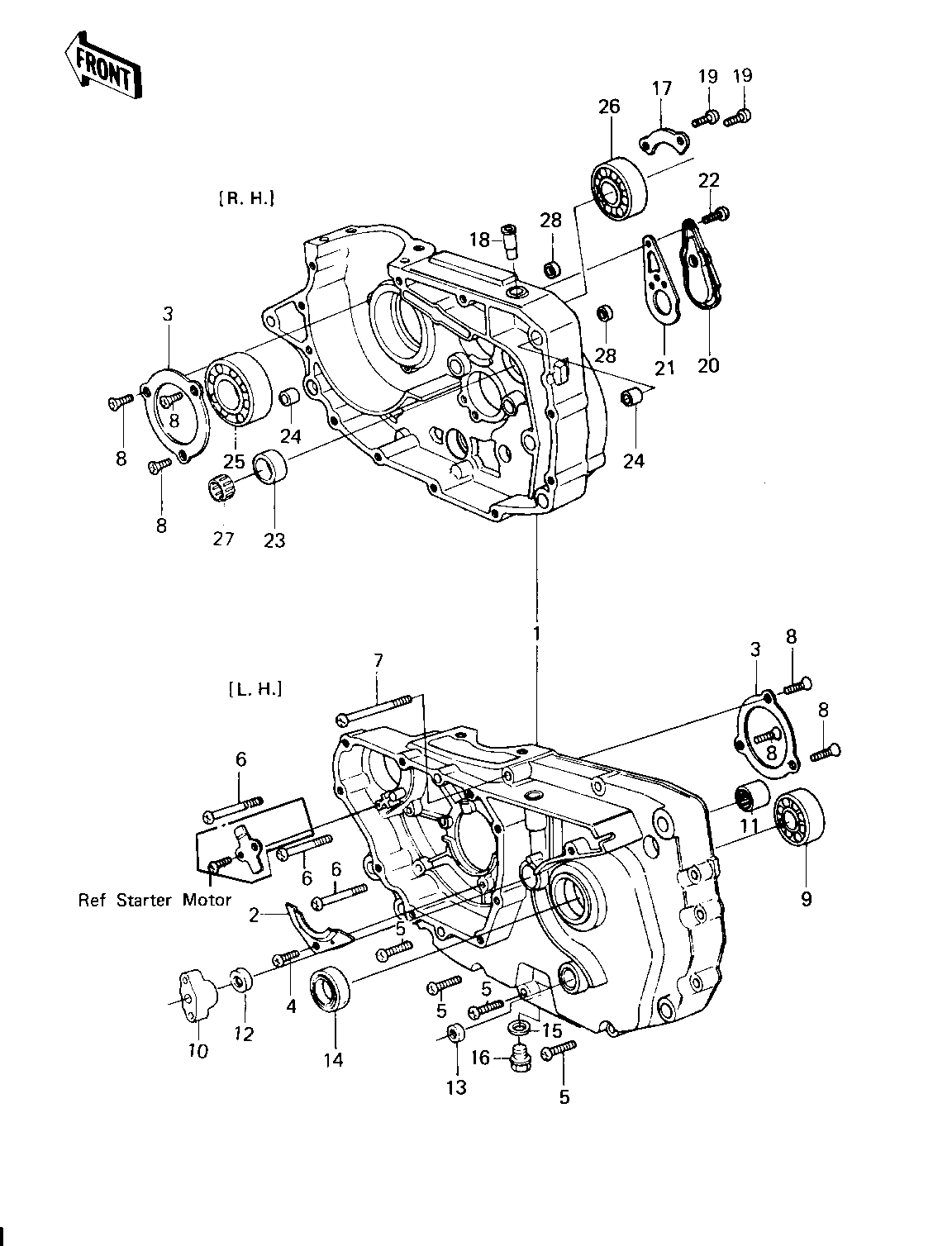

1981 KLT200 - CRANKCASE ('81-'82 KLT200-A1/A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKCASE SET,F.BLACK | 1 | 14001-5078 | 1 | ||
| PLATE,POSITIONING | 2 | 14014-035 | 1 | ||
| PLATE,POSITIONING | 3 | 14014-1004 | 2 | ||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | 1 | ||
| SCREW PAN HEAD 6X30 | 5 | 220B0630 | 8 | ||
| SCREW PAN HEAD 6X55 | 6 | 220B0655 | 3 | ||
| SCREW PAN HEAD 6X75 | 7 | 220B0675 | 1 | ||
| SCREW CNTSNK HD 6X16 | 8 | 221B0616 | 6 | ||
| BEARING BALL #6205 | 9 | 601B6205 | 1 | ||
| COLLAR,PUSH ROD | 10 | 92027-1467 | 1 | ||
| BRG,NEEDLE,HMK1515B | 11 | 92046-060 | 1 | ||
| OIL SEAL,PUSH ROD | 12 | 92050-077 | 1 | ||
| OIL SEAL,CHANGE SHAFT | 13 | 92050-082 | 1 | ||
| SEAL-OIL,TC32457 | 14 | 92049-1159 | 1 | ||
| GASKET,DRIN PLUG | 15 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 16 | 92066-1174 | 1 | ||
| PLATE,POSITIONING | 17 | 14014-037 | 1 | ||
| BREATHER JOINT | 18 | 14067-006 | 1 | ||
| SCREW PAN HEAD 6X14 | 19 | 220B0614 | 2 | ||
| CAP | 20 | 16078-002 | 1 | ||
| GASKET | 21 | 16079-002 | 1 | ||
| SCREW PAN HEAD 6X14 | 22 | 220B0614 | 1 | ||
| BUSHING | 23 | 92028-132 | 1 | ||
| PIN,DOWEL,14MM | 24 | 92042-032 | 2 | ||
| BEARING,BALL,#6306 | 25 | 92045-037 | 1 | ||
| BEARING,BALL#6006 | 26 | 92045-038 | 1 | ||
| BEARING-NEEDLE | 27 | 92046-1184 | 1 | ||
| PLUG | 28 | 92066-1282 | 2 |
