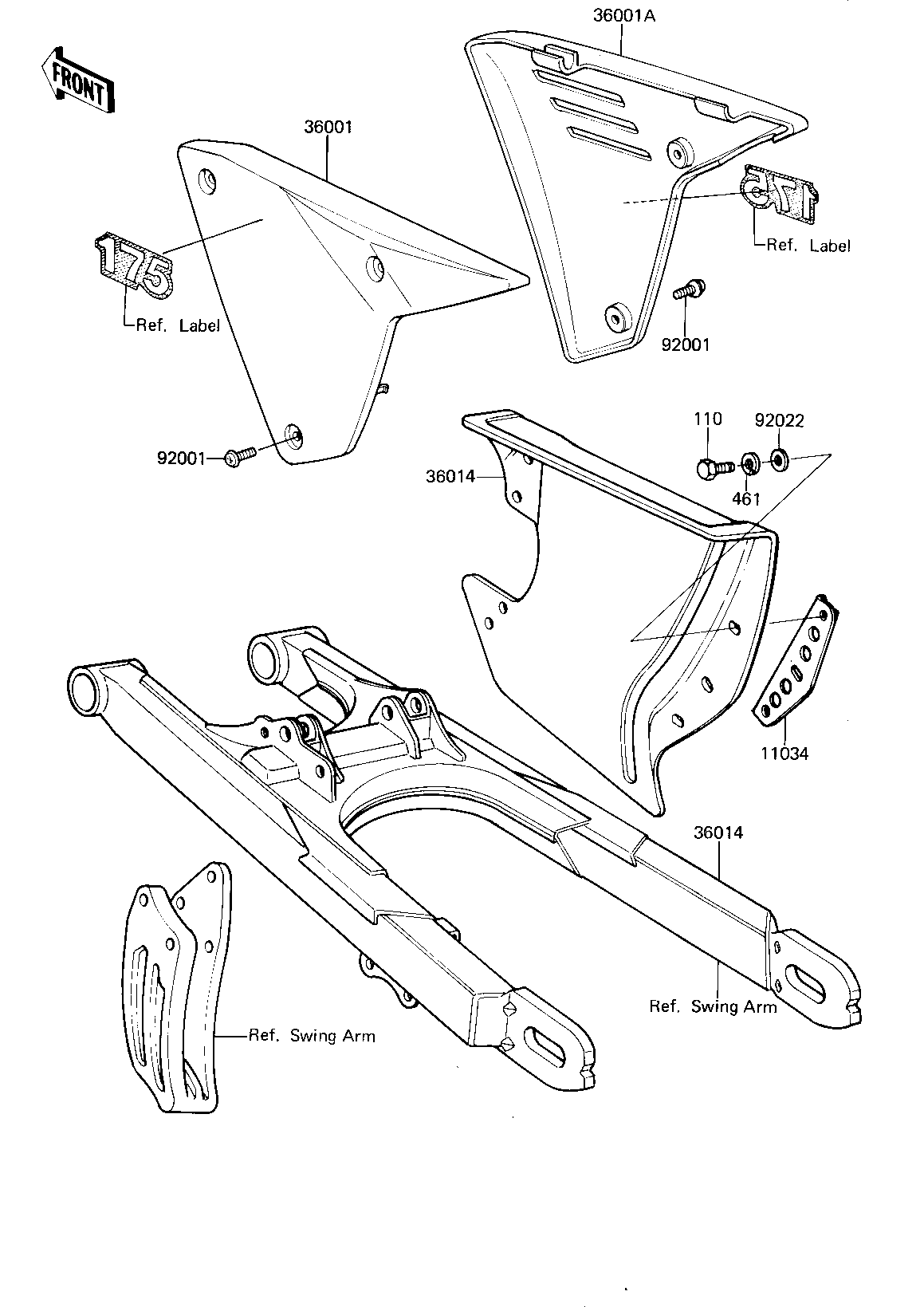

1982 KDX175 - SIDE COVERS/CHAIN COVER ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN CASE,F | 11034 | 11034-1841 | 1 | ||
| COVER,SIDE,LH,L.GREE | 36001 | 36001-1087-6W | 1 | ||
| COVER-SIDE,L.GREEN | 36001A | 36001-1105-6W | 1 | ||
| CASE-CHAIN | 36014 | 36014-1029 | 1 | ||
| SCREW,6X14 | 92001 | 92009-1287 | 5 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 |
