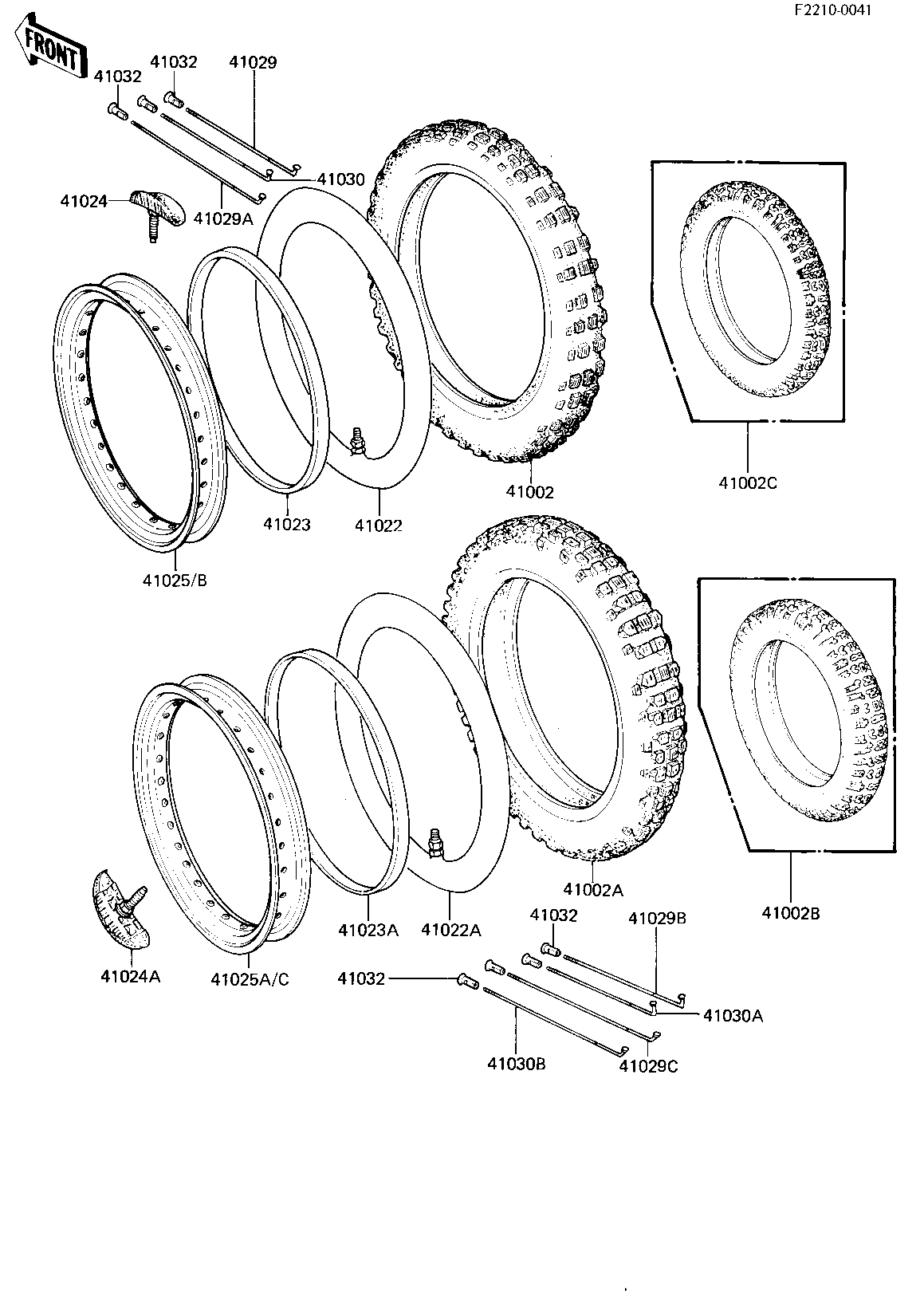

1982 KDX175 - WHEELS/TIRES ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 41022 | 41022-1023 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 41022A | 41022-1024 | 1 | ||
| BAND,RIM | 41023 | 41023-1009 | 1 | ||
| BAND,RIM | 41023A | 41023-1010 | 1 | ||
| PROTECTOR,BEAD 1.60A | 41024 | 41024-010 | 1 | ||
| PROTECTOR,BEAD,1.85B | 41024A | 41024-011 | 2 | ||
| SPOKE,FRONT,INNER,L. | 41029 | 41029-1019 | 9 | ||
| SPOKE,FRONT,INNER,R. | 41029A | 41029-1020 | 18 | ||
| SPOKE,REAR,INNER,R.H | 41029B | 41029-1021 | 9 | ||
| SPOKE,REAR,INNER,L.H | 41029C | 41029-1022 | 9 | ||
| SPOKE,FRONT,OUTER,L. | 41030 | 41030-1016 | 9 | ||
| SPOKE,REAR,OUTER,R.H | 41030A | 41030-1017 | 9 | ||
| SPOKE,REAR,OUTER,L.H | 41030B | 41030-1018 | 9 | ||
| NIPPLE,SPOKE | 41032 | 41032-1001 | 72 |
