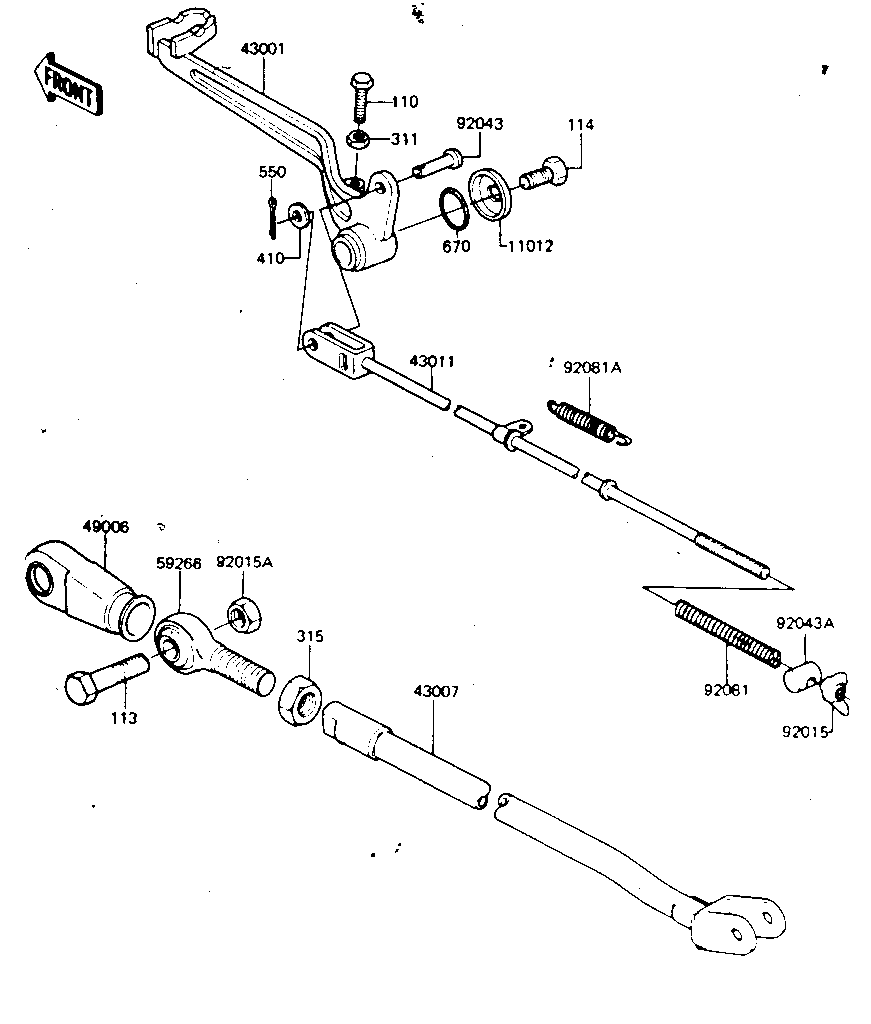

1982 KDX175 - BRAKE PEDAL/TORQUE LINK ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,BRAKE PEDAL FITT | 11012 | 11012-1116 | 1 | ||
| PEDAL,BRAKE | 43001 | 43001-1043 | 1 | ||
| TORQUE LINK,RR BRAKE | 43007 | 43007-1018 | 1 | ||
| ROD,BRAKE | 43011 | 43011-1019 | 1 | ||
| BOOT,BALL JOINT | 49006 | 49006-1035 | 1 | ||
| JOINT,BALL,TORQUE RN | 59266 | 59266-1003 | 1 | ||
| NUT,WING,6M/M | 92015 | 92015-4004 | 1 | ||
| NUT-LOCK,12MM | 92015A | 92019-009 | 1 | ||
| PIN-BRAKE ROD FITTIN | 92043 | 92043-064 | 1 | ||
| PIN,BRAKE | 92043A | 92043-1024 | 1 | ||
| SPRING,BRAKE ROD | 92081 | 43012-001 | 1 | ||
| SPRING RETURN | 92081A | 92081-1059 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 | ||
| BOLT,HEX HEAD,12X35 | 113 | 113P1235A | 1 | ||
| BOLT SMALL | 114 | 114G0812 | 1 | ||
| NUT 6MM | 311 | 311B0600 | 1 | ||
| NUT-HEX-FINE,12MM | 315 | 315B1200 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 1 | ||
| "0" RING,18MM | 670 | 670B2018 | 1 |
| CAP,BRAKE PEDAL FITT | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 43001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TORQUE LINK,RR BRAKE | |
| REF # | 43007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,BRAKE | |
| REF # | 43011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,BALL JOINT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT,BALL,TORQUE RN | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WING,6M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD FITTIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,BRAKE | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE ROD | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING RETURN | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,12X35 | |
| REF # | 113 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT SMALL | |
| REF # | 114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE,12MM | |
| REF # | 315 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,18MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
