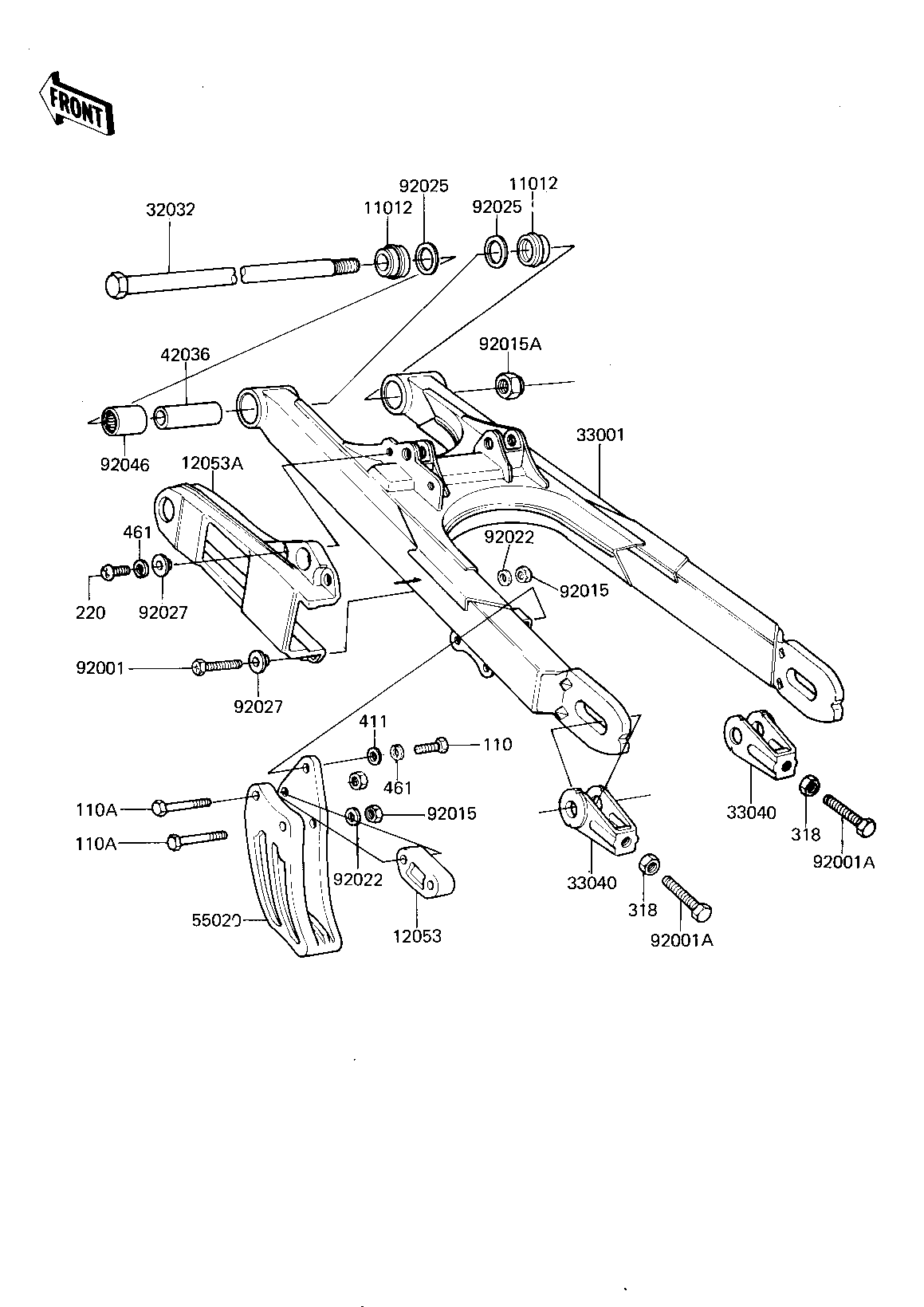

1982 KDX175 - SWING ARM ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1099 | 4 | ||
| GUIDE,CHAIN,REAR | 12053 | 12053-1039 | 1 | ||
| GUIDE,CHAIN,FRONT | 12053A | 12053-1043 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-1069 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1020 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-043 | 2 | ||
| SLEEVE,SWING ARM | 42036 | 42036-1031 | 2 | ||
| GUARD,CHAIN | 55020 | 55020-1038 | 1 | ||
| BOLT,6X20,FUEL TAP | 92001 | 92001-1091 | 2 | ||
| BOLT,8X50 | 92001A | 92001-1399 | 2 | ||
| NUT | 92015 | 92019-008 | 4 | ||
| NUT-LOCK,14MM | 92015A | 92019-011 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 3 | ||
| SHIM,SWING ARM | 92025 | 92025-1116 | 4 | ||
| COLLAR | 92027 | 92027-1260 | 4 | ||
| BRG,NEEDLE,HMK2030 | 92046 | 92046-1031 | 2 | ||
| BOLT-UPSET | 110 | 112G0625 | 2 | ||
| BOLT-UPSET | 110A | 112G0660 | 2 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
| NUT 8MM | 318 | 318B0800 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
