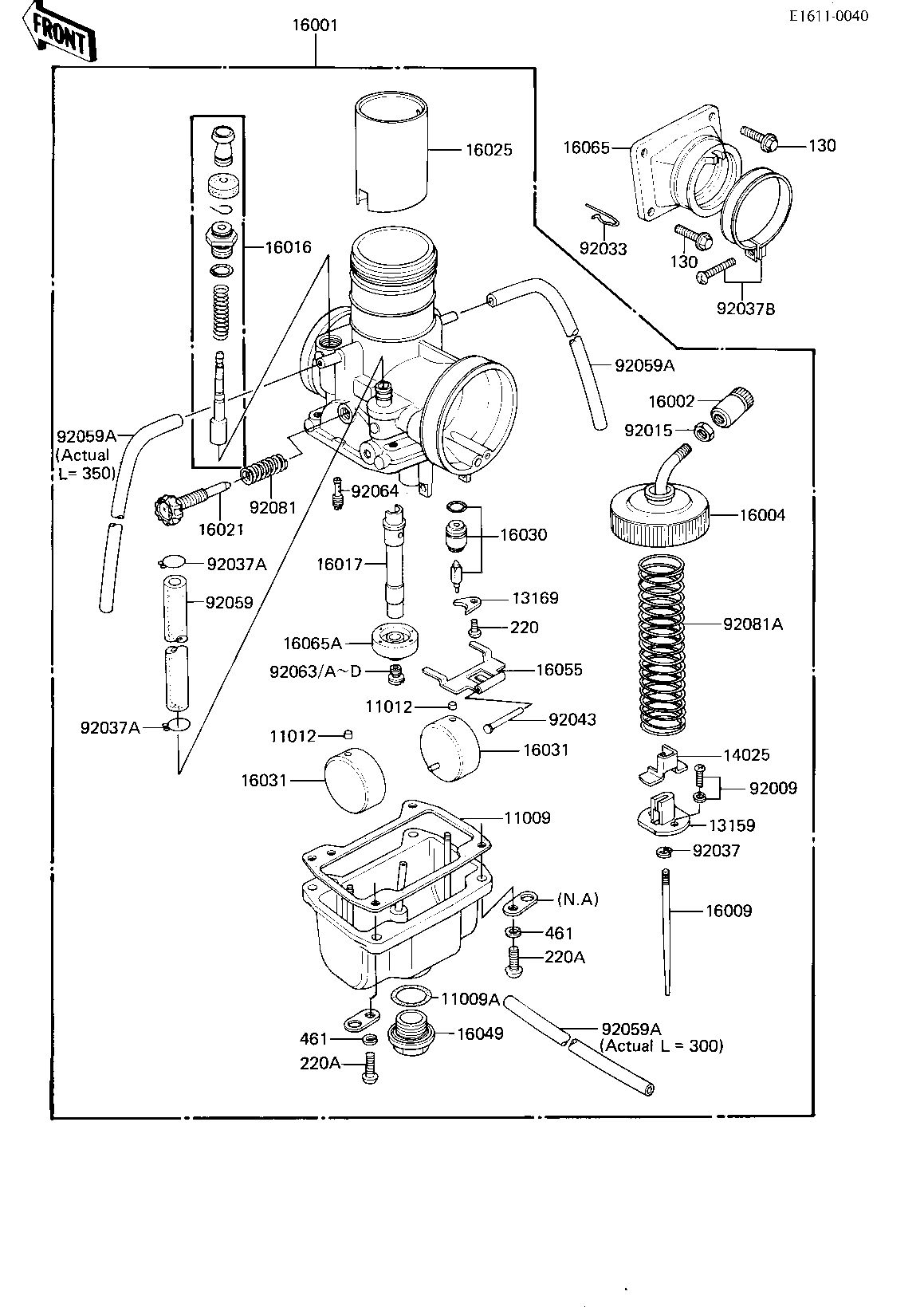

1982 KDX175 - CARBURETOR (KDX175-A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1275 1
GASKET-COVER 11009A 16038-009 1
CAP,FLOAT 11012 11012-1047 2
CONNECTOR,THROTTLE 13159 13159-1010 1
PLATE, LOCK 13169 13169-1190 1
COVER,THROTTLE,VALVE 14025 14025-1113 1
CARBURETOR 16001 16001-1478 1
ADJUSTER,CABLE 16002 16002-1006 1
CAP-CHAMBER,MIXING 16004 16004-1013 1
NEEDLE-JET,5F53 16009 16009-1136 1
PLUNGER,STARTER 16016 16016-1026 1
JET-NEEDLE,R-2 16017 16017-1128 1
SCREW,THROTTLE STOP 16021 16021-1034 1
VALVE-THROTTLE,CA3.0 16025 16025-1063 1
VALVE-FLOAT,3.3 16030 16030-1020 1
FLOAT 16031 16031-029 2
COVER,MAIN JET 16049 16049-006 1
ARM,FLOAT 16055 16055-009 1
HOLDER-CARBURETOR 16065 16065-1049 1
HOLDER-CARBURETOR 16065A 16065-1052 1
SCREW,3X8 92009 92009-1132 2
NUT CABLE ADJUST LOC 92015 16003-004 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CLAMP,CARB CONECT HO 92037A 92037-056 2
CLAMP,CARBURETOR HOL 92037B 92037-1484 1
PIN,FLOAT 92043 16032-008 1
HOSE,FUEL,6.5OX11.5O 92059 92059-1026 1
TUBE,3.5X6.5X410 92059A 92059-1142 3
MAIN JET,#160R 92063 92063-1018 1 (RACING USE ONLY)
MAIN JET,#162.5R 92063A 92063-1019 1 (RACING USE ONLY)
MAIN JET,#155R 92063B 92063-1025 1 (RACING USE ONLY)
MAIN JET,#157.5R 92063C 92063-1026 1
JET-MAIN NO 152.5R 92063D 92063-121 1 (RACING USE ONLY)
JET-PILOT NO 20 92064 92064-021 1
SPRING,THRTL STP SCR 92081 92081-1200 1
SPRING,THROTTLE VALV 92081A 92081-1432 1
BOLT,FLANGED,6X20 130 130G0620 4
SCREW PAN HEAD 4X6 220 220B0406 1
UNAVAILABLE IN PRICE BOOK 220A 214B0516A 4
WASHER SPRING 5MM 461 461F0500 4
