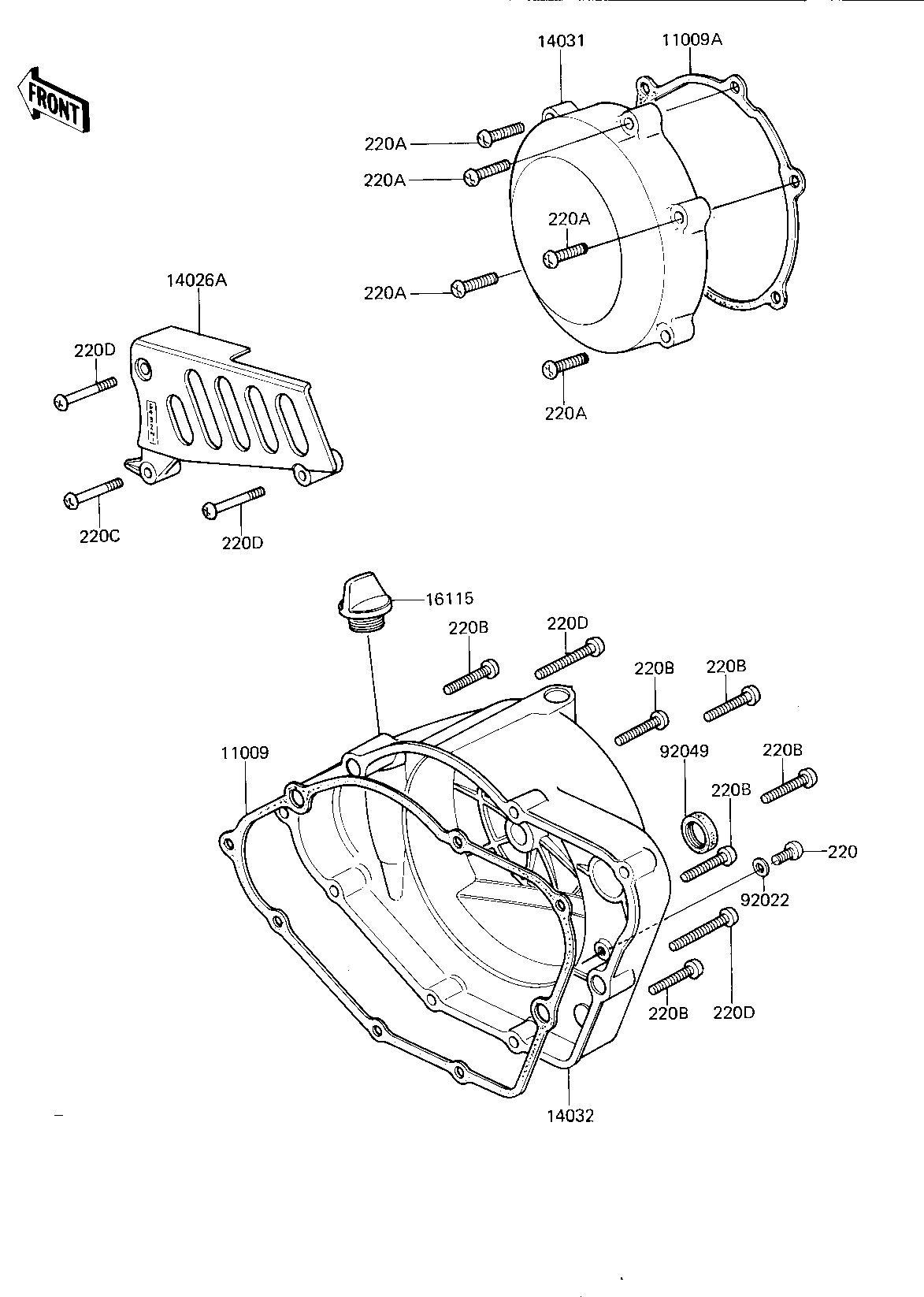

1982 KDX175 - ENGINE COVERS ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,R.H ENGIN CVE | 11009 | 11009-1040 | 1 | ||
| GASKET,LH,ENGINE COV | 11009A | 11009-1177 | 1 | ||
| COVER,FRONT CHAIN | 14026A | 14026-1012-21 | 1 | ||
| COVER,LH.ENGINE,F.BL | 14031 | 14031-1048 | 1 | ||
| COVER,RH,ENGINE,F.BL | 14032 | 14032-1034 | 1 | ||
| FILLER,OIL | 16115 | 16115-018 | 1 | ||
| WASHER OIL PUMP BANJ | 92022 | 92022-077 | 1 | ||
| OIL SEAL SB16244 | 92049 | 92049-002 | 1 | ||
| SCREW PAN HEAD 6X8 | 220 | 220B0608 | 1 | ||
| SCREW PAN HEAD 6X25 | 220A | 220B0625 | 5 | ||
| SCREW PAN HEAD 6X28 | 220B | 220B0628 | 6 | ||
| SCREW PAN HEAD 6X35 | 220C | 220B0635 | 3 | ||
| SCREW PAN HEAD 6X40 | 220D | 220B0640 | 2 |
