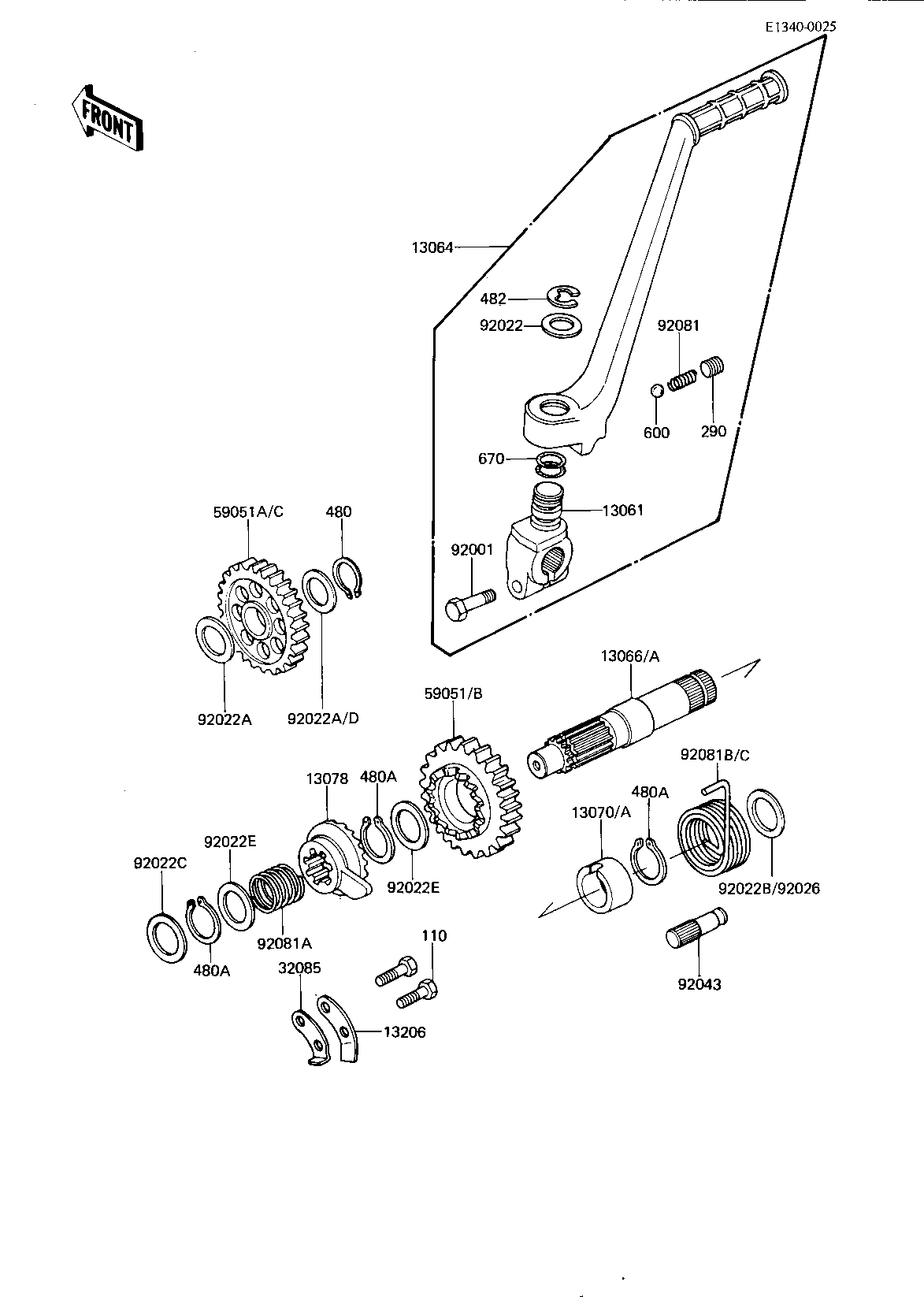

1982 KDX175 - KICKSTARTER MECHANISM ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061 | 13061-5001 | 1 | ||
| LEVER-ASSY-KICK PEDA | 13064 | 13064-5005 | 1 | ||
| SHAFT,KICKSTARTER | 13066 | 13066-1014 | 1 | ||
| GUIDE,KICK SPRING | 13070A | 13070-1063 | 1 | ||
| RATCHET,KL250-D2 | 13078 | 13078-1052 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1059 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1016 | 1 | ||
| GEAR-SPUR,KICK,26T | 59051B | 59051-1040 | 1 | ||
| GEAR-SPUR,KICK,30T | 59051C | 59051-1041 | 1 | ||
| BOLT,HEX HEAD,8X28 | 92001 | 92001-1042 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-1019 | 1 | ||
| WASHER,PLAIN | 92022C | 92022-269 | 1 | ||
| WASHER,THRUST,15MM | 92022D | 92022-279 | 1 | ||
| WASHER,PLAIN | 92022E | 92022-315 | 2 | ||
| SPACER,17.2X23X0.5 | 92026 | 92026-1037 | 1 | ||
| PIN | 92043 | 92043-102 | 1 | ||
| SPRING KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICK | 92081B | 92081-1450 | 1 | ||
| BOLT-UPSET | 110 | 112G0618 | 2 | ||
| SCREW-SET-SOCKET,8X8 | 290 | 290G0808 | 1 | ||
| CIRCLIP 15MM | 480 | 480J1500 | 1 | ||
| CIRCLIP 16MM | 480A | 480J1600 | 2 | ||
| CIR CLIP | 482 | 482K0100 | 1 | ||
| BALL STEEL 1/4' | 600 | 600A0800 | 1 | ||
| "O" RING,12MM | 670 | 670B2012 | 2 |
| BOSS,KICK PEDAL | |
| REF # | 13061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK PEDA | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,KICKSTARTER | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SPRING | |
| REF # | 13070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,KL250-D2 | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICK,26T | |
| REF # | 59051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICK,30T | |
| REF # | 59051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X28 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,15MM | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER,17.2X23X0.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING KICK PEDAL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-SET-SOCKET,8X8 | |
| REF # | 290 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 15MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 16MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIR CLIP | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
