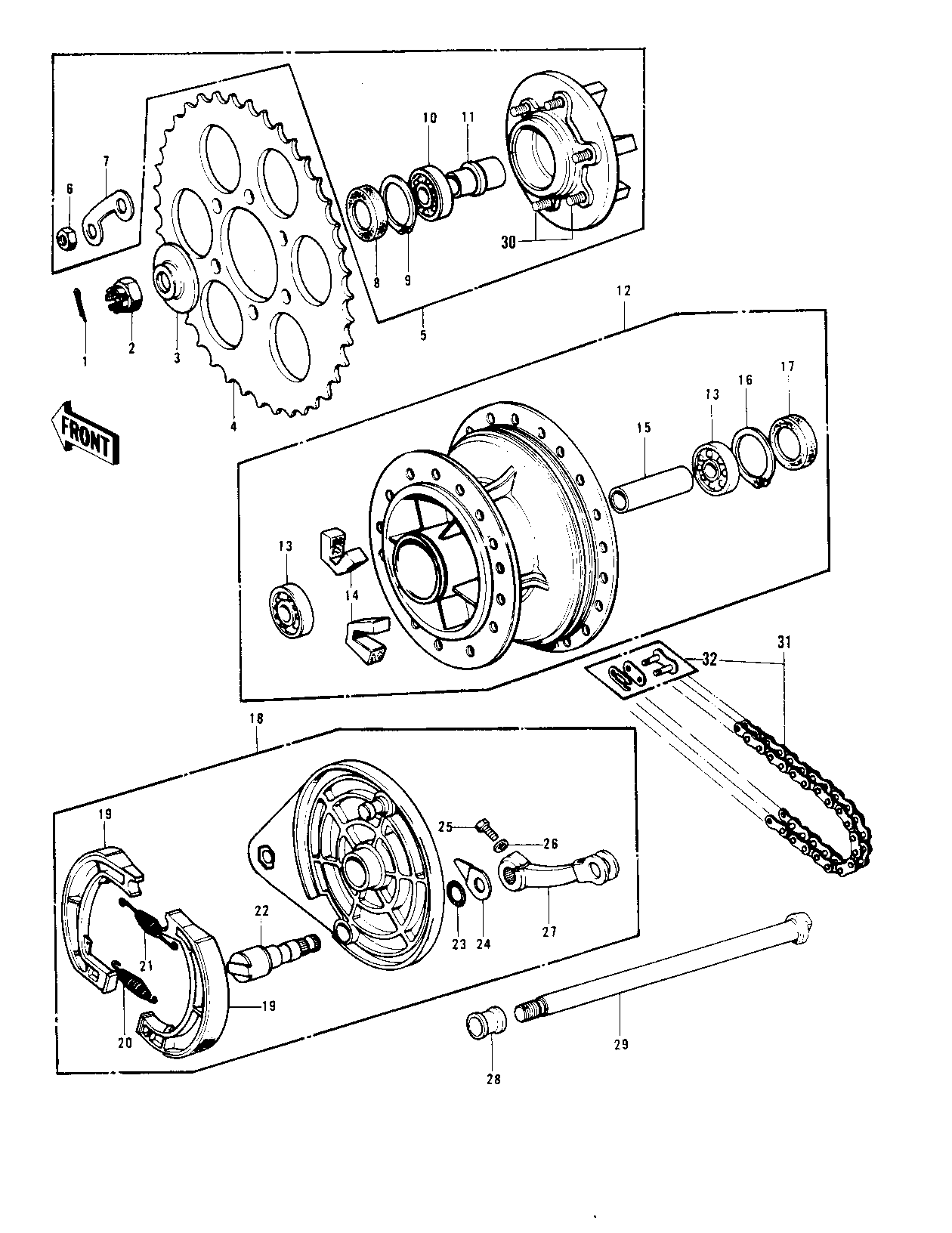

1977 KD175-A2 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035
NUT CASTLE 14MM 2 92103-006
COLLAR,RR AXLE,L.H 3 42032-058
REAR SPROCKET,48T 4 42041-159 STD
REAR SPROCKET 47T 4 42041-136 OPTION
REAR SPROCKET.50T 4 42041-146 OPTION
REAR SPROCKET,54T 4 42041-147 OPTION
COUPLING ASSY,RR HUB 5 42008-031
NUT,8MM 6 311B0800
WASHER,SPROCKET LOCK 7 92088-019
OIL SEAL,RR HUB BRNG 8 92050-060
CIRCLIP,42MM 9 92033-1041
BEARING BALL #6004 10 601B6004
SLEEVE,RR HUB COUPLNG 11 42036-018
DRUM ASY,RR BRK,BUFF 12 42005-046-80
BEARING BALL #6202 13 601B6202
DAMPER,REAR HUB SHOCK 14 42014-023
SPACER,RR HUB BEARING 15 42010-029
CIRCLIP,35MM 16 481J3500
OIL SEAL,TCY22358 17 654A223508
PANEL-ASY,RR BRK,BUFF 18 42006-072-80
SHOE,BRAKE 19 42019-010
SPRING,BRAKE SHOE 20 92081-1550
SPRING,BRAKE SHOE 21 92081-1766
CAM SHAFT,REAR BRAKE 22 42026-025
"0" RING,11MM 23 92055-004
INDICATOR,FR BRK PNL 24 41085-002
BOLT 6X22 25 112B0622
WASHER PLAIN 6MM 26 410B0600
LEVER,REAR BRAKE CAM 27 42029-030
COLLAR,RR AXLE,R.H 28 42032-057
AXLE,REAR 29 42031-046
STUD,8X17 30 92004-1015
DR CHAIN 428X120H 31 92057-098 EK428SH
JOINT-CHAIN 32 92058-1015
