Parts Diagrams |

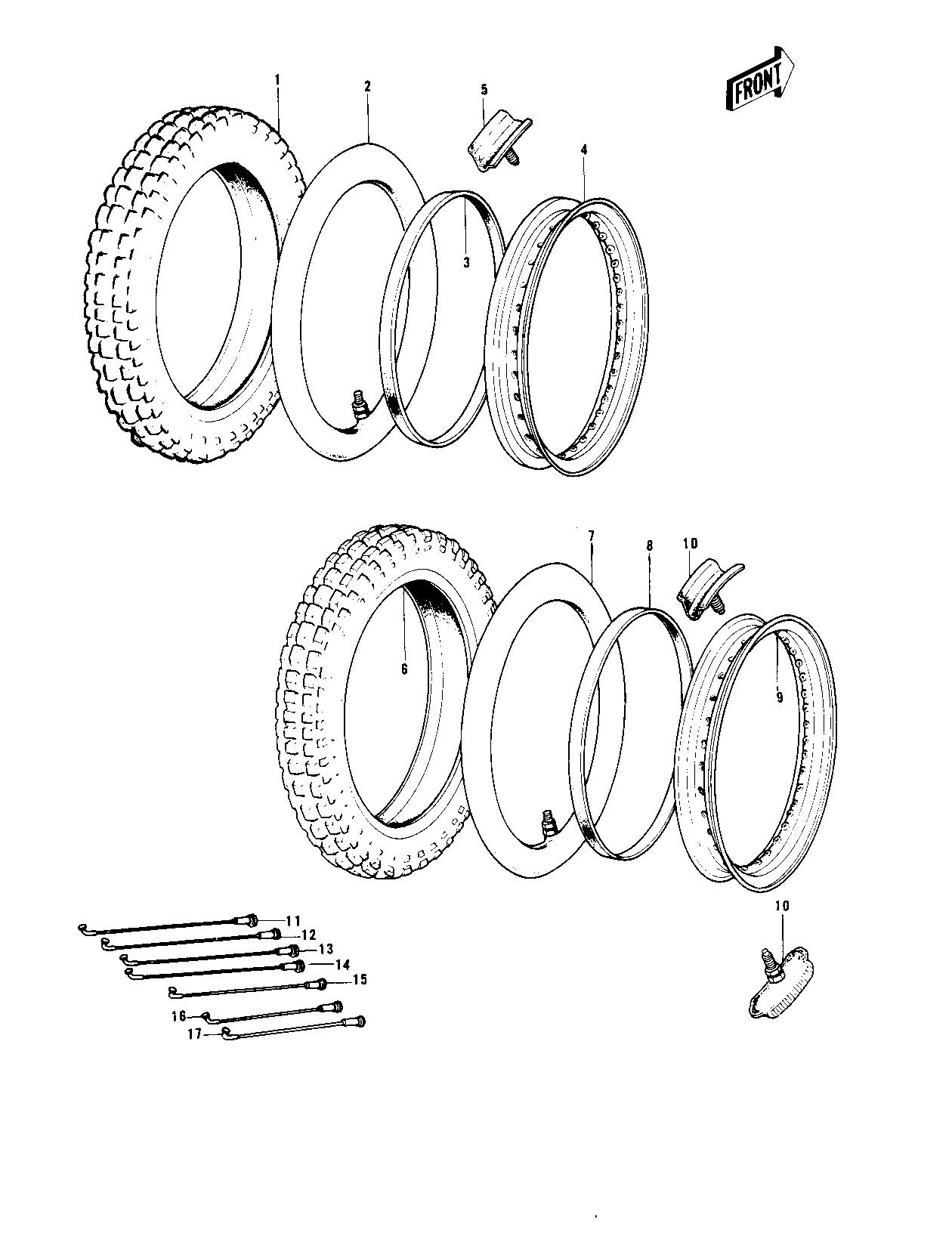

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-21 Y965 F | 1 | 41002-1215 | |||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | |||
| BAND,RIM,3.00-21 | 3 | 41023-1001 | |||
| RIM,1.60AX21E | 4 | 41025-076 | |||
| PROTECTOR,BEAD 1.60A | 5 | 41024-010 | |||
| TIRE 350-18 Y962 R | 6 | 41002-1216 | |||
| TUBE 300/325/360-18 | 7 | 41022-028 | |||
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | |||
| RIM,1.85BX18E | 9 | 41025-077 | |||
| PROTECTOR,BEAD,1.85B | 10 | 41024-011 | |||
| SPOKE-ASY,FR INNER | 11 | 41027-068 | 98.3 X 227 MM | ||
| SPOKE-ASY FR OUTER | 12 | 41028-068 | 85.3 X 227 MM | ||
| SPOKE-ASY,FR | 13 | 41027-069 | 90 X 239.5 MM | ||
| SPOKE-ASY,RR INNER L | 14 | 41027-070 | 106 X 171 MM | ||
| SPOKE-ASY RR OUTER L | 15 | 41028-069 | 80 X 170 MM | ||
| SPOKE-ASY,RR INNER R | 16 | 41027-071 | 108 X 167.5 MM | ||
| SPOKE-ASY RR OUTER R | 17 | 41028-070 | 80 X 166.5 MM |
| TIRE 275-21 Y965 F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.60AX21E | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD 1.60A | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TIRE 350-18 Y962 R | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TUBE 300/325/360-18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.85BX18E | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 98.3 X 227 MM |
| SPOKE-ASY FR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 85.3 X 227 MM |
| SPOKE-ASY,FR | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 90 X 239.5 MM |
| SPOKE-ASY,RR INNER L | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 106 X 171 MM |
| SPOKE-ASY RR OUTER L | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 80 X 170 MM |
| SPOKE-ASY,RR INNER R | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 108 X 167.5 MM |
| SPOKE-ASY RR OUTER R | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 80 X 166.5 MM |
