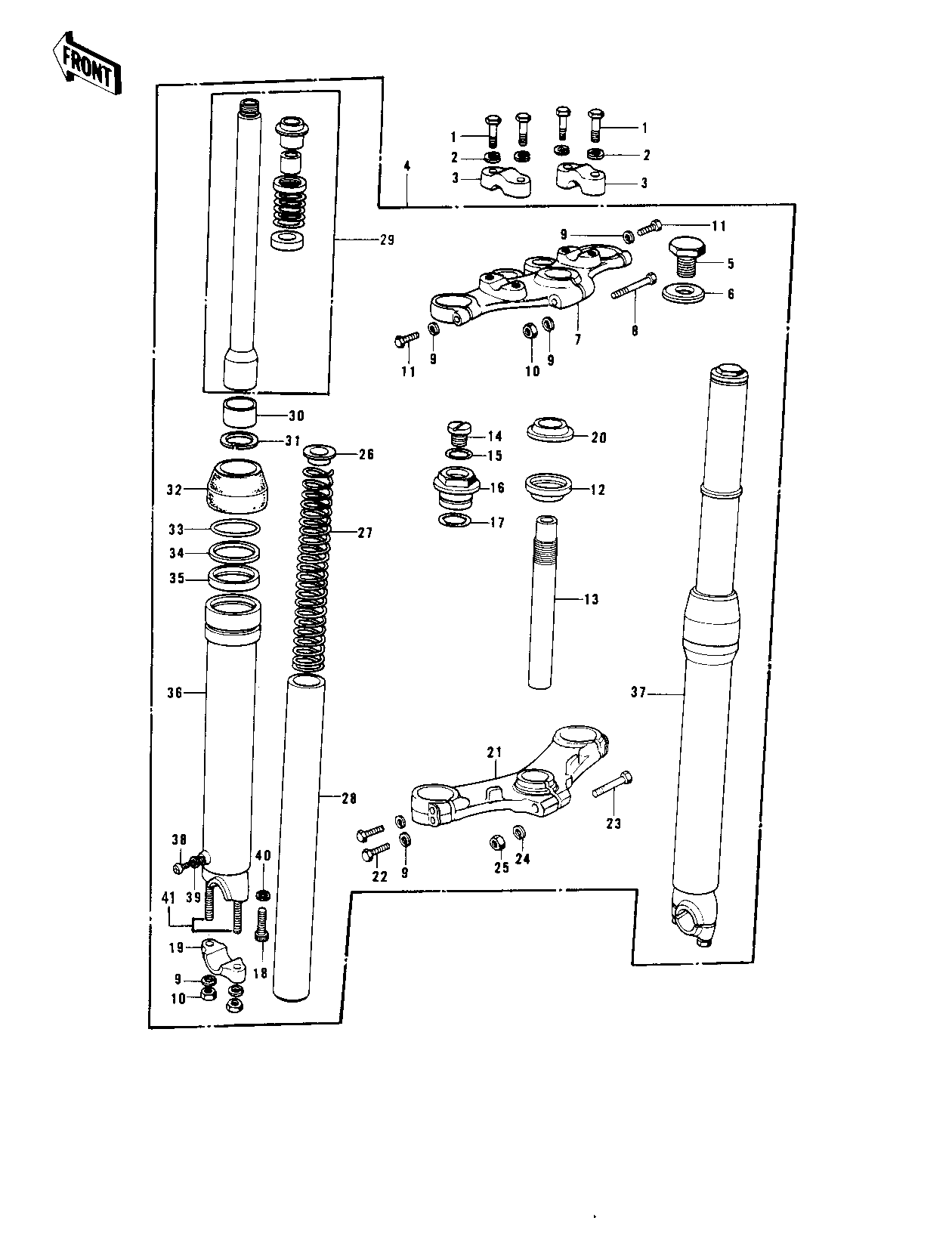

1977 KD175-A2 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 8X38 1 92001-1405
WASHER SPRING 8MM 2 461F0800
HOLDER,HANDLEBAR 3 46012-014
FORK-FRONT 4 44001-192
BOLT STRNG STEM HEAD 5 44041-007
WASHER STRNG STEM HD 6 44043-016
HEAD,STEERING STEM 7 44039-068
BOLT,FORK TOP 8 44041-065
WASHER SPRING 8MM 9 461F0800
NUT,8MM 10 311B0800
BOLT-STEERING STEM HD 11 44041-044
DUST SHIELD-STRNG STM 12 44010-020
SHAFT,STEERING STEM 13 44052-011
SCREW,TOP BOLT 14 44041-082
"O" RING 15 44046-024
BOLT,FORK TOP 16 44032-013
'O' RING FORK FIT BLT 17 44046-013
BOLT-FORK CYLINDER 18 44041-040
HOLDER,FORK AXLE 19 44063-013
CONE STERNG BERG LOW 20 92047-010
STEM,STEERING 21 44038-010
BOLT HEX HEAD 8X35 22 110N0835
BOLT-STEERING STEM HD 23 44041-042
WASHER SPRING 10MM 24 461F1000
NUT (10MM) 25 311B1000
GUIDE,FORK SPRING 26 44028-038
SPRING,FORK 27 44026-069
TUBE,FORK INNER 28 44013-056
CYLINDER-FORK 29 44022-036
PISTON,FORK 30 44018-010
CIRCLIP,26MM 31 481J2600
DUST SHIELD 32 44010-033
CIRCLIP,FORK OUT TUB 33 44044-022
WASHER 34 44043-059
OIL SEAL 35 44009-025
TUBE,LH,FORK OUTER 36 44005-062
TUBE,RH,FORK OUTER 37 44006-060
SCREW PAN HEAD 4X8 38 220B0408
GASKET FORK DRAIN PLG 39 44045-002
GASKET,FORK CYLINDER 40 44045-057
STUD 8X30 41 172G0830
