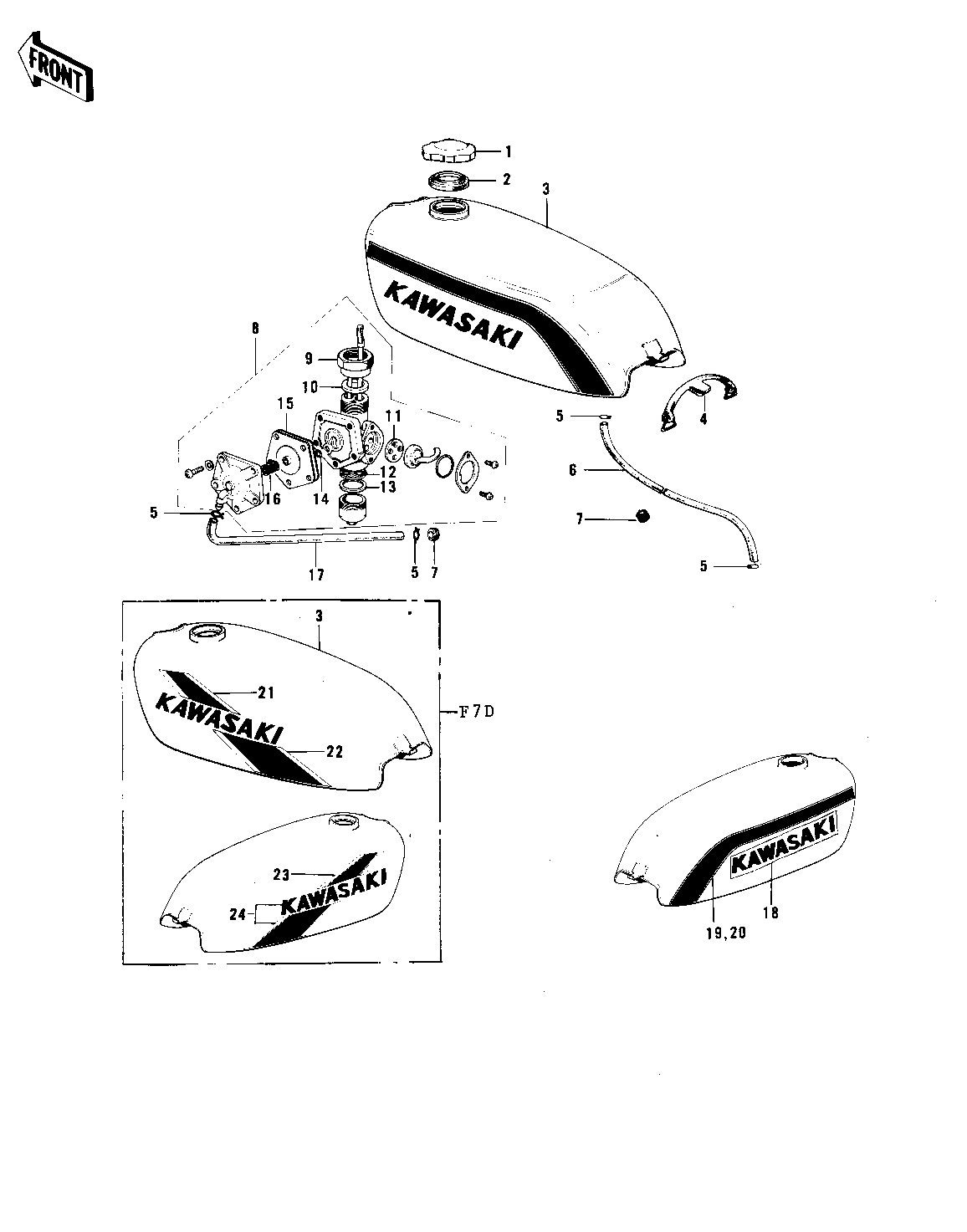

1971 F7 - FUEL TANK ('74-'75 F7-C/F6-D)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 1 | 51048-1013 | 1 | ||
| GASKET,FUEL TANK CAP | 2 | 51059-011 | 1 | ||
| TANK-FUEL,C.BLUE | 3 | 51001-079-1S | 1 | ||
| TANK-FUEL,M.SILVER | 3 | 51001-079-1W | 1 | ||
| TANK-FUEL,C.BROWN | 3 | 51001-079-3C | 1 | F7D LILAC BASE | |
| TANK-FUEL,C.GREEN | 3 | 51001-079-3B | 1 | F7D GREEN BASE | |
| BAND,FUEL TANK | 4 | 92072-064 | 1 | ||
| CLAMP FUEL PIPE | 5 | 92037-010 | 4 | ||
| PIPE,FUEL | 6 | 92059-093 | 1 | ||
| GROMMET PIPE | 7 | 92071-038 | 2 | ||
| COCK ASSY,FUEL | 8 | 51023-048 | 1 | ||
| COCK ASSY,FUEL | 8 | 51023-048 | 1 | F7D | |
| FUEL COCK JOINT NUT | 9 | 51035-008 | 1 | ||
| GASKET-FUEL COCK JONT | 10 | 92065-066 | 1 | ||
| GASKET-FUEL COCK LEV | 11 | 92065-065 | 1 | ||
| STRAINER FUEL | 12 | 51038-006 | 1 | ||
| GASKET FUEL COCK CUP | 13 | 51037-009 | 1 | ||
| GASKET | 14 | 92065-052 | 1 | ||
| DIAPHRAGM ASSY | 15 | 51069-002 | 1 | ||
| SPRING-DIAPHRAGM | 16 | 92081-072 | 1 | ||
| PIPE | 17 | 92059-065 | 1 | ||
| DECAL-FUEL TANK | 18 | 56013-051 | 1 | TRANSFER TYPE | |
| DECAL-FUEL TANK | 18 | 56013-051 | 1 | TRANSFER TYPE | |
| DECAL-FUEL TANK | 18 | 56013-051 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,LH | 19 | 56027-167 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,LH | 19 | 56027-167 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,LH | 19 | 56027-167 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,RH | 20 | 56027-168 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,RH | 20 | 56027-168 | 1 | TRANSFER TYPE | |
| DECAL,FL TK STRPE,RH | 20 | 56027-168 | 1 | TRANSFER TYPE | |
| DECAL,FUEL TANK,L.H | 21 | 56027-255-SP | 1 | F7D | |
| DECAL,FUEL TANK,L.H | 21 | 56027-255-SP | 1 | F7D | |
| DECAL,FUEL TANK,L.H | 21 | 56027-255-SP | 1 | F7D | |
| DECAL,FUEL TANK,L.H | 22 | 56027-256-SP | 1 | F7D | |
| DECAL,FUEL TANK,L.H | 22 | 56027-256-SP | 1 | F7D | |
| DECAL,FUEL TANK,L.H | 22 | 56027-256-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 23 | 56027-257-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 23 | 56027-257-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 23 | 56027-257-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 24 | 56027-258-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 24 | 56027-258-SP | 1 | F7D | |
| DECAL,FUEL TANK,R.H | 24 | 56027-258-SP | 1 | F7D |
| CAP,FUEL TANK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,C.BLUE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,M.SILVER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,C.BROWN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D LILAC BASE |
| TANK-FUEL,C.GREEN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D GREEN BASE |
| BAND,FUEL TANK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP FUEL PIPE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE,FUEL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET PIPE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COCK ASSY,FUEL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COCK ASSY,FUEL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| FUEL COCK JOINT NUT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL COCK JONT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL COCK LEV | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRAINER FUEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET FUEL COCK CUP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM ASSY | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-DIAPHRAGM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DECAL-FUEL TANK | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL-FUEL TANK | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL-FUEL TANK | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,LH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,LH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,LH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,RH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,RH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FL TK STRPE,RH | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,FUEL TANK,L.H | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,L.H | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,L.H | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,L.H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,L.H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,L.H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
| DECAL,FUEL TANK,R.H | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F7D |
