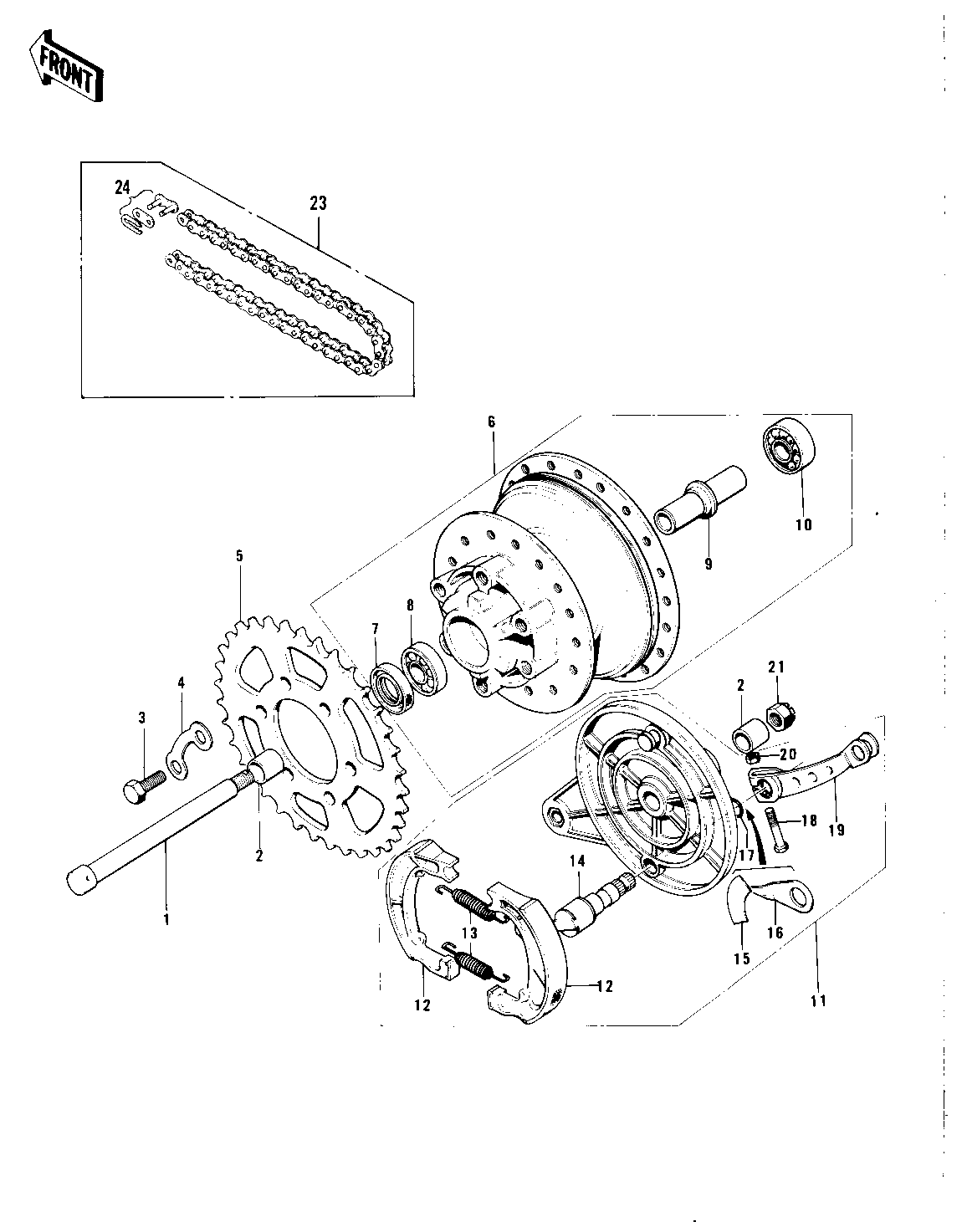

1971 F7 - REAR HUB/BRAKE/CHAIN ('74-'75 F7-C/F6-D)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE-REAR | 1 | 42031-037 | 1 | ||
| COLLAR-REAR AXLE | 2 | 42032-036 | 2 | L=13.7 MM | |
| BOLT-HEX HEAD,10X25 | 3 | 92001-087 | 6 | ||
| WASHER LOCK | 4 | 92088-007 | 3 | ||
| REAR SPROCKET 50T | 5 | 42041-085 | 1 | STD | |
| REAR SPROCKET,46T | 5 | 42041-084 | (1 | OPTION | |
| DRUM ASSY-REAR BRAKE | 6 | 42005-029 | 1 | F7-C | |
| DRUM ASY,RR BK,BUFF | 6 | 42005-029-80 | 1 | F7-D | |
| .OIL SEAL RR BRK DRUM | 7 | 92050-009 | 1 | ||
| .BEARING BALL #6302 | 8 | 601B6302 | 1 | ||
| .SPACER-RR HUB BEARING | 9 | 42010-019 | 1 | L=112 MM | |
| .BEARING BALL #6302Z | 10 | 601B6302Z | 1 | ||
| PANEL-ASY,RR BRK,BUFF | 11 | 42006-039-80 | 1 | ||
| .SHOE,BRAKE | 12 | 42019-010 | 2 | F7-C | |
| .SHOE,BRAKE | 12 | 42019-010 | 2 | F7-D | |
| .SPRING,BRAKE SHOE | 13 | 92081-1766 | 1 | ||
| .SPRING,BRAKE SHOE | 14 | 92081-1550 | 1 | ||
| .CAM SHAFT,REAR BRAKE | 15 | 42026-014 | 1 | F7-C | |
| .CAM SHAFT,REAR BRAKE | 15 | 42026-025 | 1 | F7-D | |
| .LABEL,BRAKE SHOE,RR | 16 | 41084-005 | 1 | ||
| .INDICATOR,BRAKE SHOE | 17 | 41085-012 | 1 | ||
| ."0" RING,11MM | 18 | 92055-004 | 1 | ||
| 3BOLT-UPSET | 19 | 112G0630 | 1 | ||
| .LEVER-REAR BRAKE CAM | 20 | 42029-023 | 1 | ||
| .NUT,6MM | 21 | 41072-007 | 1 | ||
| NUT CASTLE 14MM | 22 | 321B1400 | 1 | ||
| DR CHAIN 428X114H | 23 | 92057-033 | 1 | ||
| DR CHAIN 428X114H | 23 | 92057-033 | 1 | ||
| JOINT-CHAIN | 24 | 92058-1015 | 1 |
