Parts Diagrams |

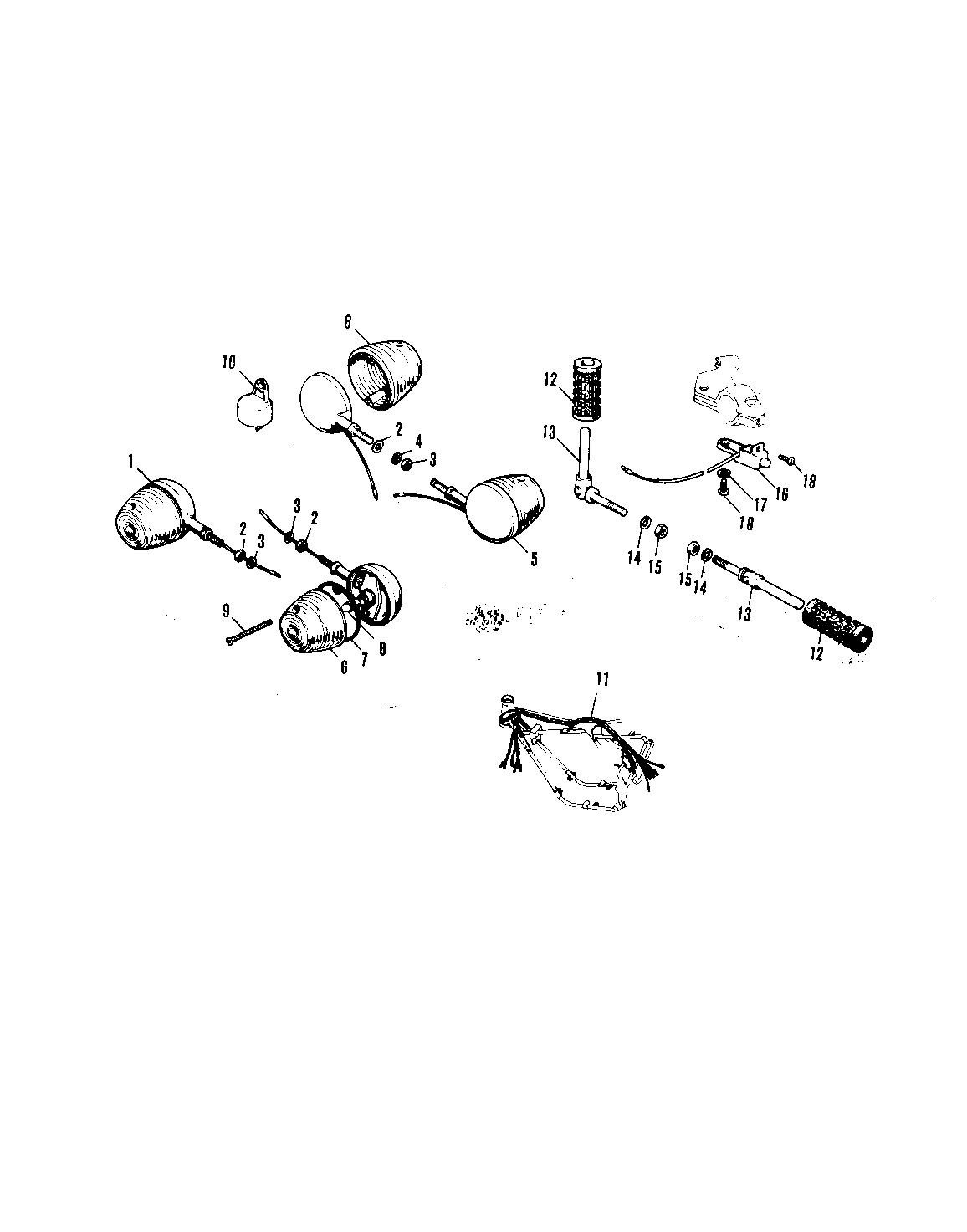

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FR. TURN SIG. LAMP (O | 1 | 23040-027 | 2 | ||
| NUT 10MM | 2 | 315B1000 | 4 | ||
| WASHER PLAIN 10MM | 3 | 410B1000 | 4 | ||
| WASHER SPRING 10MM | 4 | 461F1000 | 2 | ||
| RR TURN SIG LAMP (OPT | 5 | 23043-024 | 2 | ||
| LENS TURN SIGNAL LAMP | 6 | 23048-011 | 4 | ||
| BULB,6V 8W | 8 | 92069-042 | 4 | ||
| SCREW OVL CNTSNK 3X15 | 9 | 222B0315A | 8 | ||
| RELAY-TURN SIG. (OPT) | 10 | 27002-010 | 1 | ||
| WIRING HARNESS (OPT) | 11 | 26001-056 | 1 | ||
| RUBBER REAR FOOTREST | 12 | 92076-008 | 2 | ||
| FOOTREST BAR REAR | 13 | 34027-013 | 2 | ||
| WASHER SPRING 10MM | 14 | 461F1000 | 2 | ||
| NUT,10MM | 15 | 314B1000 | 2 | ||
| SWITCH ASSY-ENG STOP | 16 | 46027-006 | 1 | ||
| WASHER SPRING 3MM | 17 | 461F0300 | 2 | ||
| SCREW-PAN-HEAD 3X6 | 18 | 220B0306 | 2 |
| FR. TURN SIG. LAMP (O | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RR TURN SIG LAMP (OPT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS TURN SIGNAL LAMP | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,6V 8W | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSNK 3X15 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIG. (OPT) | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS (OPT) | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER REAR FOOTREST | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FOOTREST BAR REAR | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH ASSY-ENG STOP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 3MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-HEAD 3X6 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
