Parts Diagrams |

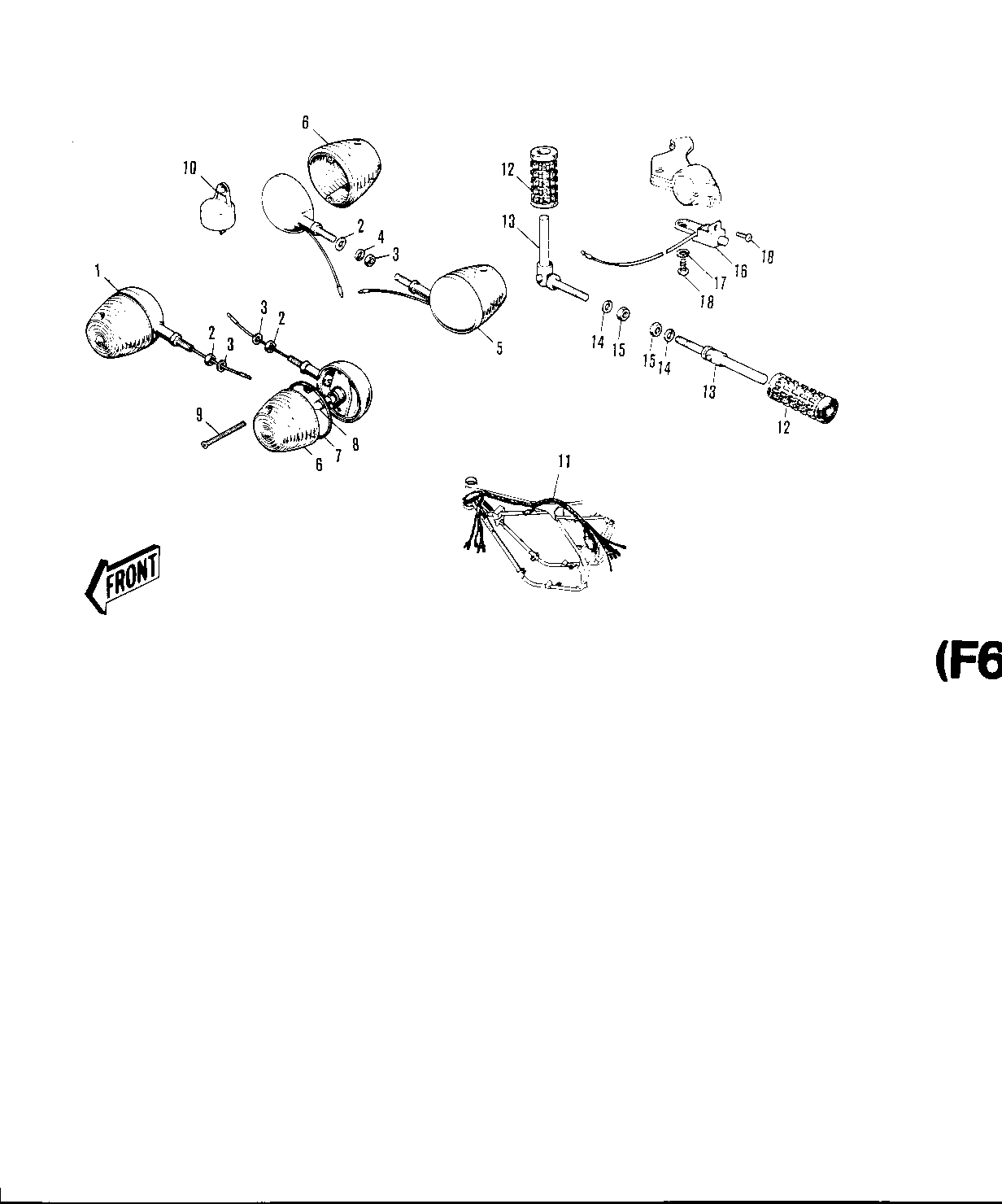

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FR. TURN SIG. LAMP (O | 1 | 23040-027 | |||
| NUT 10MM | 2 | 315B1000 | |||
| WASHER PLAIN 10MM | 3 | 410B1000 | |||
| WASHER SPRING 10MM | 4 | 461F1000 | |||
| RR TURN SIG LAMP (OPT | 5 | 23043-024 | |||
| LENS TURN SIGNAL LAMP | 6 | 23048-011 | |||
| BULB,6V 8W | 8 | 92069-042 | |||
| SCREW OVL CNTSNK 3X15 | 9 | 222B0315A | |||
| RELAY-TURN SIG. (OPT) | 10 | 27002-010 | |||
| WIRING HARNESS (OPT) | 11 | 26001-056 | |||
| BAR SET-REAR FOOTREST | 12 & 1 | 34030-001 | |||
| RUBBER REAR FOOTREST | 12 | 92076-008 | |||
| FOOTREST BAR REAR | 13 | 34027-013 | |||
| WASHER SPRING 10MM | 14 | 461F1000 | |||
| NUT,10MM | 15 | 314B1000 | |||
| SWITCH ASSY-ENG STOP | 16 | 46027-006 | |||
| WASHER SPRING 3MM | 17 | 461F0300 | |||
| SCREW-PAN-HEAD 3X6 | 18 | 220B0306 |
