Parts Diagrams |

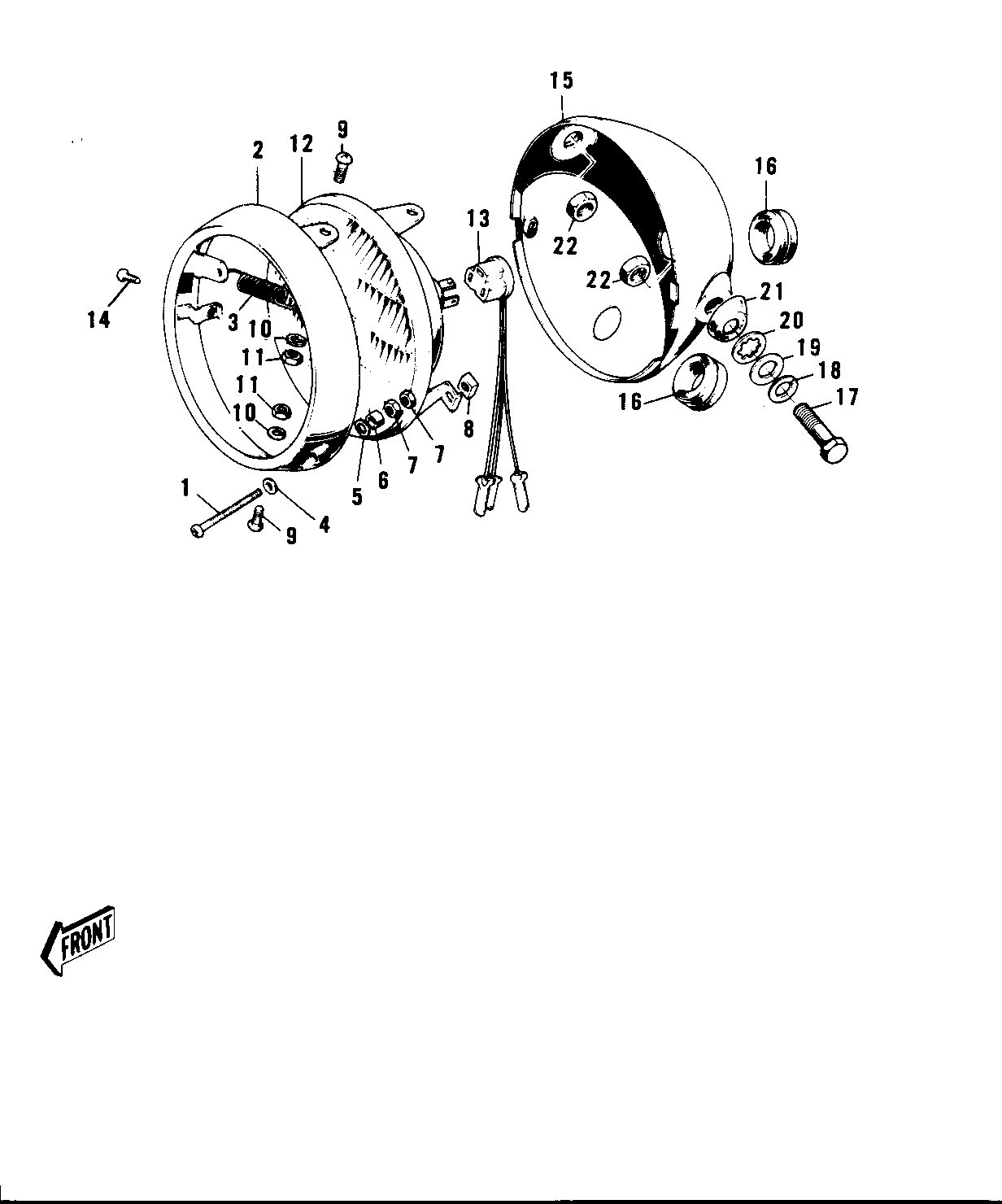

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP UNIT HEAD | 1 ~ 13 | 23003-009 | |||
| SCREW ADJUST | 1 | 23019-013 | |||
| RIM HEAD LAMP | 2 | 23006-020 | |||
| SPRING LENS FITTING | 3 | 23014-008 | |||
| WASHER-FOCUS ADJUST | 4 | 23021-008 | |||
| WASHER ADJUST | 5 | 23021-007 | |||
| WASHER FITTING | 6 | 23058-001 | |||
| NUT ADJUST | 7 | 23020-013 | |||
| NUT ADJUST | 8 | 23020-012 | |||
| SCREW FITTING | 9 | 23019-014 | |||
| WASHER SPRING 4MM | 10 | 461F0400 | |||
| NUT,4MM | 11 | 311B0400 | |||
| SEALED BEAM UNIT | 12 | 23007-023 | |||
| SOCKET ASSY,HD LIGHT | 13 | 23008-044 | |||
| SCREW OVL CNTSNK 5X8 | 14 | 222E0508A | |||
| CASE-HEAD LAMP,BLACK | 15 | 23005-021-21 | |||
| GROMMET WIRING HARNES | 16 | 23023-007 | |||
| BOLT HEX HEAD 10X20 | 17 | 113N1020 | F6/A | ||
| BOLT,HEX HEAD,10X25 | 17 | 92007-045 | F6-B | ||
| WASHER SPRING 10MM | 18 | 461F1000 | |||
| WASHER PLAIN 10MM | 19 | 411B1000 | |||
| WASHER LOCK 10MM | 20 | 463H1000 | |||
| DAMPER RUBBER | 21 | 92075-068 | |||
| NUT 10MM | 22 | 92016-027 |
