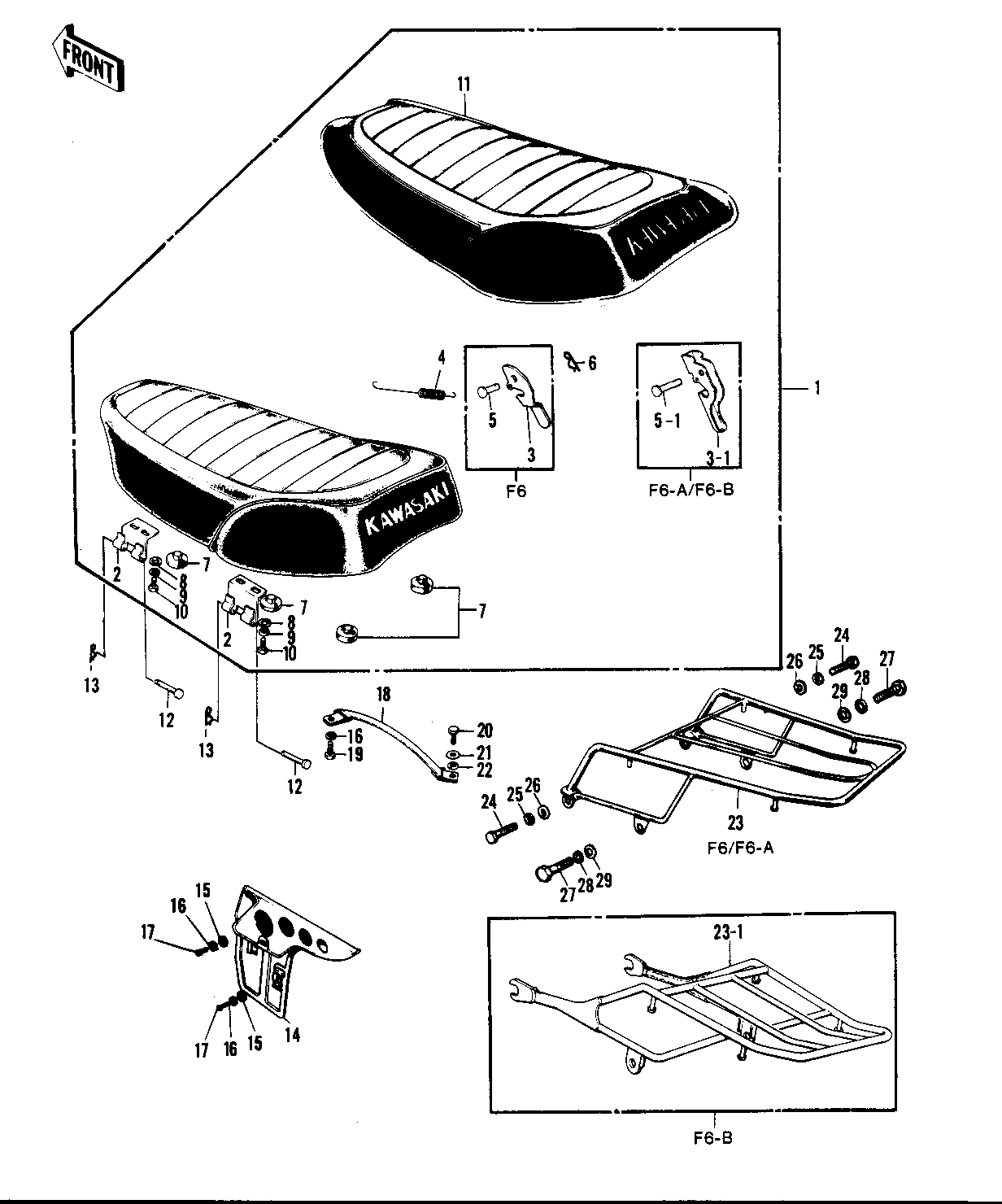

1972 F6-A - SEAT/CARRIER/CHAIN COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-DUAL 1 53002-021 F6/A
SEAT ASSY-DUAL 1 53002-043 F6-B
HINGE 2 53009-015
HOOK 3 53008-008 F6
HOOK 3-1 53008-012 F6-A/B
SPRING,HOOK 4 53012-013
PIN DUAL SEAT PIVOT 5 53011-001 F6
PIN-DUAL SEAT PIVOT 5-1 53011-004 F6-A/B
COTTER PIN 6 92041-003
DAMPER RUBB DUAL SEAT 7 92075-023
WASHER PLAIN 6MM 8 411B0600
WASHER SPRING 6MM 9 461F0600
BOLT-UPSET 6X14 10 112B0614
COVER-DUAL SEAT 11 53003-006 F6/A
PIN 12 53011-002
COTTER PIN 13 92041-003
CASE-CHAIN,BLACK 14 36014-035-21
WASHER PLAIN 6MM 15 411B0600
WASHER SPRING 6MM 16 461F0600
SCREW PAN HEAD 6X12 17 220B0612
BAND-SEAT STOPPER 18 92072-038 F6/A
BAND-SEAT STOPPER 18 92072-038 F6-B
BOLT,6X10 19 112G0610
BOLT-UPSET,6X12 20 112G0612
WASHER LOCK 6MM 21 464H0600
WASHER PLAIN 6MM 22 410B0600
CARRIER-LUGGAGE 23 53029-038 F6/A
CARRIER-LUGGAGE 23-1 53029-045 F6-B
BOLT-SMALL-UPSET,8X18 24 115G0818
WASHER SPRING 8MM 25 461F0800
WASHER PLAIN 8MM 26 410B0800
BOLT,HEX HEAD,10X18 27 113G1018 F6
BOLT,10X28 27 113G1028 F6-A/B
WASHER SPRING 10MM 28 461F1000
WASHER PLAIN 10MM 29 410B1000
