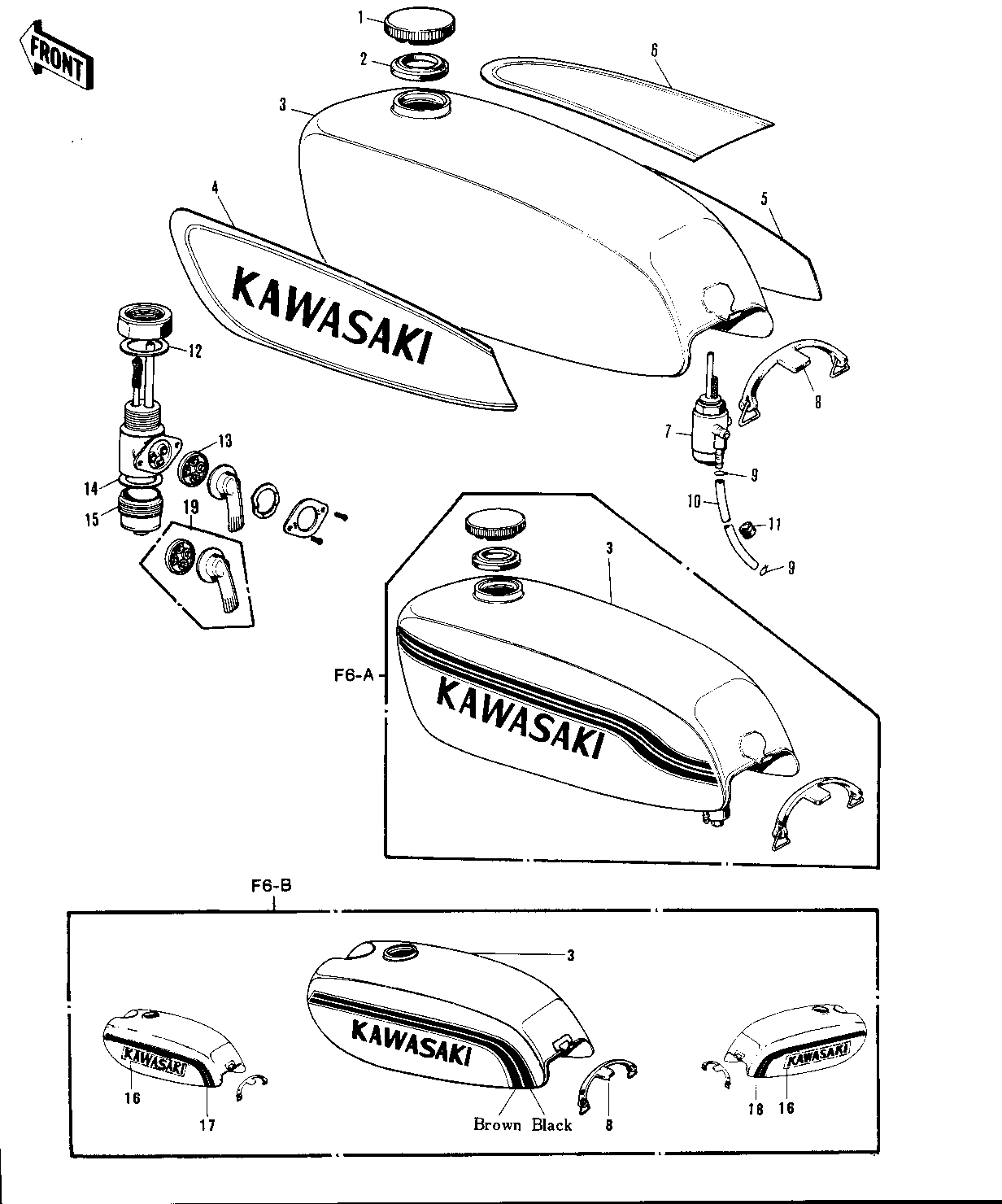

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK LOCKING | 1 | 51048-006 | |||
| GASKET FUEL TANK CAP | 2 | 51059-003 | |||
| TANK-FUEL,D.YELLOW | 3 | 51001-063-83 | F6 | ||
| TANK-FUEL,ORANGE | 3 | 51001-063-71 | F6-A | ||
| TANK-FUEL,RED | 3 | 51001-079-87 | F6-B | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 56013-024 | F6 | ||
| UNAVAILABLE IN PRICE BOOK | 5 | 56014-018 | F6 | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 56027-024 | F6 | ||
| COCK ASSY,FUEL | 7 | 51023-044 | |||
| BAND,FUEL TANK | 8 | 92072-064 | |||
| CLAMP FUEL PIPE | 9 | 92037-010 | |||
| PIPE-FUEL | 10 | 51044-030 | |||
| GROMMET PIPE | 11 | 92071-038 | |||
| GASKET FUEL COCK JONT | 12 | 51032-001 | |||
| GASKET FUEL COCK LEV | 13 | 92065-019 | |||
| GASKET FUEL COCK CUP | 14 | 51037-007 | |||
| CUP FUEL COCK | 15 | 51036-003 | |||
| DECAL-FUEL TANK | 16 | 56013-051 | F6-B | ||
| DECAL-FL TK STRPE,L.H | 17 | 56027-111 | F6-B | ||
| DECAL-FL TK STRPE,R.H | 18 | 56027-112 | F6-B | ||
| FUEL COCK LEVER SET | 19 | 51030-001 |
