Parts Diagrams |

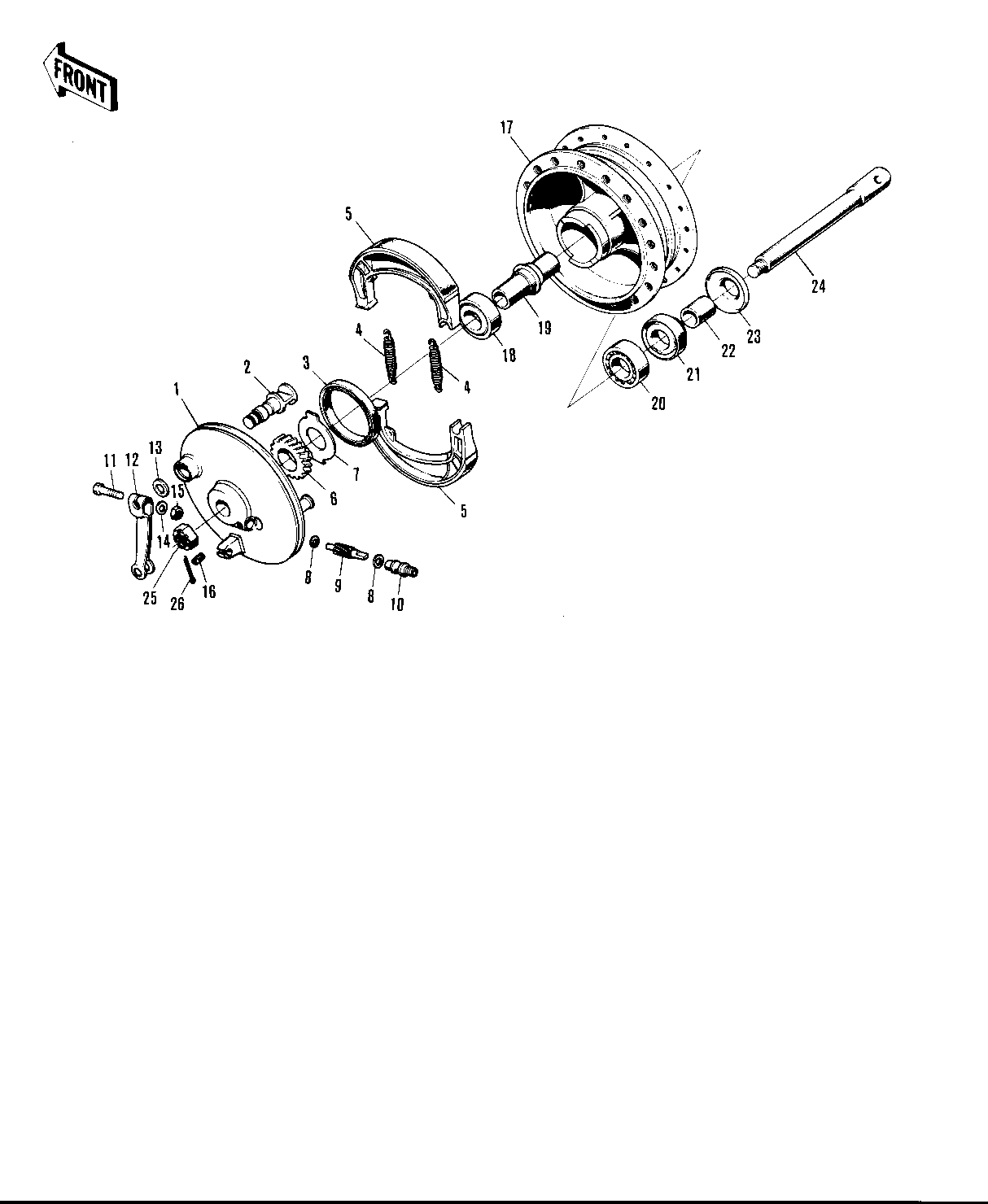

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,FR BRK BLK | 1-16 | 41035-033-21 | |||
| PANEL-ASY,FR BRK BLK | 1-16 | 41035-033-21 | FLT BLK | ||
| CAM SHAFT-FRONT BRAKE | 2 | 41050-018 | |||
| OIL SEAL F BRK PANEL | 3 | 92050-010 | |||
| SPRING,BRAKE SHOE | 4 | 92081-1766 | |||
| SHOE,BRAKE | 5 | 41048-1007 | |||
| GEAR-SPEEDOMETER | 6 | 41059-014 | |||
| RECIEVER-SPEED GEAR | 7 | 41064-006 | |||
| WASHER THRST SPD PINI | 8 | 41063-001 | |||
| PINION SPEEDOMETER | 9 | 41060-004 | |||
| BUSH SPEEDMETER CABLE | 10 | 41062-001 | |||
| BOLT-UPSET | 11 | 112G0630 | |||
| LEVER FRONT BRAKE CAM | 12 | 41053-005 | |||
| WASHER BRAKE CAM SHT | 13 | 41052-001 | |||
| WASHER PLAIN 6MM | 14 | 410B0600 | |||
| NUT 6MM | 15 | 311B0600 | |||
| SCREW-BUSHING NET | 16 | 41070-004 | |||
| SCREW-BUSHING NET | 16 | 41070-004 | |||
| PIN,SPRING | 16 | 41082-001 | |||
| DRUM-ASSY,FR BRK | 17-21 | 41034-004 | |||
| BEARING BALL #6301Z | 18 | 601B6301Z | |||
| SPACER FR HUB BEARING | 19 | 41039-005 | |||
| BEARING BALL #6301 | 20 | 601B6301 | |||
| OIL SEAL FR BRK DRUM | 21 | 92050-011 | |||
| COLLAR FRONT HUB R.H | 22 | 41069-005 | |||
| DUST SHIELD FR BRAKE | 23 | 41042-006 | |||
| AXLE-FRONT | 24 | 41068-034 | |||
| NUT CASTLE 12MM | 25 | 321B1200 | |||
| PIN COTTER 3.0X25 | 26 | 550D3025 |
| PANEL-ASY,FR BRK BLK | |
| REF # | 1-16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,FR BRK BLK | |
| REF # | 1-16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FLT BLK |
| CAM SHAFT-FRONT BRAKE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL F BRK PANEL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GEAR-SPEEDOMETER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RECIEVER-SPEED GEAR | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER THRST SPD PINI | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PINION SPEEDOMETER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BUSH SPEEDMETER CABLE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| LEVER FRONT BRAKE CAM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER BRAKE CAM SHT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW-BUSHING NET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW-BUSHING NET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,FR BRK | |
| REF # | 17-21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6301Z | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPACER FR HUB BEARING | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6301 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL FR BRK DRUM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR FRONT HUB R.H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD FR BRAKE | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| AXLE-FRONT | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE 12MM | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 3.0X25 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
