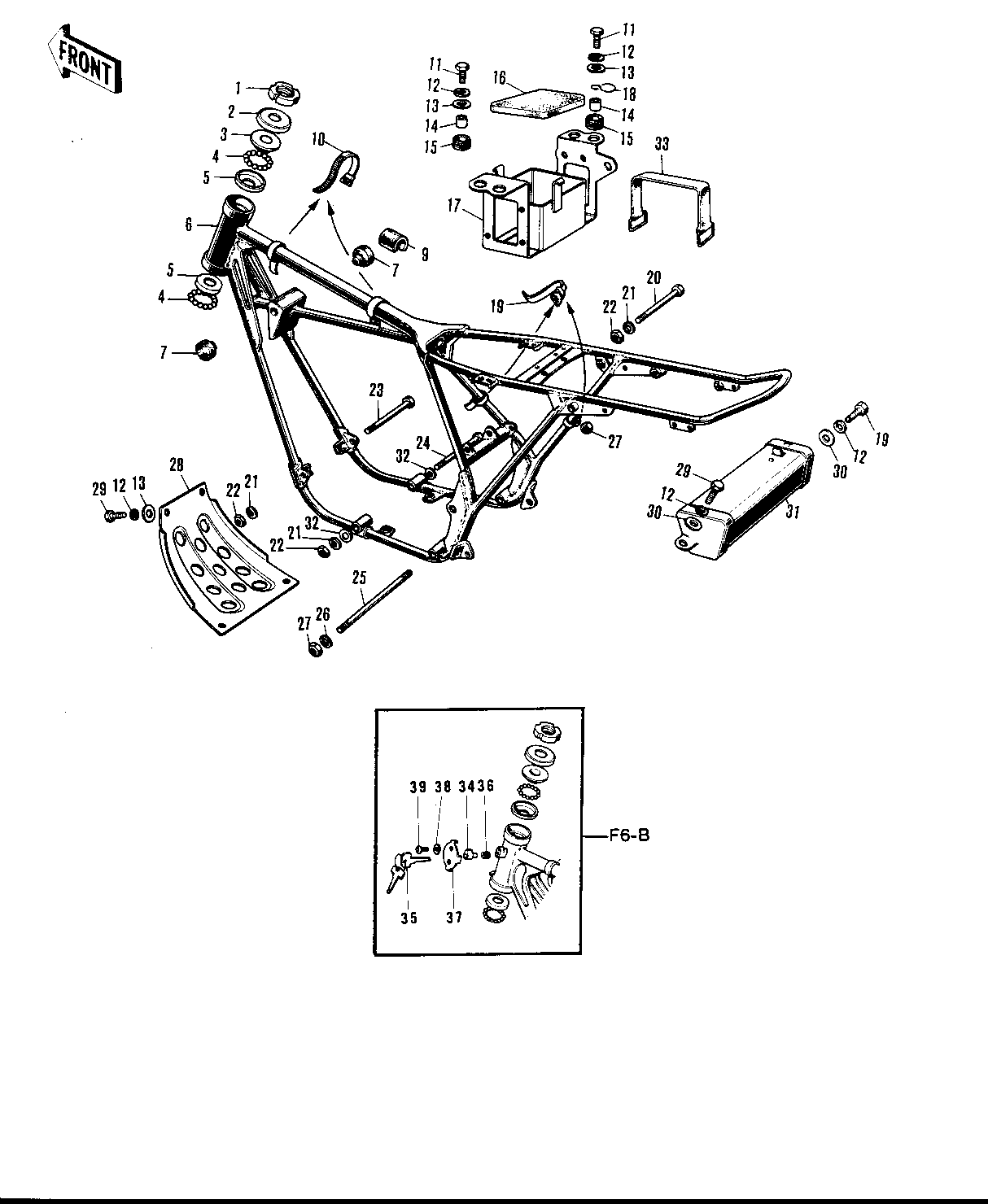

1972 F6-A - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT STEERING STEM LCK 1 92090-006
CAP STEERING STEM 2 46098-005
CONE UPPER BEARING 3 92047-005
BALL STEEL 3/16' 4 600A0600
RACE BEARING 5 92048-004
UNAVAILABLE IN PRICE BOOK 6 32002-043 F6/A
FRAME 6 32002-060 F6-B
DAMPER RUBB FUEL TANK 7 92075-050
MAT FUEL TANK 9 51067-002
BAND,LONG 10 92072-032
BOLT-UPSET,6X20 11 112G0620
WASHER SPRING 6MM 12 461F0600
WASHER 6.5X20X1.6T 13 92022-125
COLLAR 14 92027-103
DAMPER RUBBER 15 92075-051
MAT-BATTERY 16 32103-019
CASE-BATTERY 17 32097-018
CLAMP CABLE 18 92037-026
BAND,MIDDLE 19 92072-031
BOLT,FLANGED,10X115 20 92001-1603
WASHER SPRING 10MM 21 461F1000
NUT,10MM 22 314B1000
BOLT-HEX HEAD,10X145 23 113B10145 F6
BOLT,HEX HEAD,10X150 23 92001-1251 F6-A/B
BOLT-HEX HEAD,10X225 24 113B10225 F6
BOLT-HEX HEAD,10X225 24 113B10225 F6-A/B
STUD,12X290 25 92006-003
WASHER SPRING 12MM 26 461F1200
NUT-HEX-FINE 27 314B1200
GUARD-ENGINE 28 55011-012
BOLT-UPSET,6X12 29 112G0612
WASHER PLAIN 6MM 30 410B0600
BOX-TOOL 31 32098-013
WASHER PLAIN 10MM 32 411B1000
BAND TOOL 33 92072-012
LOCK ASSY-STEERING 34, 35 27016-029 F6-B
KEY SET-STRNG #270 35 27018-015-70 F6-B
KEY SET-STRNG #271 35 27018-015-71 F6-B
KEY SET-STRNG #272 35 27018-015-72 F6-B
KEY SET-STRNG #273 35 27018-015-73 F6-B
KEY SET-STRNG #274 35 27018-015-74 F6-B
SPRING-STEERING LOCK 36 27032-001 F6-B
CAP,STEERING LOCK 37 11012-1134 F6-B
WASHER 38 92097-003 F6-B
SCREW-TAPPING 39 92008-007
