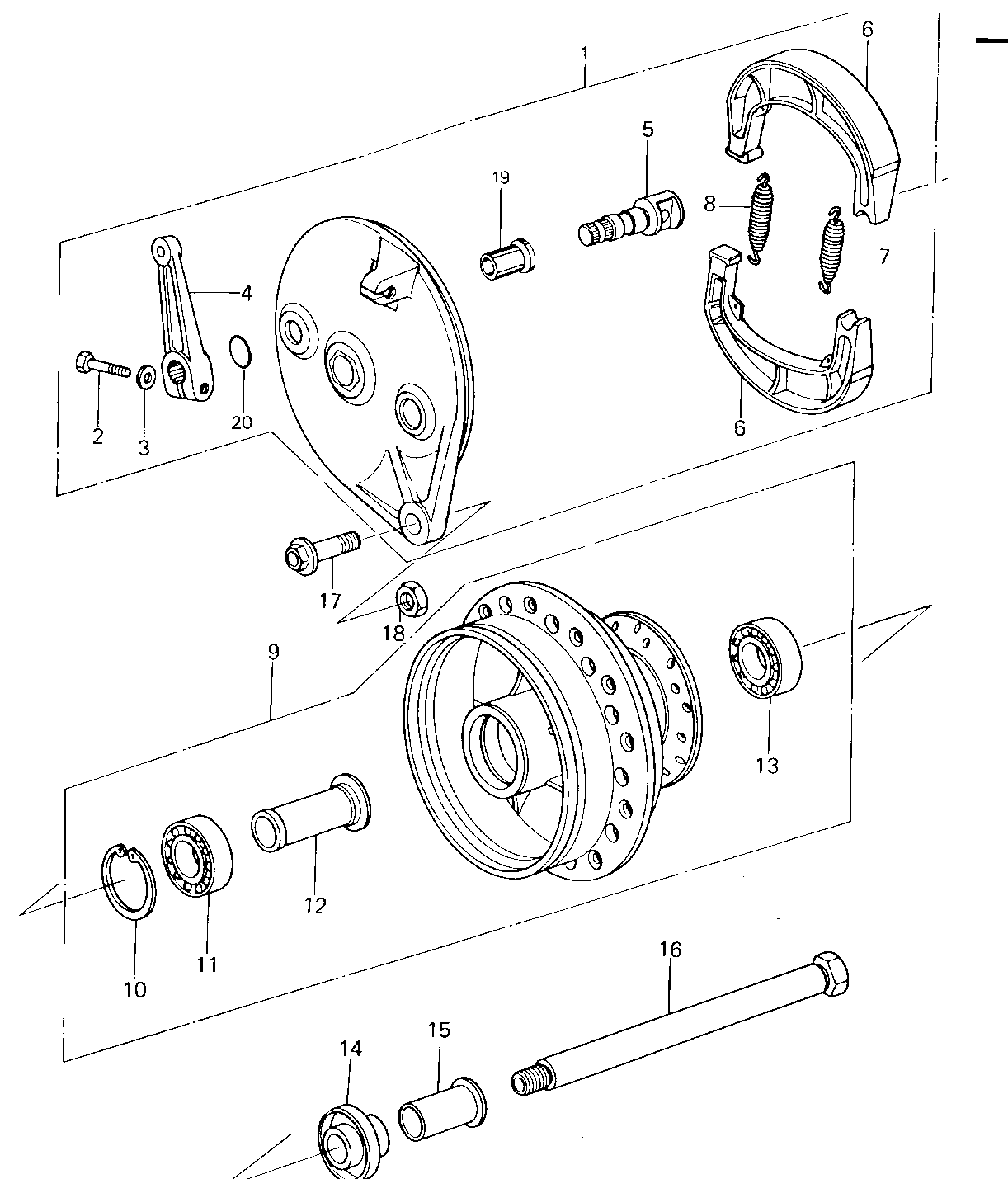

1979 KX125-A5 - FRONT HUB/BRAKE ('78-'79 KX125-A4/A5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,FR BRK | 1 | 41035-1011-21 | |||
| BOLT-UPSET | 2 | 112G0622 | |||
| WASHER PLAIN 6MM | 3 | 410B0600 | |||
| LEVER,BRAKE CAM,FRONT | 4 | 41053-1007 | |||
| CAM SHAFT,FRONT BRAKE | 5 | 41050-1006 | |||
| SHOE,BRAKE | 6 | 41048-015 | |||
| SPRING,BRAKE SHOE | 7 | 92081-1766 | |||
| SPRING,BRAKE SHOE | 8 | 92081-1550 | |||
| DRUM-ASSY,FR BRK,BLK | 9 | 41034-1009-21 | |||
| CIRCLIP.37MM | 10 | 481J3700 | |||
| BEARING,BALL | 11 | 601B6301U | |||
| COLLAR,FRONT BEARING | 12 | 92027-1073 | |||
| BEARING,BALL | 13 | 601B6201U | |||
| COLLAR,FRONT AXLE | 14 | 92027-1071 | |||
| COLLAR,FRONT AXLE | 15 | 92027-1070 | |||
| AXLE,FRONT | 16 | 41068-1008 | |||
| BOLT,HEX HEAD,10X38 | 17 | 92001-1084 | KX125-A4 | ||
| BOLT,10X45 | 17 | 92001-1182 | KX125-A5 | ||
| NUT,LOCK,10MM | 18 | 92019-021 | |||
| BUSHING,BRAKE CAMSHFT | 19 | 92028-1020 | |||
| "O" RING,12MM | 20 | 670B2012 |
