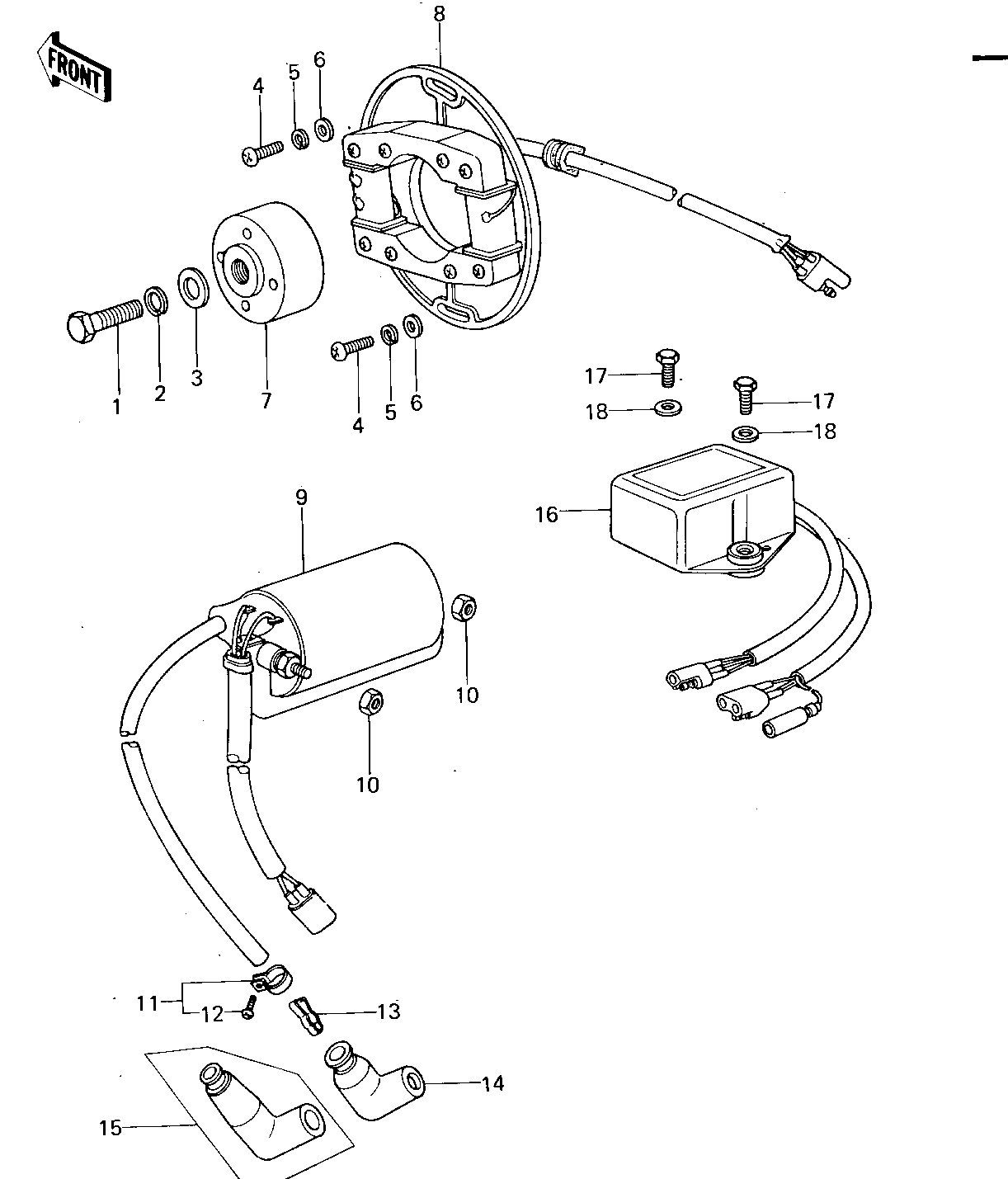

1978 KX125-A4 - IGNITION ('78-'79 KX125-A4/A5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT | 1 | 92001-1578 | 1 | ||
| WASHER SPRING 8MM | 2 | 461F0800 | 1 | ||
| WASHER,PLAIN,8MM | 3 | 92022-276 | 1 | ||
| SCREW PAN HEAD 6X25 | 4 | 220B0625 | 2 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 6 | 410B0600 | 2 | ||
| ROTOR | 7 | 21007-1007 | 1 | KX125-A4 | |
| ROTOR,MAGNETO | 7 | 21007-1013 | 1 | KX125-A5~ | |
| STATOR ASSY,MAGNETO | 8 | 21003-1019 | 1 | KX125-A4 | |
| STATOR ASSY,MAGNETO | 8 | 21003-1019 | 1 | KX125-A5~ | |
| COIL,IGNITION | 9 | 21121-1007 | 1 | ||
| NUT | 10 | 92019-008 | 2 | ||
| CLAMP,SPARK PLUG CAP | 11 | 92037-1173 | 1 | NOT REQUIRED FOR P/NO. 21130-1 | |
| SCREW-PAN-CROS | 12 | 220B0310 | 1 | NOT REQUIRED FOR P/NO. 21130-1 | |
| TERMINAL,PLUG CAP | 13 | 21169-001 | 1 | NOT REQUIRED FOR P/NO. 21130-1 | |
| CAP,SPARK PLUG | 14 | 21130-1006 | 1 | ||
| CAP,SPARK PLUG | 15 | 21130-1001 | 1 | ||
| IGNITION UNIT | 16 | 21119-1002 | 1 | KX125-A4 | |
| IGNITION UNIT | 16 | 21119-1010 | 1 | KX125-A5~ | |
| BOLT-UPSET | 17 | 112G0618 | 2 | ||
| WASHER PLAIN | 18 | 92022-024 | 2 |
