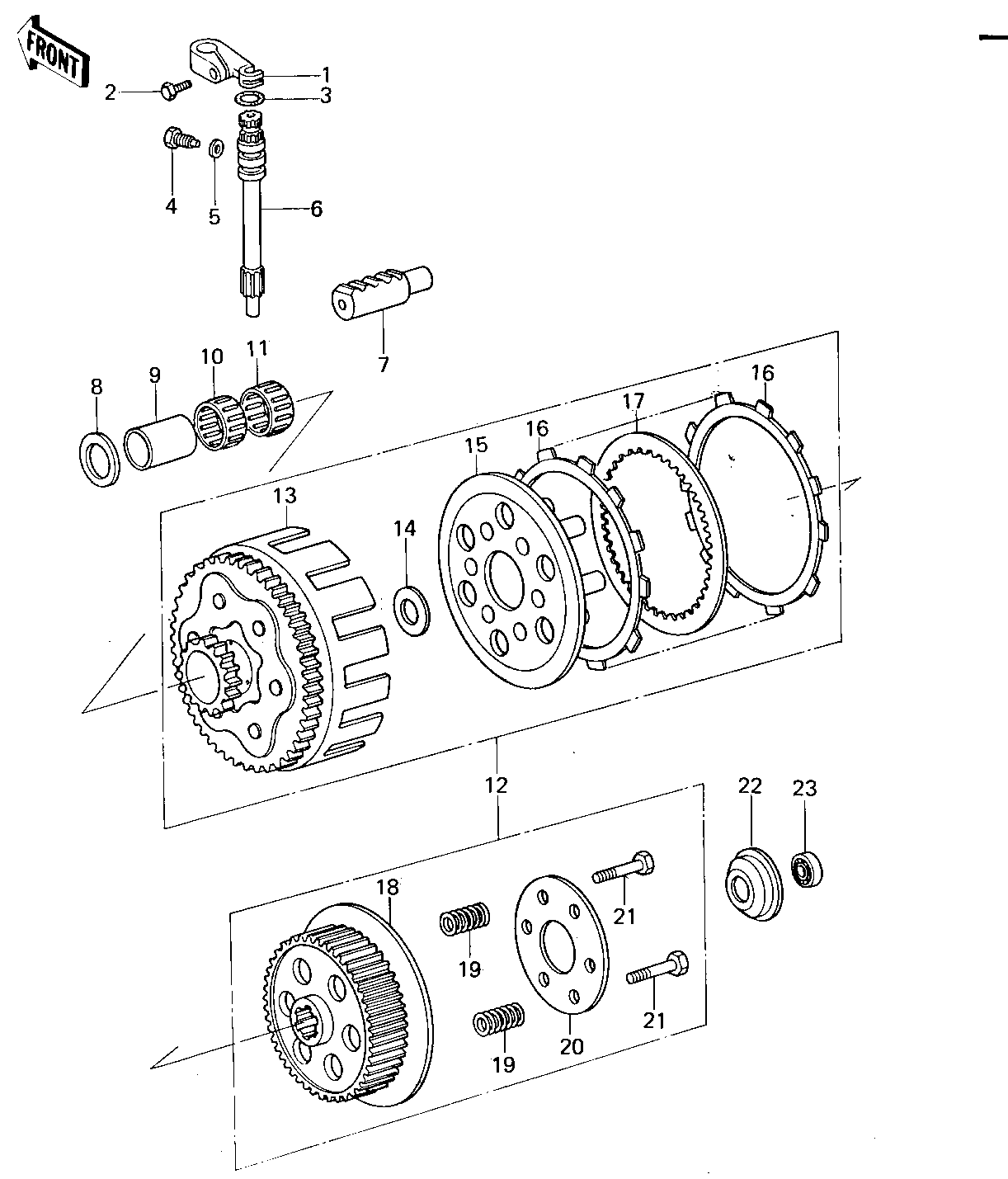

1979 KX125-A5 - CLUTCH ('78-'79 KX125-A4/A5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CLUTCH RELEASE | 1 | 13168-1010 | |||
| BOLT-UPSET | 2 | 112G0618 | |||
| "0" RING, 10MM | 3 | 670B2010 | |||
| BOLT,CLUTCH RELEASE | 4 | 92003-130 | |||
| GASKET,R.H ENG COVER | 5 | 92065-092 | |||
| SHAFT,CLUTCH RELEASE | 6 | 13106-1001 | |||
| ROD,CLUTCH PUSH | 7 | 13116-025 | |||
| WASHER,PLAIN | 8 | 92022-270 | |||
| BUSHING,CLUTCH | 9 | 92028-1018 | |||
| BEARING,NEEDLE | 10 | 92046-1004 | KT222617-C3 | ||
| BRG,N,KT222613-C3 | 11 | 92046-1005 | KT222613-C3 | ||
| CLUTCH-ASSY | 12 | 13081-1011 | |||
| HOUSING,CLUTCH | 13 | 13095-1007 | |||
| WASHER,PLAIN | 14 | 92022-270 | |||
| WHEEL,CLUTCH | 15 | 13086-1001 | |||
| PLATE-FRICTION | 16 | 13088-1015 | |||
| PLATE,CLUTCH STEEL | 17 | 13089-1002 | |||
| HUB,CLUTCH | 18 | 13087-1002 | |||
| SPRING,CLUTCH | 19 | 92081-123 | |||
| HOLDER,CLUTCH | 20 | 13091-1011 | |||
| BOLT,5X18 | 21 | 92003-078 | |||
| HOLDER,CLUTCH PUSHER | 22 | 13091-1071 | |||
| BEARING,BALL | 23 | 92045-1005 |
