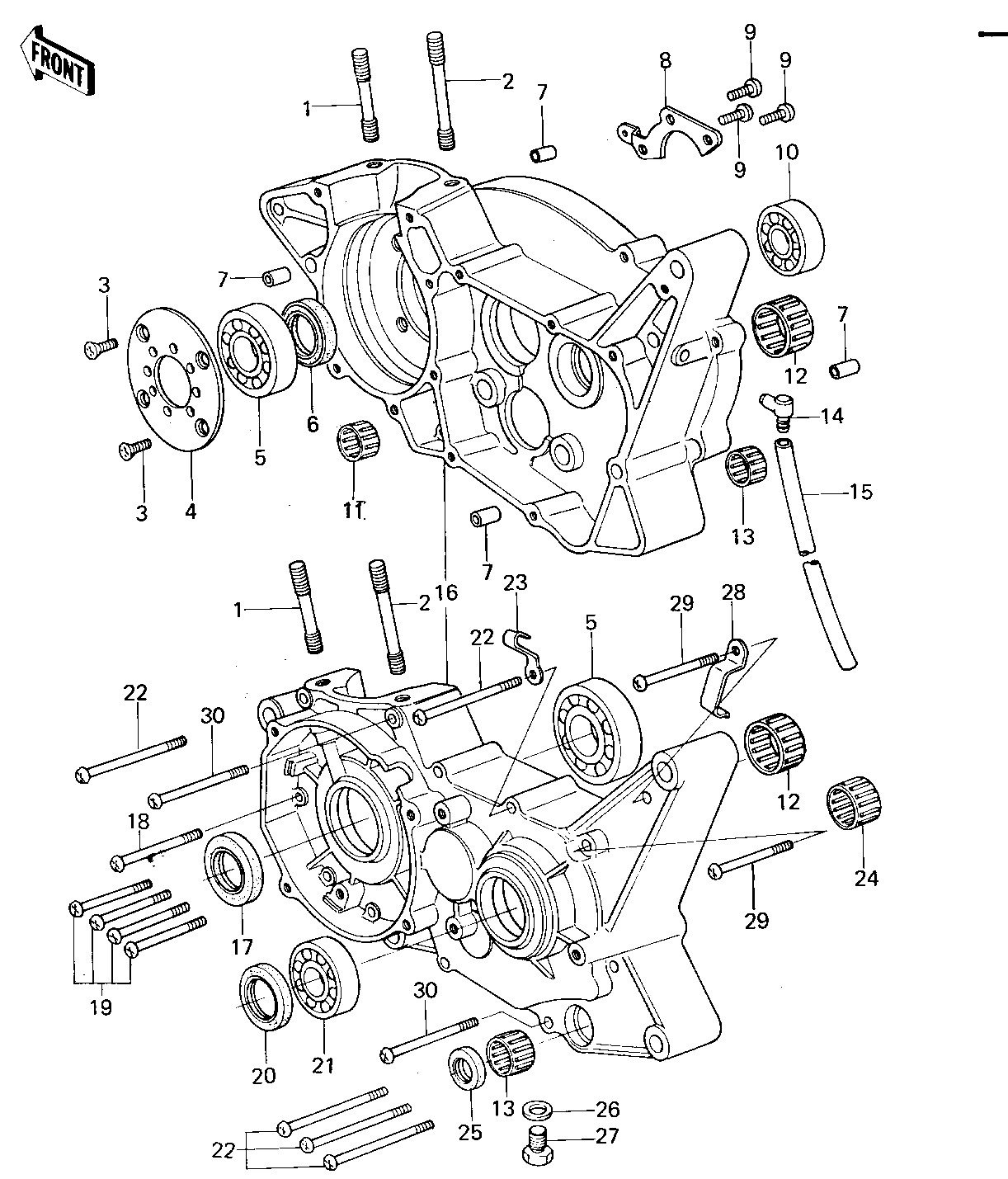

1979 KX125-A5 - CRANKCASE ('78-'79 KX125-A4/A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STUD,8X25 1 92004-1008
STUD,8X56 2 92004-1010
SCREW CNTSNK HD 6X16 3 221B0616
SCREW CNTSNK HD 6X14 3 221B0614
PLATE,POSITIONING 4 14014-1002
BEARING,BALL 5 92045-1006
SEAL-OIL 6 92049-1250
PIN,DOWEL,10X8.2X14 7 92043-1037
PLATE,POSITIONING 8 14014-1003
SCREW PAN HEAD 6X16 9 220B0616
BEARING BALL #6303 10 601B6303
BEARING,NEEDLE 11 92046-043
BEARING,NEEDLE 12 92046-1006
BEARING,NEEDLE 13 92046-1008
BREATHER 14 14069-003
PIPE-BREATHER 15 92059-061
CRANKCASE SET 16 14001-5013 KX125-A4
CRANKCASE SET 16 14001-5026 KX125-A5~
OIL SEAL 17 92049-1010
SCREW PAN HEAD 6X55 18 220B0655
SCREW PAN HEAD 6X45 19 220B0645
OIL SEAL SC25376 20 92050-013
BEARING,BALL 21 92045-1007
SCREW PAN HEAD 6X70 22 220B0670
CLAMP CABLE 23 92037-016
BEARING,NEEDLE 24 92046-1007
OIL SEAL,TB13225.5 25 92051-005
GASKET CHECK VALVE 26 92065-058
PLUG OIL DRAIN 27 92067-001
CLAMP 28 92037-1073
SCREW PAN HEAD 6X50 29 220B0650
SCREW PAN HEAD 6X60 30 220B0660
