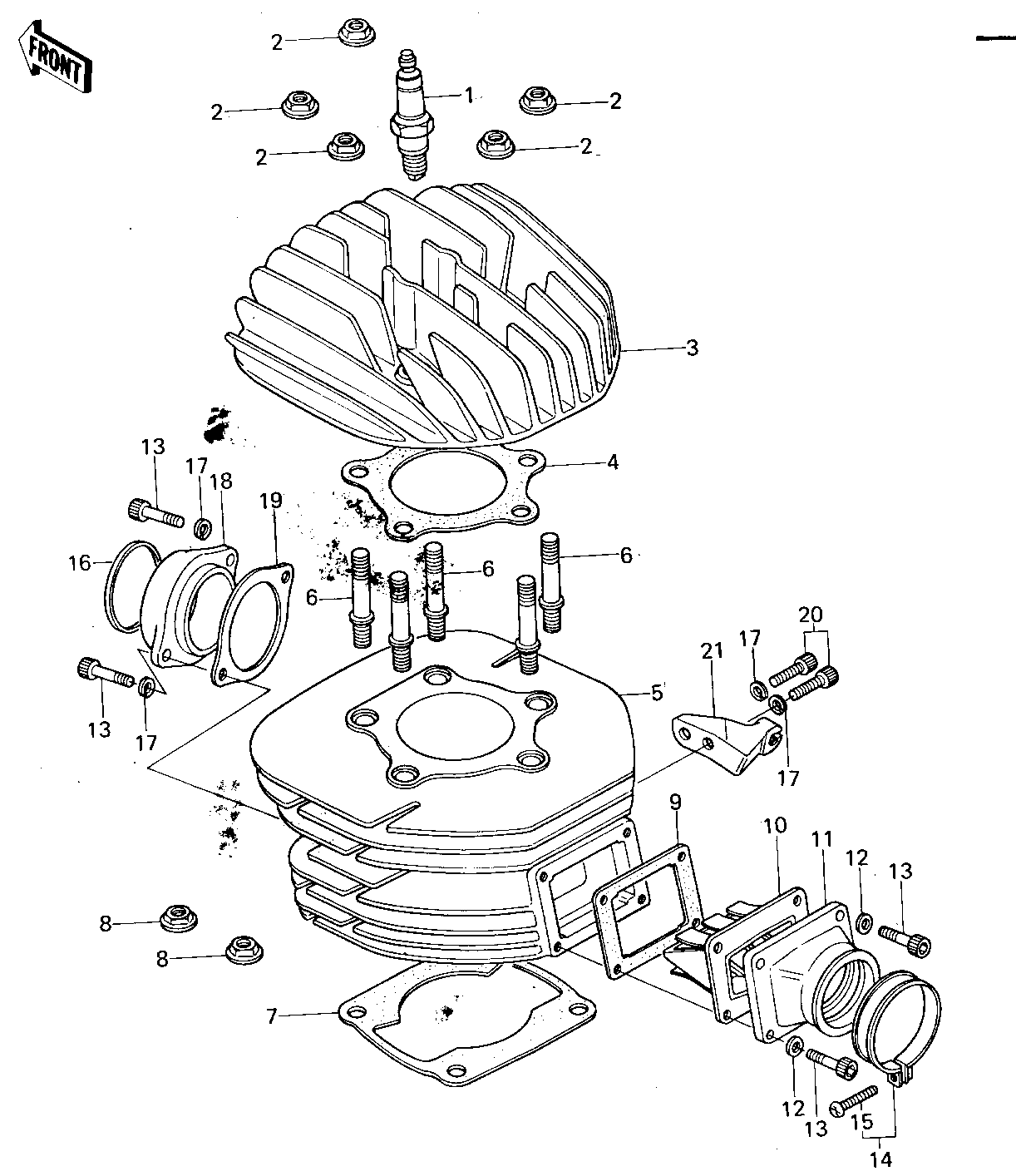

1979 KX125-A5 - CYLINDER HEAD/CYLINDER /REED VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPARK PLUG B9EV | 1 | B9EV | |||
| SPARK PLUG BR9EV | 1 | 92070-3002 | |||
| NUT,8M/M | 2 | 92015-1014 | |||
| CYLINDER HEAD,F.BLACK | 3 | 11001-1005-21 | |||
| GASKET,CYLINDER HEAD | 4 | 11004-1006 | |||
| CYLINDER, FLAT BLACK | 5 | 11005-1010-21 | KX125-A4 | ||
| CYLINDER,ELECTRO-FUSE | 5 | 11005-1040 | KX125-A5~ | ||
| STUD,8X35 | 6 | 92004-1011 | |||
| GASKET,CYLINDER | 7 | 11009-1042 | |||
| NUT,8M/M | 8 | 92015-1014 | |||
| GASKET,REED VALVE | 9 | 11009-1018 | |||
| VALVE ASSY,REED | 10 | 12021-1001 | KX125-A4 | ||
| VALVE ASSY,REED | 10 | 12021-1007 | KX125-A5 | ||
| HOLDER,CARBURETOR | 11 | 16065-1007 | |||
| WASHER,PLAIN,6MM | 12 | 410B0600 | |||
| BOLT,SOCKET,6X25,BLAC | 13 | 120S0625 | |||
| CLAMP-INLET PIPE | 14 | 92037-061 | |||
| SCREW,PAN HEAD | 15 | 92011-037 | |||
| GASKET,EXHAUST HOLDER | 15 | 11009-1124 | KX125-A5 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | |||
| HOLDER,EXHAUST PIPE | 18 | 18069-1002 | KX125-A4 | ||
| HOLDER,EXHAUST PIPE | 18 | 18069-1009 | KX125-A5~ | ||
| GASKET,EXHAUST HOLDER | 19 | 11009-1043 | |||
| BOLT-SOCKET,6X20 | 20 | 120S0620 | |||
| HOLDER,CLUTCH CABLE | 21 | 14044-1003 |
