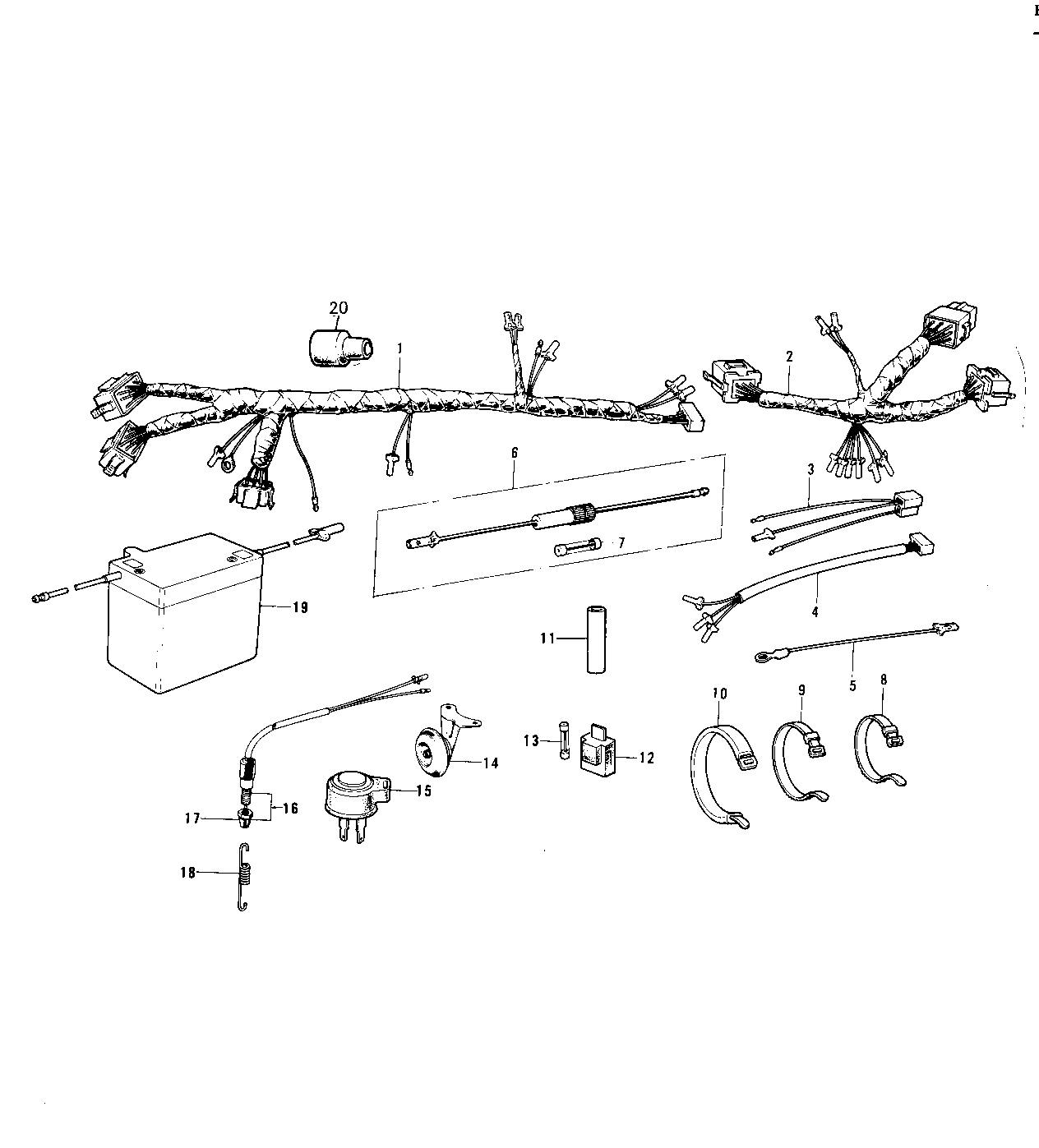

1974 KS125 - CHASSIS ELECTRICAL EQUIPMENT ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,MAIN | 1 | 26001-108 | 1 | ||
| WIRING HARNESS,HDLMP | 2 | 26002-045 | 1 | ||
| WIRE,RECTIFIER LEAD | 3 | 26011-072 | 1 | ||
| WIRING HARNESS,TL LMP | 4 | 26002-046 | 1 | ||
| WIRE,LEAD | 5 | 26011-093 | 1 | ||
| FUSE ASSY | 6 | 26004-025 | 1 | ||
| FUSE 15A | 7 | 26006-007 | 1 | ||
| BAND,SHORT | 8 | 92072-030 | 5 | ||
| BAND,MIDDLE | 9 | 92072-031 | 2 | ||
| BAND,WIRING HARNESS | 10 | 92072-068 | 1 | ||
| DAMPER RUBBER,HARNESS | 11 | 92075-250 | 1 | ||
| HOLDER-SPARE FUSE | 12 | 26016-004 | 1 | ||
| FUSE 15A | 13 | 26006-007 | 2 | ||
| HORN | 14 | 27003-044 | 1 | ||
| RELAY-TURN SIGNAL | 15 | 27002-013 | 1 | ||
| SWITCH,BRAKE LAMP | 16 | 27010-021 | 1 | ||
| NUT,BRAKE LAMP SWITCH | 17 | 27037-001 | 1 | ||
| SPRING BRAKE LAMP SW | 18 | 27011-006 | 1 | ||
| YUA BAT 6N6-1D-2 | 19 | K26012-034 | 1 | 6V 6AH | |
| COVER,WIRING HARNESS | 20 | 26009-008 | 1 |
| WIRING HARNESS,MAIN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,HDLMP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,RECTIFIER LEAD | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,TL LMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE 15A | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BAND,MIDDLE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,WIRING HARNESS | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,HARNESS | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-SPARE FUSE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE 15A | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE LAMP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,BRAKE LAMP SWITCH | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING BRAKE LAMP SW | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT 6N6-1D-2 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 6V 6AH |
| COVER,WIRING HARNESS | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
