Parts Diagrams |

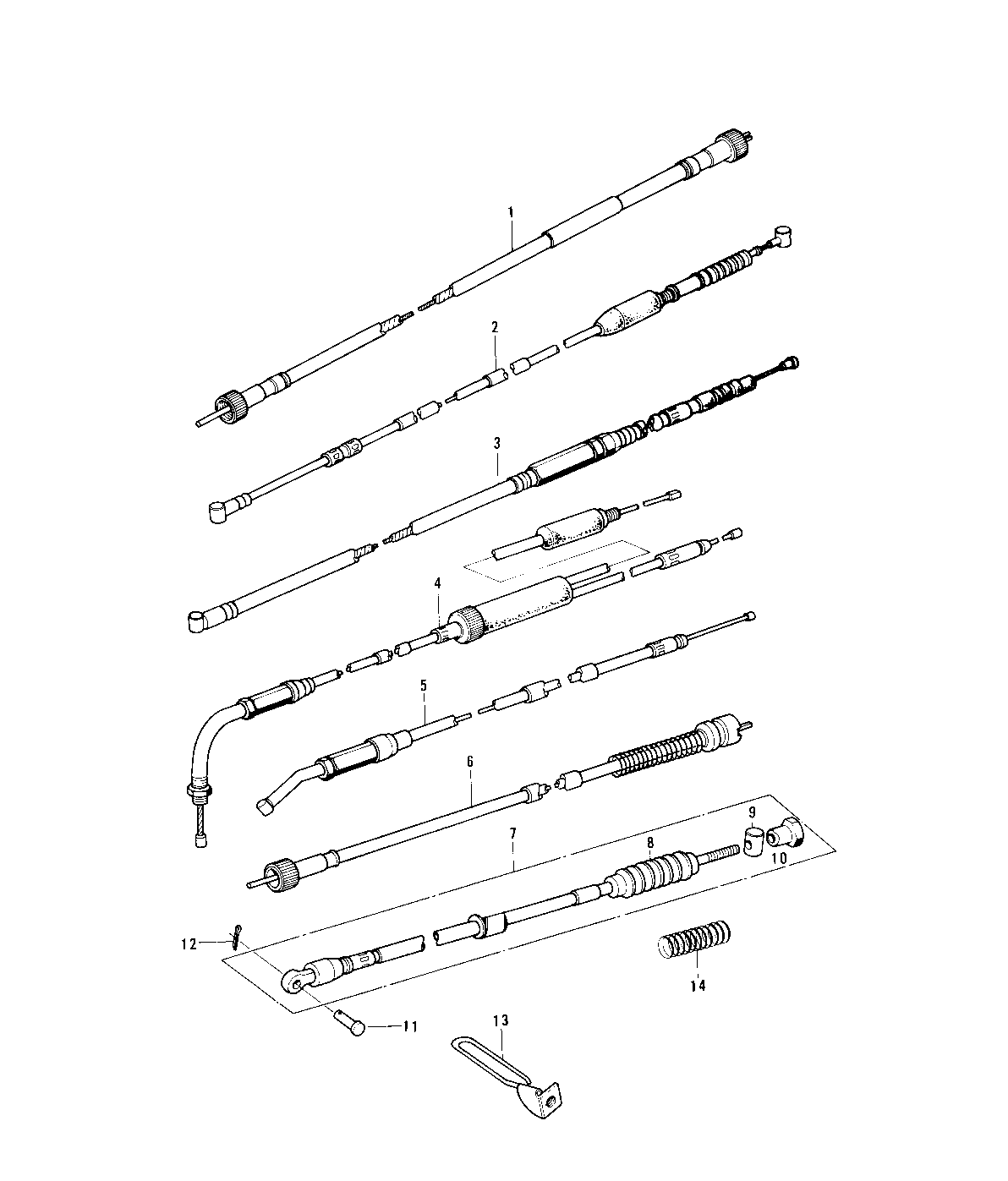

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,SPEEDOMETER | 1 | 54001-046 | 1 | ||
| CABLE,FRONT BRAKE | 2 | 54005-077 | 1 | ||
| CABLE,CLUTCH | 3 | 54011-071 | 1 | ||
| CABLE,CONTROL | 4 | 54012-102 | 1 | ||
| CABLE,STARTER | 5 | 54017-064 | 1 | ||
| CABLE,TACHOMETER | 6 | 54018-018 | 1 | ||
| CABLE,REAR BRAKE | 7 | 54022-024 | 1 | ||
| DUST COVER-BRKE CABLE | 8 | 54009-007 | 1 | ||
| PIN BRAKE ROD | 9 | 92043-053 | 1 | ||
| NUT-BRAKE CABLE ADJST | 10 | 92015-041 | 1 | ||
| PIN RR BRAKE CABLE | 11 | 92043-107 | 1 | ||
| PIN COTTER 2.0X15 | 12 | 550D2015 | 1 | ||
| GUIDE,CABLE | 13 | 54030-011 | 1 | ||
| SPRING,COIL | 14 | 54025-004 | 1 |
