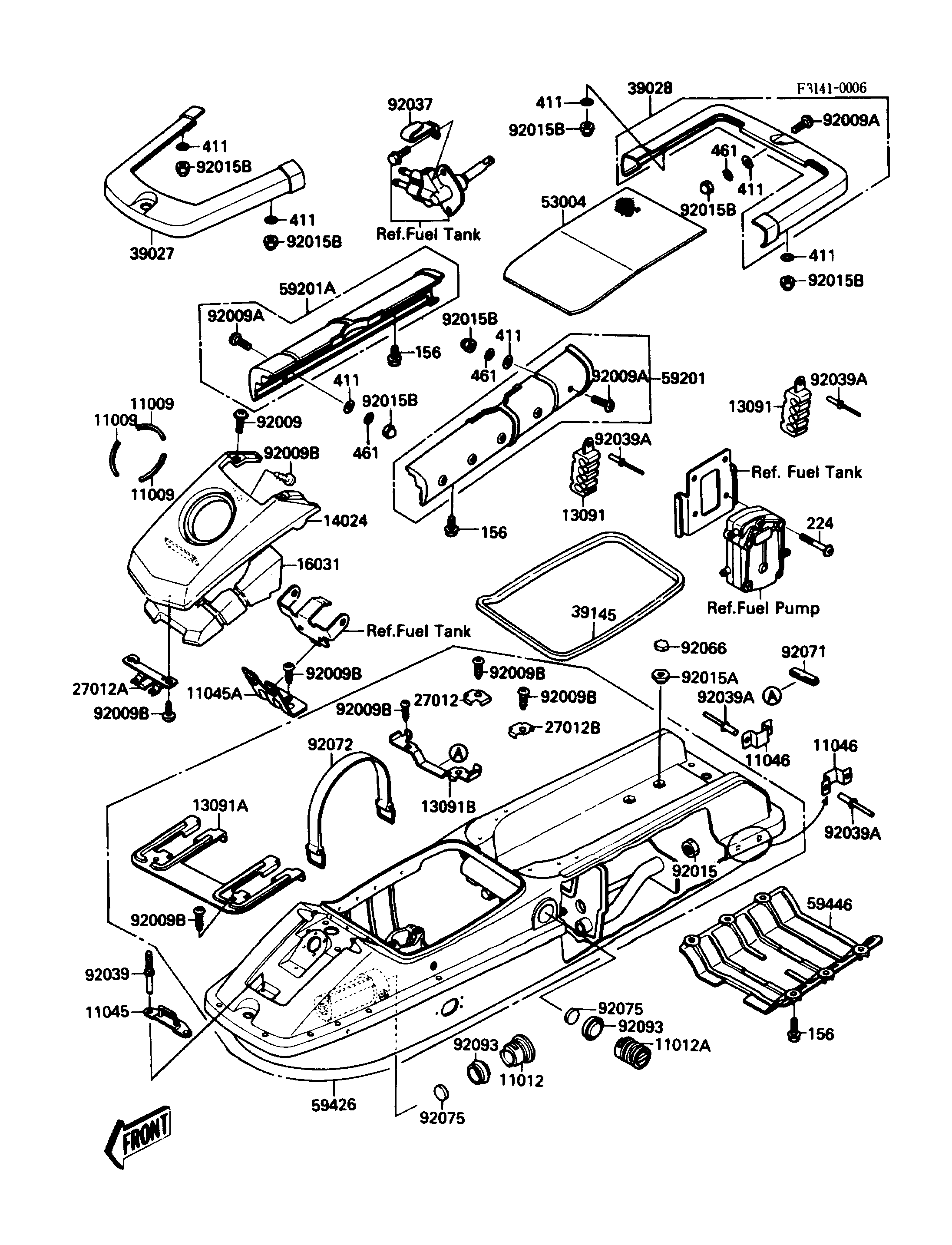

1988 650 SX - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CAP 11009 11009-3732 3
CAP 11012 11012-3708 1
CAP 11012A 11012-3714 1
BRACKET,FRONT DECK 11045 11045-3730 1
BRACKET,CENTER 11045A 11045-3731 1
BRACKET 11046 11046-3701 2
HOLDER 13091 13091-3715 3
HOLDER 13091A 13091-3722 1
HOLDER 13091B 13091-3725 1
COVER,TANK CAP,JET WHITE 14024 14024-3732-8C 1
FLOAT 16031 16031-3733 1
HOOK 27012 27012-3713 1
HOOK,FRONT DECK 27012A 27012-3715 1
HOOK 27012B 27012-501 1
BUMPER-FRONT 39027 39027-3703 1
BUMPER-REAR 39028 39028-3703 1
TRIM-SEAL 39145 39145-3706 1
MAT,DECK 53004 53004-3722 1
BUMPER,SIDE,LH 59201 59201-3714 1
BUMPER,SIDE,RH 59201A 59201-3715 1
HULL-COMP,JET WHITE 59426 59426-3720-8C 1
COVER-JET PUMP 59446 59446-3705 1
SCREW,5X16 92009 92009-3726 2
SCREW,6X23.5 92009A 92009-3742 13
SCREW,TAPPING 92009B 92011-561 11
NUT,20MM 92015 92015-3738 1
NUT,8MM 92015A 92015-3744 4
NUT,CAP,6MM 92015B 92015-3755 27
CLAMP,L=100 92037 92037-3736 1
RIVET 92039 92039-3702 2
RIVET 92039A 92039-3714 7
PLUG 92066 92066-3713 2
GROMMET 92071 92071-3755 1
BAND,L=384 92072 92072-3713 2
DAMPER 92075 92075-3719 2
SEAL,OSR70X82X7.5 92093 92093-3704 2
BOLT-WP,6X20 156 156R0620 14
SCREW-PAN-WP-CROS,6X40 224 224R0640 2
WASHER-PLAIN,6MM 411 411S0600 27
WASHER-SPRING,6MM 461 461S0600 13
