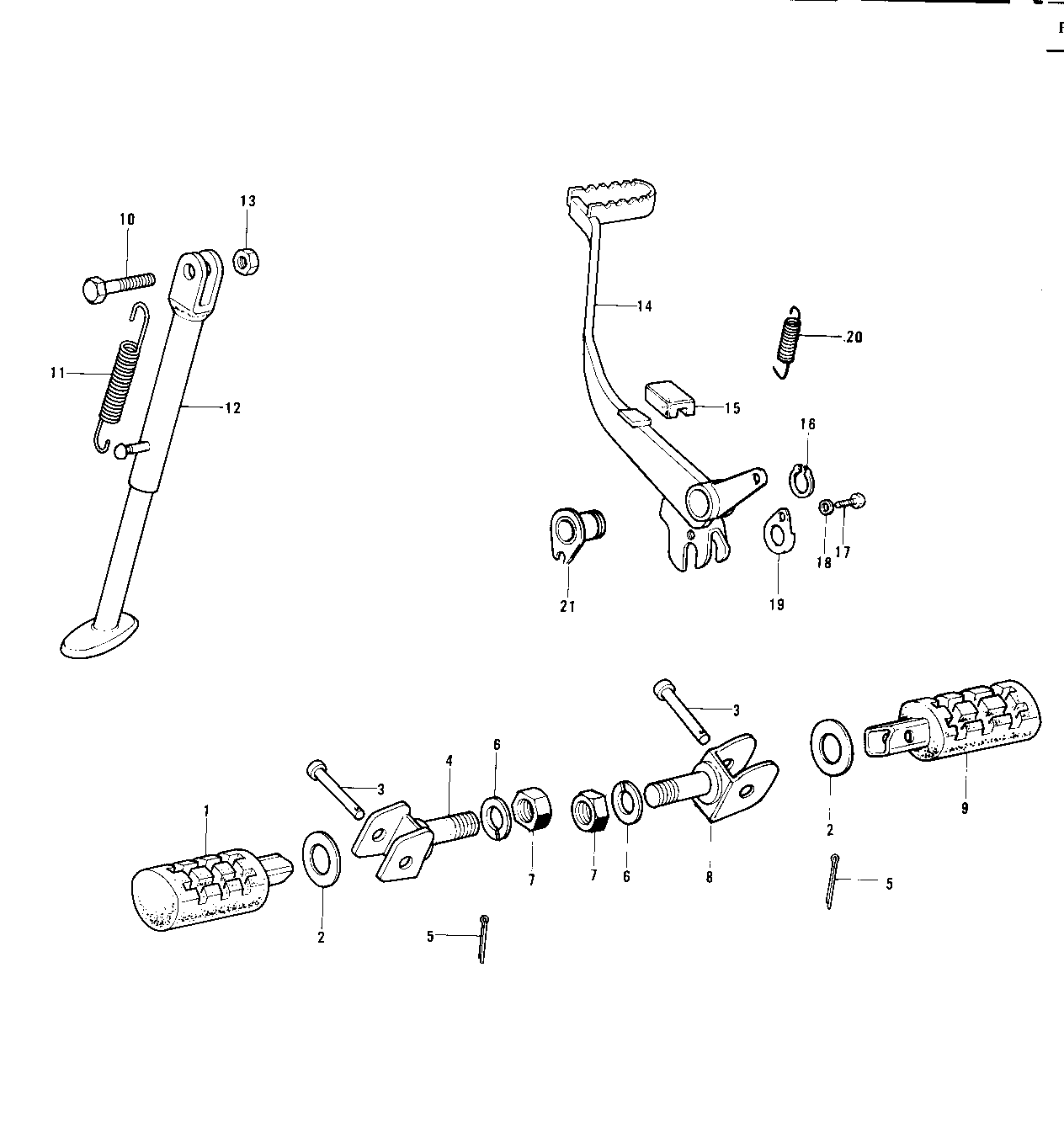

1974 KS125 - FOOTRESTS/STAND/BRAKE PEDAL ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP-ASSY,FR,LH | 1 | 34027-1114 | 1 | ||
| WASHER,PLAIN | 2 | 92022-250 | 2 | ||
| PIN-FOOTREST BAR FIT | 3 | 92043-080 | 2 | ||
| BRACKET FOOTREST BAR R.H. | 4 | 34003-051 | 1 | ||
| PIN COTTER 2.5X16 | 5 | 550D2516 | 2 | ||
| WASHER SPRING 14MM | 6 | 461F1400 | 2 | ||
| NUT,14MM | 7 | 314B1400 | 2 | ||
| BRACKET,FOTRST BAR,RH | 8 | 34003-052 | 1 | ||
| STEP-ASSY,FR,RH | 9 | 34027-1115 | 1 | ||
| BOLT,HEX HEAD 10X35 | 10 | 92001-1252 | 1 | ||
| SPRING-SIDE STAND | 11 | 34025-004 | 1 | ||
| STAND-SIDE | 12 | 34024-1043 | 1 | ||
| NUT,10MM | 13 | 314B1000 | 1 | ||
| PEDAL,BRAKE | 14 | 43001-058 | 1 | ||
| DAMPER RUBBER,BK PDL | 15 | 92075-220 | 1 | ||
| CIRCLIP,22MM | 16 | 480J2200 | 1 | ||
| SCREW PAN HEAD 5X8 | 17 | 220B0508 | 1 | ||
| WASHER SPRING 5MM | 18 | 461F0500 | 1 | ||
| PLATE | 19 | 43081-002 | 1 | ||
| SPRING BRAKE PEDAL | 20 | 43005-032 | 1 | ||
| COLLAR,BRAKE PEDAL | 21 | 92027-210 | 1 |
| STEP-ASSY,FR,LH | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-FOOTREST BAR FIT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET FOOTREST BAR R.H. | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.5X16 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 14MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FOTRST BAR,RH | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP-ASSY,FR,RH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD 10X35 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-SIDE STAND | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,BK PDL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X8 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING BRAKE PEDAL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BRAKE PEDAL | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
