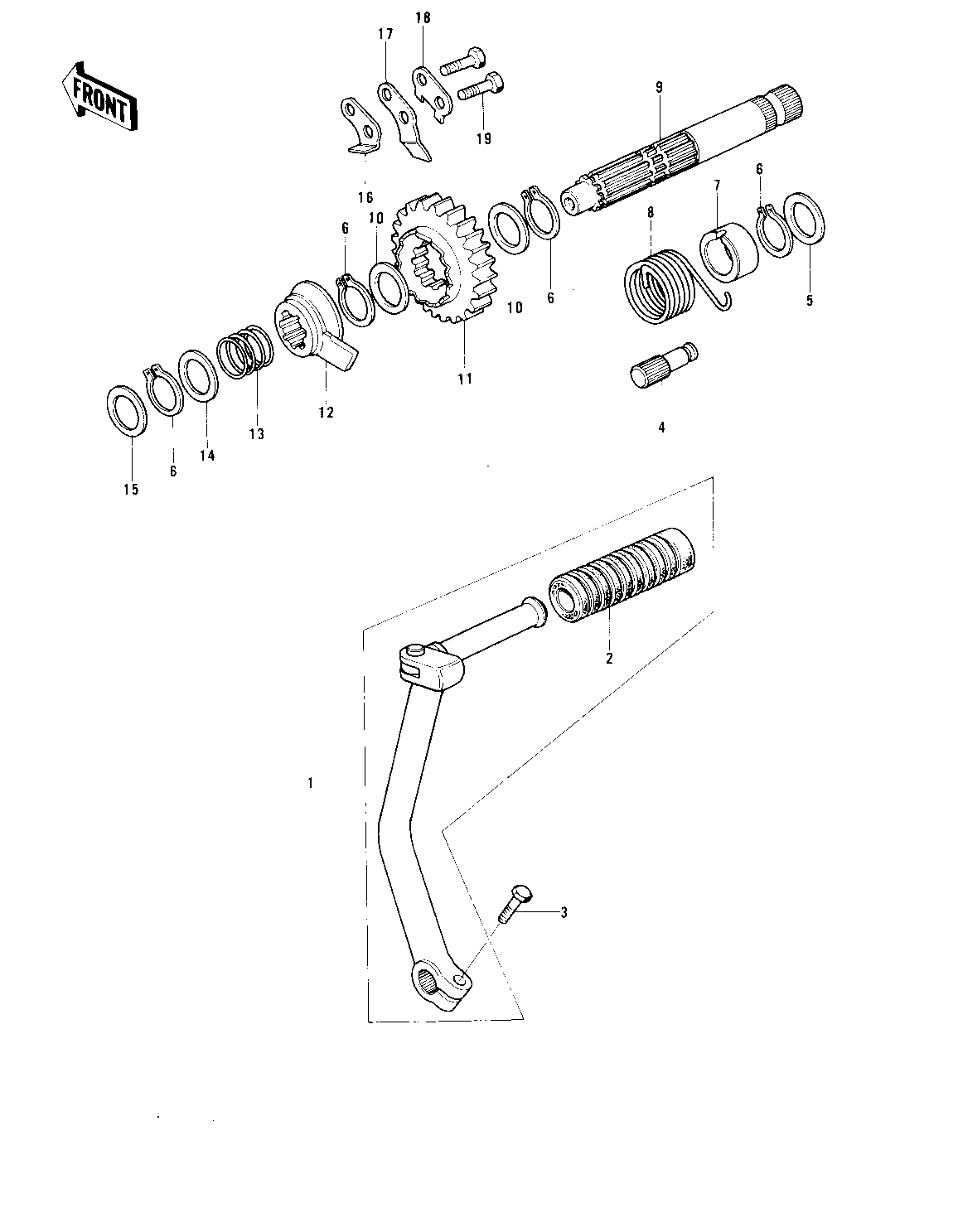

1974 KS125 - KICKSTARTER MECHANISM ('74-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,KICKSTARTER | 1 | 13064-019 | 1 | ||
| RUBBER KICK PEDAL | 2 | 13063-002 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 3 | 115G0825 | 1 | ||
| PIN | 4 | 92043-102 | 1 | ||
| WASHER,PLAIN | 5 | 92022-268 | 1 | I.D.=16.3,1.OT | |
| CIRCLIP 16MM | 6 | 480J1600 | 4 | ||
| GUIDE,KICKSPRING | 7 | 13070-008 | 1 | ||
| SPRING,KICKSTARTER | 8 | 92082-005 | 1 | ||
| SHAFT,KICKSTARTER | 9 | 13066-1012 | 1 | ||
| WASHER,PLAIN | 10 | 92022-315 | 2 | I.D=16.3, 0.5T | |
| KICK GEAR&RATCHET ASY | 11 | 13250-001 | 1 | 28T | |
| GEAR,KICKSTARTER | 11 | 13068-032 | 1 | USE WITH 13078-009 | |
| KICK GEAR&RATCHET ASY | 12 | 13250-001 | 1 | ||
| RATCHET,KL250-D2 | 12 | 13078-1052 | 1 | USE WITH 13068-032 | |
| SPRING,RATCHET | 13 | 92081-122 | 1 | ||
| WASHER-THRUST | 14 | 92022-197 | 1 | I.D=17.3 | |
| WASHER,PLAIN | 14 | 92022-315 | 1 | KS125A | |
| WASHER,PLAIN | 15 | 92022-269 | 1 | I.D=12.3 | |
| STOPPER,KICKSTARTER | 16 | 32085-1061 | 1 | ||
| GUIDE,KICKSTARTER | 17 | 13206-010 | 1 | ||
| WASHER,LOCK | 18 | 92024-054 | 1 | ||
| BOLT-UPSET | 19 | 112G0618 | 2 |
| PEDAL,KICKSTARTER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER KICK PEDAL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | I.D.=16.3,1.OT |
| CIRCLIP 16MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICKSPRING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,KICKSTARTER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | I.D=16.3, 0.5T |
| KICK GEAR&RATCHET ASY | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 28T |
| GEAR,KICKSTARTER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE WITH 13078-009 |
| KICK GEAR&RATCHET ASY | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,KL250-D2 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE WITH 13068-032 |
| SPRING,RATCHET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-THRUST | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | I.D=17.3 |
| WASHER,PLAIN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KS125A |
| WASHER,PLAIN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | I.D=12.3 |
| STOPPER,KICKSTARTER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICKSTARTER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
